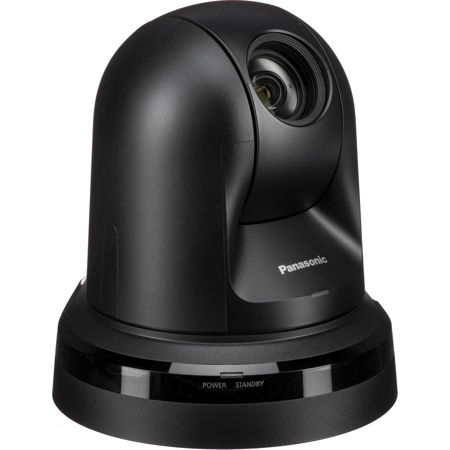

Panasonic AW-HE38H HD Professional 22x PTZ Camera, Black

Features 22x optical zoom lens and support for PoE+ for outstanding operability and installation flexibility

Full HD camera with integrated pan-tilt for lectures, meetings and a wide variety of applications.
The integrated full HD camera AW-HE38HW/HK performs in a wide variety of onsite shooting applications that require high-quality video, such as conferences, lecture capture and other events, thanks to its high-performance zoom, wide angle of view and outstanding color reproducibility. In addition to IP video transmission, support for PoE+ enables power to be supplied via a LAN cable. The result is installation flexibility. It also supports HD-IP video output, output of video and audio via USB, and SD card recording.

Developed 1/2.3-type MOS Sensor
Equipped with a developed 1/2.3-type MOS sensor and DSP (Digital Signal Processor) for high sensitivity and high resolution.

High Performance Optical 22x Zoom Lens/ Super Resolution 30x Zoom
In addition to a 22x optical zoom, the AW-HE38HW/HK can zoom up to 30x while maintaining high resolution thanks to Super Resolution technology. It also features a 16x digital zoom and a 1.4x digital extender, which enables the AW-HE38HW/HK to shoot in large conference halls and classrooms.

Equipped with High Dynamic Range (HDR) Mode
In addition to conventional Dynamic Range Stretch (DRS) and Digital Noise Reduction (DNR), the AW-HE38HW/HK is newly equipped with High Dynamic Range (HDR) mode. When shooting and synthesizing two images with differing exposure times, the AW-HE38HW/HK can create video with high visibility that corrects for halation and black defects even under backlit conditions.

Outputs Still Image During Preset Movements; Supports One-Camera Operations
The new Freeze During Preset function enables to freeze the video during preset playback. The immediately preceding still image is output during preset movements so that the swiveling movement is not displayed, making operations possible with one camera. With Freeze During Preset function OFF and ON

Audio Input Function
The AW-HE38HW/HK also supports audio input, embedding and encoding. Audio output to IP is also supported. The ALC (Audio Automatic Level Control) in the original AW-HE38HW/HK can be switched ON/OFF and an equalizer function can be used. By reducing low-frequency sound from air conditioners, projectors, and other devices, it is possible to emphasize and increase the clarity of the spoken words.

Supporting PoE+ for Lower Installation Costs
By connecting network devices that support the IEEE802.3at PoE+ standard, power can be supplied via LAN cable. Since it is not necessary to install a power supply or even a local AC outlet, installation costs can be significantly reduced.

Equipped with a JPEG Image Saving Function
The equipped JPEG Image Saving Function enables up to 99 still images (JPEGs) to be captured from video and saved to the microSD card. These images can easily be remotely saved, played back and deleted from a PC web browser connected via a LAN cable.

Flexible IP Control Architecture Simplifies System Design and Operation
Up to 100 x AW-HE38HW/HK cameras can be controlled via IP from a single AW-RP120G/RP50 or PC. An AW-HE38HW/HK can also be simultaneously controlled by up to five AW-RP120G/RP50's via IP.

Exceptional Pan-tilt Performance for Smooth Shooting Over a Wide Area
The pan range of +/-175 Degree and the tilt range of -30 Degree to +90 Degree cover a wide shooting area. Pan and tilt operate at a maximum speed of 90 Degree /second and respond quickly to remote control operation. They operate quietly at a sound level of NC35 or lower

Optional NDI HX Compatibility for Excellent Video Streaming Quality
The AW-HE38HW/HK can be upgraded to an NDI HX compatible model if purchasing a license from the NewTek website. Highly efficient NDI HX compatibility enables excellent broadcast streaming by encoding and transmitting high-quality video in real time. This technology eliminates the need for IP decoders, allowing input to be sent directly to the switcher.
