Panasonic AW-HE50H Specifications

  • Imaging Sensors

    1/3 type Full-HD MOS

  • Lens

    Motorized 18x zoom, f1.6 to 2.8 (f=4.7 to 84.6 mm,35 mm equivalent: 36.9 mm to 664.5 mm)

  • Focus

    Auto/Manual switchable

  • Horizontal Resolution

    850 TV Lines Typ (Centre area)

  • Minimum Illumination

    3 lx (50 IRE, F1.6, +36 dB)

  • S/N

    54 dB Typ

  • Gain Selection

    Auto,0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB

  • Storage Mode

    0 dB, 6 dB, 12 dB, 18 dB

  • Electronic Shutter Speed

    Step 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
    Syncro-scan 60.24 Hz to 646.21 Hz

  • Gamma

    Off, Normal (Low, Mid, High), Cinema

  • White Balance

    AWB A, AWB B, ATW

  • Chroma Amount Variability

    7 levels variability

  • Scene File

    Full Auto, Manual1, Manual2, Manual3

  • Color Bar

    FULL BAR

  • Output Format

    HD: 1080/59.94i, 720/59.94p SD: 480/59.94i

  • Video Output

    AW-HE50H: HDMI, HD/SD analog component, Composite

  • Interface

    LAN: 10BASE-T/100BASE-TX, IPv4 RJ45 x 1
    RS-422: AW-series protocol, plus selected third-party support

  • Synchronization System

    AW-HE50H: Internal synchronization

  • Rotation Range

    Pan: +/-175 deg., Tilt: +90 deg. to -30 deg.

  • Rotation Speed

    Max. 90 deg./s or more

  • Quietness

    NC35 (at normal speed), NC40 (at fastest speed when preset)

  • Power Supply / Power Consumption

    AW-HE50H: DC12 V +/-10 % (AC adapter provided), 1.2 A

  • Operating Temperature

    0 deg.C to 40 deg.C (32 deg.F to 104 deg.F)

  • Operating Humidity

    20 % to 90 % (no condensation)

  • Dimensions (WxHxD)

    6.3 x 7 x 6.5" (16 x 17.8 x 16.6 cm)

  • Weight

    3.1 lbs (1.4kg)

  • UPC Code

    885170019065

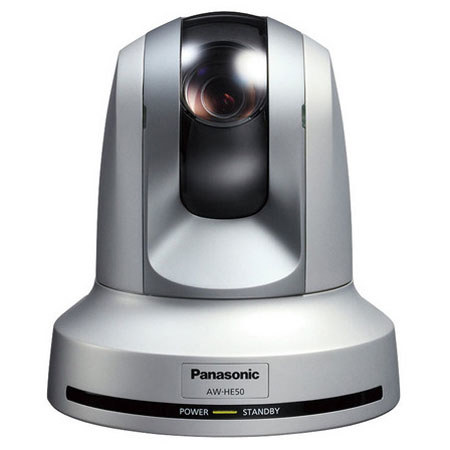

About Panasonic AW-HE50H

The Panasonic AW-HE50H HD Integrated PTZ Camera features a sleek, compact design that combines outstanding image quality, smooth pan/tilt/zoom operation and easy integration for superior HD and SD production and video communications. The AW-HE50H utilizes full HD MOS sensors (effective resolution 1920 x1080), Hybrid 2D/3D Noise Reduction processing, along with Panasonic's exclusive Dynamic Range Stretch (DRS) technology to produce smooth, sharp HD video with up to 850 lines of horizontal resolution in a wide range of lighting conditions and environments. Equipped with both IP and RS-422 serial control interfaces built-in, the AW-HE50H is ideal for demanding applications such as HD videoconferencing, distance learning and traffic or weathercam use.

Panasonic's exclusive DRS function enables the AW-HE50H to perform multi-zone digital image processing over a wide dynamic range for exceptional results in difficult, high contrast shooting conditions. Highlight over-saturation and blocking in dark areas are reduced for more detailed imaging through the application of real-time gamma and knee correction. The camera's innovative Hybrid Noise Reduction function reduces video grain and blur without appreciable image latency or loss of resolution by intelligently combining 3D and 2D noise reduction algorithms. A new "Flesh Tone" function also enables consistently accurate yet pleasing reproduction of live subjects.

The camera incorporates a smooth and highly-accurate pan-tilt head that offers precise, fast, fluid movement in all directions, enabling the capture of both slow and fast-moving objects without the excessive vibration and "bounce" previously associated with small pan-tilt cameras. The AW-HE50H also provides very quiet operation, essential for use in videoconferencing rooms; insert studios and houses of worship.

Panasonic AW-HE50H Features

  • Over 850 lines of horizontal resolution and 54db S/N for production quality HD video
  • Supports 1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 480/59.94i and 576/50i
  • Full HD CMOS imager and new DSP produce realistic video in varied lighting conditions
  • 18X HD optical zoom lens plus a 10X digital zoom for use in rooms of all sizes
  • Three-step gamma correction and seven-step chroma level adjustment for exceptional creative control
  • Up to 100 pre-set memories can be stored in the camera unit, for rapid and precise remote recall
  • An electronic shutter (1/100 to 1/10,000 a sec) with synchro scan
  • Built-in tally light for remote studio use
  • 3.5-lb design, ceiling mounting bracket and simple turn-lock mounting mechanism for quick, easy installation
  • Supports both IP and AW-series RS-422 serial control, as well as 3rd party serial control systems

Key Features

  • Built-in tally light for remote studio use

What's in the box:

  • Panasonic AW-HE50H HD Integrated PTZ Camera
  • Mounting Brackets (2)
  • Mounting Screws
  • AC Adaptor
  • Power Cable
  • Cable Cover
  • Panasonic 1 Year Warranty
