Panasonic AW-RP655N Multi-Function Remote Control Panel
See all Panasonic items

Panasonic AW-RP655N Multi-Function Remote Control Panel

SKU: PCAWRP655N
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Panasonic AW-RP655N Specifications

  • Power supply

    DC 10.8 V to DC 16 V

  • Power consumption

    9.0 W

  • Ambient operating temperature

    14deg.F to 122deg.F (-10deg.C to +50deg.C)

  • Storage temperature

    -4deg.F to +140deg.F (-20deg.C to +60deg.C)

  • Ambient operating humidity

    30% to 90% (no condensation)

  • Pan/tilt heads supported

    AW-PH300, AW-PH300A, AW-PH350, AW-PH360, AW-PH500, AW-PH600, AW-PH650

  • Cameras supported

    AW-E300, AW-E300A, AW-E600, AW-E800, AW-E800A, AW-E350, AW-E650, AW-E655, AW-E750, AW-E860

  • Input connectors

    DC 12V IN socket: XLR, 4 pins
    To Control Panel [In/Out] connectors: RJ45 (1 each)
    Connecting cable: 10BASE-T straight cables (UTP category 5),max. 3,280 feet (1,000 meters)
    Incom / Tally: D-SUB, 15-pin
    Remote / Service: RS-232C

  • Control Out To Pan/Tilt Head connectors

    RJ45 a5, control signal output for pan/tilt heads
    Connecting cable: 10BASE-T straight cables (UTP category 5), max. 3,280 feet (1,000 meters)

  • Monitor Select Connector

    RJ45
    Connecting Cable: 10BASE-T straight cables (UTP category 5),max. 164 feet (50 meters)

  • Dimensions (W x H x D)

    16.56 x 2.06 x 8.68" / 420.62 x 52.32 x 220.47mm

  • Weight

    7.48 lbs / 3.39kg

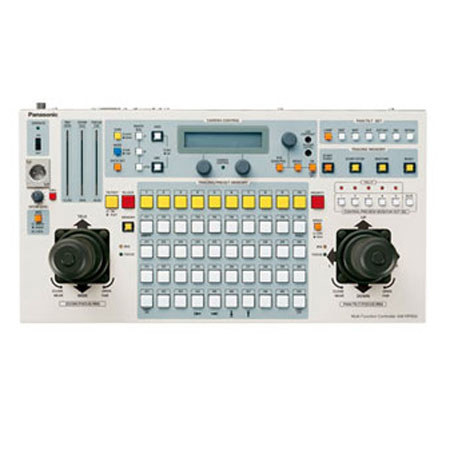

About Panasonic AW-RP655N

The Panasonic AW-RP655N is a multi-Function Remote Control Panel designed to be used with a convertible camera (such as the AW-E650 or AW-E350). Remote operations such as the camera settings, pan and tilt and adjustments can be performed by remote control. This device offers control over multiple remote cameras via Ethernet connectivity.

Panasonic AW-RP655N Features

  • CCU Functionality: This remote control device features controls used in studio camera control units. Such functions as specific video parameter adjustments along with studio timing control allow the user to fully utilize the convertible camera series assets
  • Multiple Unit Control: This device can control up to four camera and pan and tilt systems from one location using Ethernet connectivity
  • Pan and Tilt: This control panel remotely operates pan and tilt functionality of multiple units using selection button and joystick controls
  • Presets: This device offers numerous preset opportunities for the operator

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Presets: This device offers numerous preset opportunities

What's in the box:

  • Panasonic AW-RP655N Multi-Function Remote Control Panel
  • Rack mounting Adaptors (2)
  • Mounting screws (4)
  • Panasonic 1 Year Warranty
