Panasonic AW-UE100 Specifications

Camera Unit

Camera Unit

Jump to...
  • Image Sensor

    1/2.5-type 4K MOS x 1

  • Lens

    Electric powered 24x optical zoom F1.8 to F4.0 (f = 4.12 mm to 98.9 mm, converted to 35 mm: 25.0 mm to 600.0 mm)
    i.Zoom (UHD: 28x, FHD: 36x) (switches from optical 24x i.Zoom digital zoom)

  • Field of View Range

    Horizontal field of view: 74.1 Degree (wide) to 3.3 Degree (tele), vertical field of view: 46.0 Degree (wide) to 1.9 Degree (tele)
    Diagonal field of view: 81.8 Degree (wide) to 3.8 Degree (tele)

  • Horizontal Resolution

    1,400 TV lines Typ (center area)

  • Output Formats

    [4K formats] 2160/59.94p, 2160/50p, 2160/29.97p (native), 2160/25p (native), 2160/24p (native), 2160/23.98p (native)
    [HD formats] 1080/59.94p, 1080/50p, 1080/29.97p (native), 1080/29.97PsF, 1080/25p (native), 1080/25PsF, 1080/23.98p over 59.94i, 1080/24p (native), 1080/23.98p (native), 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p

  • HDMI

    HDMI 2.0 connector
    4:2:2/10 bit

  • 12G-SDI OUT

    SMPTE2082-1, SMPTE292 compliant/75 Ohm (BNC x 1)

  • 3G-SDI OUT

    SMPTE292/75 Ohm (BNC x 1)

Input/Output

Jump to...
  • LAN

    LAN for IP control and video transmission/PoE++ terminal (RJ-45)

  • RS-422

    CONTROL IN RS422A (RJ-45)

  • Mic/Line Input

    Supported (SDI/HDMI/IP), AAC compatible (IP only) 3.5 mm stereo mini jack
    For mic input, input level: -40 dBV (0 dB = 1 V/Pa, 1 kHz) plug-in power compatible, supply voltage: 2.5 V +/-0.5 V
    For line input, input level: -10 dBV
    Input volume variable range: -36 dB to 12 dB (3 dB step)
    embedded audio output level: -12 dBFS
    Sampling frequency: 48 kHz
    Quantified bit count: 24bit (SDI, HDMI), 16bit (IP)

Pan Tilt Head Unit

Jump to...
  • Panning Range

    +/-175 Degree

  • Tilting Range

    -30 Degree to 210 Degree

IP Streaming

Jump to...
  • Resolution

    3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180

New Function

Jump to...
  • Mechanical Pan/Tilt

    Direct Drive system

General

Jump to...
  • Power Requirements

    Main unit: DC 12 V +/-10% (10.8 V to 13.2 V), AC adapter: AC 100 V to 240 V

  • PoE++

    Complies with IEEE802.3bt: DC 42 V to 57 V (camera end) (supports software authentication (LLDP communication))

  • Current Consumption

    Main unit: 3.0 A (DC jack input), 1.2 A (PoE++ power supply), AC adapter (included): 3.0 A

  • Dimensions

    6.66 x 6.72 x 8.06" (169.2 x 170.6 x 204.6mm) (excluding protrusions, cable cover, and direct ceiling mount bracket)

  • Weight

    Approx. 4.85 lbs (2.2kg) (excluding cable cover, direct ceiling mount bracket)
    Approx. 5.07 lbs (2.3kg) (excluding direct ceiling mount bracket)

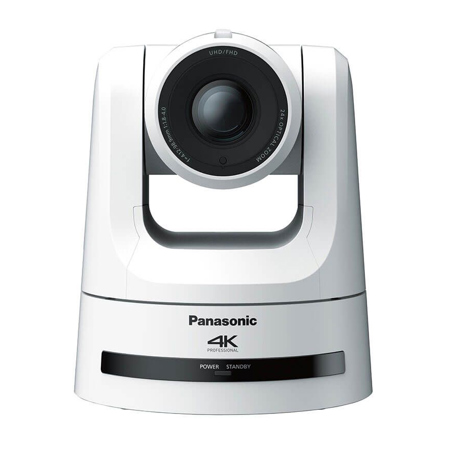

About Panasonic AW-UE100

First 4K 60p/50p PTZ Camera supporting NDI and SRT in the world
Supports high bandwidth NDI for low latency transmission of high-quality 4K 60p/50p video, and SRT for high-quality and stable transmission, and also compatible with 12G-SDI output for use in a wide range of situations, from live streaming of events to studio production.

Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT
THigh bandwidth NDI that can transmit 4K video at speeds of up to 250 Mbps and full HD video up to 100 Mbps is included to provide high-quality low latency live video transmission with a single LAN cable. High efficiency low bandwidth NDI|HX is also included to enable video transmission at low bitrates. SRT is also supported to maintain stability while transmitting high-quality video, even in unstable network environments. RTMP/RTMPS provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera.

Supports 4K 60p/50p shooting and 12G-SDI output
Supports 4K 60p/50p video at 3840 x 2160 to provide smooth and high-quality shooting of moving images, and a wide variety of output interfaces such as 12G-SDI, 3G-SDI, HDMI, and IP.

Includes a wide-angle lens with a 74.1 Degree field of view and 24x optical zoom
A wide angle lens with a horizontal angle of view of 74.1 degrees enables a wide area to be shot from a limited installation space, and 24x optical zoom maintains high image quality at high zoom ratios. This allows shooting in large indoor spaces.

Supports FreeD for building AR/VR systems
FreeD command output enables connection with AR/VR systems. This allows the camera tracking information (pan/tilt/zoom/focus/iris) to be output together with a synchronization signal to easily build systems without an encoder.

Adopts new mechanical pan/tilt for improved responsiveness and quietness
The inclusion of a Direct Drive mechanism improves the responsiveness of pan/tilt and quietness during pan/tilt operations. In addition to Optical Image Stabilization (OIS), Electronic Image Stabilization (EIS) has been added for the roll direction. This provides stable video shooting even at locations utilizing robotics and rail systems, etc.

Panasonic AW-UE100 Features

  • First 4K 60p/50p PTZ Camera supporting NDI and SRT in the world
  • Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT
  • Supports 4K 60p/50p shooting and 12G-SDI output
  • Includes a wide-angle lens with a 74.1 Degree field of view and 24x optical zoom
  • Supports FreeD for building AR/VR systems
  • Adopts new mechanical pan/tilt for improved responsiveness and quietness

Product Documents

User Manual

Key Features

  • First 4K 60p/50p PTZ Camera supporting NDI and SRT in the world
  • Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT
  • Supports 4K 60p/50p shooting and 12G-SDI output
  • Includes a wide-angle lens with a 74.1 Degree field of view and 24x optical zoom
  • Supports FreeD for building AR/VR systems
  • Adopts new mechanical pan/tilt for improved responsiveness and quietness

What's in the box:

  • AW-UE100 4K Professional Integrated PTZ Camera (White)
  • AC Adapter
  • Panasonic 1 Year Limited Warranty
