Review Summary
DC 12 V +/- 10 % (10.8 V to 13.2 V ) (Supplied AC adapter)
IEEE 802.3 at compliant: DC42-57 V
1.8 A (AC adapter input)
0.6 A (PoE+ power supply)
approx. 8.49 million pixels
1/2.5-type MOS x1
F1.8 - F3.9 (f = 4.12 mm - 82.4 mm, 35 mm conversion : 25.0 - 500.0 mm)
Optical zoom: 20 x
UHD 23x, FHD 30x
Horizontal angle of view: 74.1 (wide) to 4.0 (tele)
Vertical angle of view: 46.0 (wide) to 2.2 (tele)
Diagonal angle of view: 81.8 (wide) to 4.5 (tele)
UHD: 1,500 Type (Center area)
FHD: 1,000 Type (Center area)
HDMI/4K: 2160 / 29.97p (Native)
2160 / 25p (Native)
2160 / 24p (Just)
2160 / 23.98(Native)
HD
1080/59.94p
50p
1080/59.94i
50i
1080/29.97p(Native)
25p(Native)
23.98p(over59.94p)
1080/24p(Just)
23.98p (Native)
720/59.94p
50p
HDMI: Video Output HDMI 1.4 connector, 4:2:2 / 10 bit
LAN: LAN terminal for IP control (RJ-45)
RS-422: CONTROL IN RS422A (RJ-45)
USB: USB2.0 DEVICE
Type C connector
No USB bus power functionality
UVC (USB Video Class) support only (UVC1.0, UAC1.0)
MIC/LINE input: AAC compatibility (compatible with IP only)
3.5 mm stereo mini jack
During MIC input: Input level: -40 dBV (0 dB = 1 V / Pa, 1 kHz),
Supply voltage: 2.5 V +/- 0.5 V (plug-in power compatible)
During LINE input: Input level: -10 dBV
+/- 175 Degree
-30 Degree - 90 Degree
JPEG (MJPEG), H.264, H.265
1920 x 1080
1280 x 720
640 x 360
320 x 180
H.264: Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Frame rate: [At 60Hz] 5fps / 15fps / 30 fps / 60 fps , [At 50Hz] 5 fps / 12.5 fps / 25 fps / 50 fps
Max Bit Rate: 512 kbps / 768 kbps / 1024 kbps / 1536 kbps / 2048 kbps / 3072 kbps / 4096 kbps /6144 kbps / 8192 kbps / 10240 kbps / 12288 kbps / 14336 kbps / 16384 kbps / 20480 kbps / 24576 kbps
H.265: Transmission Type: Unicast port(AUTO), Unicast port (MANUAL), Multicast port
Frame rate: [At 60Hz] 30 fps / 60 fps [At 50Hz] 25 fps / 50 fps
Max Bit Rate: Same specifications as H.264
Black
NTSC
Japan
Excluding Protrusions, Cable Cover, Ceiling Mounting Bracket: 6.29 x 7.56 x 6.53" (160 x 192.1 x 166mm)
Excluding Ceiling Mounting Bracket: 3.97 lbs (1.8kg)
885170450295

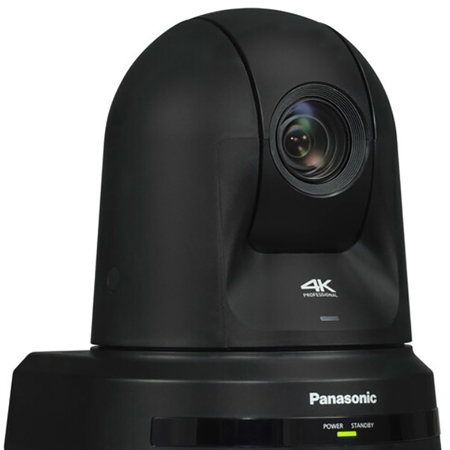

Featuring 4K resolution, horizontal wide-angle coverage of up to 74.1 Degree and a maximum 20x optical zoom the AW-UE30 PTZ camera offers enhanced video streaming with 4K/30p images to make remote participants feel as if they are present in person. And the compact design and quiet operation ensures it won't interfere with the in-person experience. The AW-UE30 also supports easy and efficient operation for professors and corporate presenters who don't have extensive production experience. It can even be used within an existing USB-based system
Built-in Auto-Tracking
The AW-UE30 now has the ability to track one-person at a time, within frame, without an external PC or server. This auto-tracking feature has quick response times and accurate human body recognition - perfect for corporations, colleges/universities, and other facilities that rely on presentation spaces. Panasonic Connect also offers external, software-based auto-tracking ideal for presentations with multiple people and cameras.
Camera performance and functions assure high-quality video streaming.
Featuring 4K resolution, horizontal wide-angle coverage of up to 74.1 Degree and a maximum 20x optical zoom, the UE30 maintains superb quality and functionality for video streaming. The built-in auto tracking function and image stabilizer function contribute to stable video streaming
Small size, quietness and stability for use anywhere.
The UE30 are lightweight and compact. The new direct-drive motor with an operating sound of NC25 or lower achieves highly accurate stopping position precision and enables accurate camerawork. They can be installed and used at any video shooting site.
Excellent system flexibility to achieve smart wiring and smooth operation.
By using a Panasonic remote camera controller or linking with available software, the camera can be easily installed, managed and operated. The UE30 is suitable for replacing an existing camera or for expanding your current system.
Invaluable features and functions to deliver flexibility to any video shooting needs
Supports SRT to ensure stable video streaming
UE30 supports SRT, a next-generation video transport protocol that provides robust security and works well, even with an unstable network environment.
Use in online conferences as web camera
The UE30 supports UVC so the video and audio signals can be transmitted over USB. By using the PTZ Virtual USB Driver software and connecting with a LAN cable, it is possible to use the UE30 as a USB camera. This can also be linked with Panopto. With Zoom certification and a dedicated mode (USB: Video Conference).
Built-in auto tracking function
The UE30's built-in auto-tracking function allows capturing a moving presenter and speaker. The camera work follows the speaker without the need for detailed operation by the operator, allowing for realistic video shooting at any time.
Supports 4 interfaces
The UE30 supports four output interfaces-HDMI, IP and USB-so it can be used with a wide range of devices
Other features
Unit design makes the lens unnoticeable
Equipped with Privacy Mode which positions the lens
toward the back when on standby
Equipped with Optical Image Stabilizer(OIS)
Web GUI for camera control
