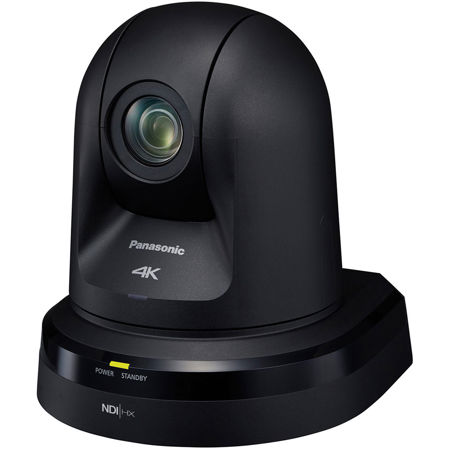

Panasonic AW-UN70K 20x 4K PTZ Camera with NDI, Black

SKU: PCAWUN70KPJ

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Panasonic AW-UN70K Specifications

Camera
  • Color

    Black

  • Image Sensor

    1/2.3 MOS

  • Lens

    Optical 20x zoom, f 4.08 to 81.6mm/F1.8 to 3.6

  • Horizontal Resolution

    1300 TVL (type) (Wide, Center) (4K mode)
    1000 TVL (type) (Wide, Center) (HD)

Input/Output

Jump to...
  • Power

    12 VDC IN, PoE+ (IEEE802.3at standard)

  • Audio Input

    MIC/LINE (Embedded in SDI/HDMI/IP/USB)

  • Video Output

    HDMI/SDI/USB

  • Interface

    LAN/RS-232C/RS-422 remote control

  • Output Formats

    SDI/HDMI:
    2160/29.97, 25p (HDMI only), 1080/59.94p, 50p, 59.94i, 50i, 1080/29.97p, 25p, 1080/29.97psF, 25psF, 720/59.94p, 50p

    USB:
    3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360 (M-JPEG) (59.94 Hz) 30p/15p/5p (50 Hz) 25p/12.5p/5p, 3840 x 2160 is 5p

Functions

Jump to...
  • Panning Range

    +/- 175 Degree

  • Tilting Range

    -30 Dgree to 90 Degree

  • Image Resolution

    3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180 (59.94 Hz) 60p/30p/15p/5p (50 Hz) 50p/25p/12.5p/5p
    M-JPEG: 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180 (59.94Hz) 30p/15p/5p (50Hz) 25p/12.5p/5p

  • Supported Protocols

    IPv4: TCP/IP, UDP/IP, HTTP, DHCP, DNS

  • Supported Protocols

    IPv4: TCP/IP, UDP/IP, HTTP, DHCP, DNS

General

Jump to...
  • Power Requirements

    12 VDC (supplied AC adapter)
    42 to 57 VDC (PoE+ power supply)

  • Current Consumption

    1.3 A (supplied AC adapter)
    0.5 A (PoE+ power supply)

  • Dimensions

    7.31 x 7.32 x 7.04" (16.0 x 18.6 x 17.9cm) excluding protrusions, direct ceiling mount bracket

  • Weight

    Approximately 3.30 lb (1.5kg)

  • UPC Code

    885170330924

About Panasonic AW-UN70K

The AW-UN70 4K 20x PTZ Camera with NDI Output (Black) from Panasonic is a fully integrated robotic camera with IP-based live production delivering full HD video directly to NDI-compatible systems, devices, and applications such as NewTek TriCaster, NewTek s IP Series, Livestream Studio, OBS, Streamstar, WireCast, vMix, Panasonic AV-HLC100 NDI Switcher, and all other NDI 2.0 or higher enable products. Using POE+ technology with just a single RJ-45 cable, the camera can output Video/Audio, Control, Power, and Tally across your existing network infrastructure.

NDI version 3 has dramatically improved on an already simple workflow with SDK enhancements that improve encoding performance, multicast support with FEC (Forward Error Correction), standardized PTZ control commands and tally, and the addition of the High Efficiency Mode, NDI/HX, which allows hardware converters and cameras to enter the NDI world.

Panasonic AW-UN70K Features

  • NDI Output via LAN
  • NDI / HX (NDI Version 3)
  • 1/2.3" Type MOS Sensor
  • 4K UHD / HD Resolution
  • Powers via POE+
  • 20x Optical Zoom Lens
  • Pan/Tilt Speed of 90 Degree /sec
  • +/-175 Degree Pan Range
  • -30 to 90 Degree Tilt Range

Product Documents

User Manual

Key Features

  • NDI Output via LAN
  • NDI / HX (NDI Version 3)
  • 1/2.3" Type MOS Sensor
  • 4K UHD / HD Resolution
  • Powers via POE+
  • 20x Optical Zoom Lens
