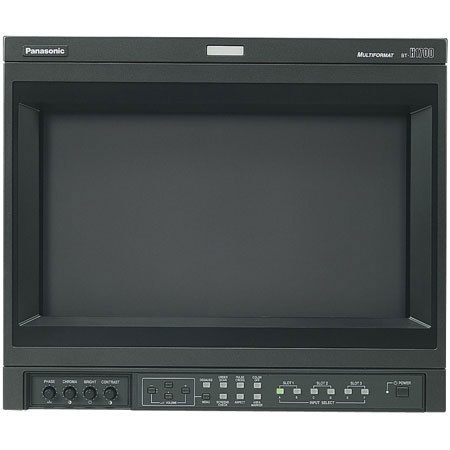

Panasonic BT-H1700 17" BT Series CRT Multi-Format Color Video Monitor

The Panasonic BT-H1700B's front panel controls allow for quick, convenient set up and operation, including push button selection of the various inputs. In addition, the on-screen, easy-to-operate menu provides for quick access to the monitor's many other features including aspect ratio selection, various color temperature settings, white balance adjustment, and more.

Memory storage and instant recall provide added installation flexibility. Additionally, the BT-H1700B features remote control for tally lamp, Input Select, Color Off, Area Marker, Aspect Change over, and Underscan, all through RS-232C and GPI I/F.

The BT-H1700B provides three (3) card slots that can accommodate up to three optional input modules. These modules include Composite Video or Y/C, Analog Component RGB, SD-SDI, and HD-SDI.

By selecting various optional card combinations, the monitor can be configured for an extremely wide variety of applications from NTSC composite to standard 601 applications to true high definition installations.

The optional rack mount allows for an installations in small OB vans; QC stations in equipment rooms; as a preview monitor associated with NTSC, SD, or HD routing systems; and non-linear edit monitoring.

Specifications:
• Power Requirements: 100-230 V+/-10% AC, 50 Hz/60 Hz
• Power Consumption: 100 V: 1.8 A (Max. 2.3 A, including input cards) 120 V: 1.56 A (Max. 1.85 A, including input cards) 230 V: 0.9 A (Max. 1.0 A, including input cards)
• Compliant Video Signal: NTSC (3.58 MHz), PAL (4.43 MHz) , 480i, 576i, 480p, 1080i (60 Hz/24pSF), 720p
• CRT: 17" (16"V) in-line gun, AG pitch 0.25 mm, Natural Flat CRT
• Scanning Frequency: H: 15.625/15.734/27.125/28.125/31.5/33.75/45 KHz V: 48 (24psf)/50/59.94/60 Hz@
• Horizontal Resolution: Composite: more than 400 TV lines (center) Component: more than 800 TV lines (center) RGB: more than 800 TV lines (center)
• Color Temperature: 6,500°K/9,300°K selectable
• Video Input: 3 slots for optional input cards
• Audio Input: Video input card incorporate audio input
• Audio Output: Max. 1 W (at 500 mV input, 10% of distortion) • Built-In Speaker: 3-3/16" (8cm) round
• Remote Terminal: RS-232C: D-sub 9-pin • Contact Closure: D-sub 15-pin
• Dimensions (WxHxD): 15-9/16" x 13-3/16" x 18-3/8" (395 x 334 x 467 mm)
• Weight: 51.8 lbs. (23.5 kg)
• Accessory: AC power cord
