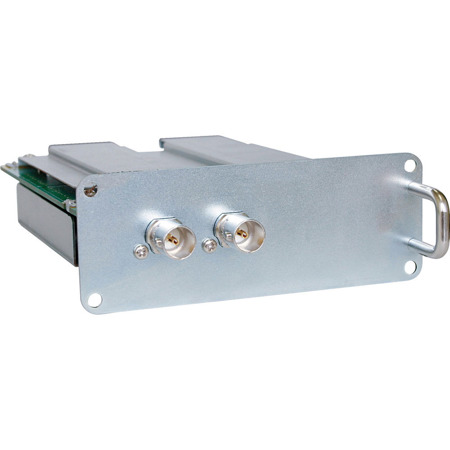

Panasonic Dual HD-SDI Terminal Board for 3D
See all Panasonic items

Panasonic Dual HD-SDI Terminal Board for 3D

SKU: PCFB30DHD3D MFR: TYFB30DHD3D
Be the first to review this itemAsk a Question
$3,000.00
$3,300.00
Save: $300 (9%)
OR
$250/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Enhance your Panasonic display with this Dual HD-SDI terminal board for superior quality.
  • Achieve seamless 3D video integration using simultaneous, side-by-side, or top-bottom signals.
  • Supports SMPTE292M and SMPTE372M HD-SDI standards, ensuring compatibility and reliable connectivity.
  • Use high-quality 75Ohms coaxial cable for optimal HD-SDI signal transmission up to 328 feet.
  • Easily install this compact I/O module (4.1 x 1.5 x 5.9") to expand your video input options.
  • Enjoy a 1-year Panasonic warranty, providing peace of mind with your HD-SDI terminal board.
See More Product Details
Special Order?Estimated to Ship: 09/05/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$399.99

3 Year

$599.99

4 Year

$699.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Panasonic HD-SDI Terminal Board Specifications

  • Input Terminal

    HD-SDI IN (A): 1x BNC (HD-SDI/ Dual Link HD-SDI A/ 3D SDI left channel)
    HD-SDI IN (B): 1x BNC (Dual Link HD-SDI B/ 3D SDI right channel)

  • Standard

    HD-SDI: SMPTE292M
    Dual Link HD-SDI: SMPTE372M
    Audio:SMPTE299M

  • Signals Supported

    Compatible 3D Signal: Simultaneous/ Side by Side/ Top and Bottom

  • Recommended cable

    75Ohms coaxial cable 5C-FB

  • Maximum Length

    328.08' / 100.00m (when using a cable with a length of less than 328.08' (100 m) and an attenuation of 20 dB at 750 MHz)

  • Dimensions (W x H x D)

    4.1 x 1.5 x 5.9" / 104.14 x 38.10 x 149.86mm

  • Weight

    Approximately 0.55lbs / 0.25kg

  • UPC Code

    037988159864

About Panasonic HD-SDI Terminal Board

The HD-SDI simultaneous input system allows 3D images to be transmitted in broadcasting and image production workflows. Left-eye and right-eye image signals are sent through a single coaxial cable.

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Enhance your Panasonic display with this Dual HD-SDI terminal board for superior quality.
  • Achieve seamless 3D video integration using simultaneous, side-by-side, or top-bottom signals.
  • Supports SMPTE292M and SMPTE372M HD-SDI standards, ensuring compatibility and reliable connectivity.
  • Use high-quality 75Ohms coaxial cable for optimal HD-SDI signal transmission up to 328 feet.
  • Easily install this compact I/O module (4.1 x 1.5 x 5.9") to expand your video input options.
  • Enjoy a 1-year Panasonic warranty, providing peace of mind with your HD-SDI terminal board.

What's in the box:

  • Panasonic Dual HD-SDI Terminal Board
  • 4x Screws
  • Terminal Function Label (1 Sheet)
  • Operating Instructions
  • Panasonic 1 Year Warranty
