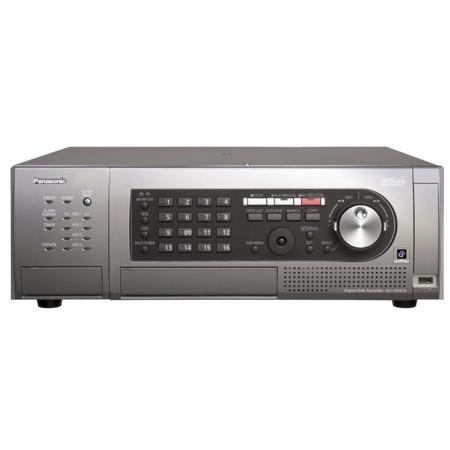

Panasonic WJ-HD616 16-Channel H.264 Digital Video Recorder with 3TB HDD, RAID5, 6

• H.264 (High profile) codec with "UniPhier" Panasonic's proprietary System LSI platform provides high quality and high compression encoding simultaneously.
• 16 analog video inputs including 16 (WJ-HD716) / 8 (WJ-HD616) Panasonic coax. camera control inputs and 4 audio inputs
• Real-time recording (WJ-HD716 only): 480/400 ips (Field), 240/200 ips (Frame) (NTSC/PAL)
• Live/Playback monitor out (HDMI, BNC) and Live monitor out (HDMI, BNC)
• 2x HDMI interfaces supporting dual 1080i (1,920 x 1,080) display
• Up to 960/800 ips at 16ch 2x monitors real-time live (NTSC/PAL)
• Various Display Modes: 4 / 7 / 8 / 9 / 12 / 16 split screen display
• SD5Link (Super Dynamic 5 Link) capability with i-VMD (intelligentVideo Motion Detection) alarm provides disk saving and easy search.
• Up to 5 recorders can be integrated in cascade connection mode for up to 80 cameras.
• Equipped with 4 HDD slots accessible from front panel
• DVD drive (optional) and SD/SDHC memory card slot for easy copy of recorded image data
• HDD capacity is expandable up to 31 HDDs (4 HDD slots in the main unit and 3 optional WJ-HDE400 Hard Disk Extension Units each with 9 HDD slots)
• RAID5/6 redundant recording with optional WJ-HDB601 RAID Board
• Up to 4 optional WV-CU650 system controllers can be connected by PS Data
• Easy operation with GUI and USB mouse Remote monitoring available from Internet Explorer and WV-ASM100
• Remote monitoring available from Internet Explorer and WV-ASM100
• H.264 image transfer at QVGA resolution for narrow network bandwidth
• Setup data of WJ-HD716/WJ-HD616 can be downloaded and uploaded with SD/SDHC memory card
• User/Host authentication (Up to 32 user registrations)
• Up to 8 users can operate via network simultaneously.
• Excellent maintenance capability: Front HDD exchangeability, Front maintenance network port
