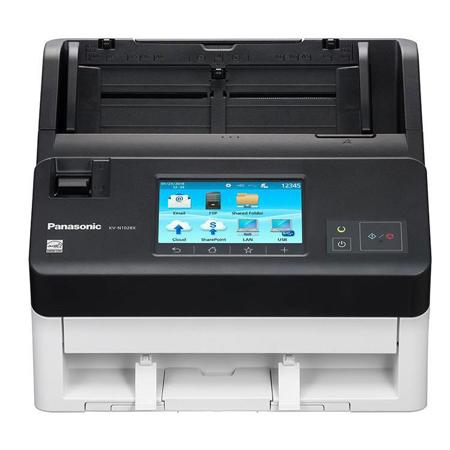

Panasonic KV-N1028X Network Wireless Color Document Duplex Scanner, 45ppm
See all Panasonic items

Panasonic KV-N1028X Network Wireless Color Document Duplex Scanner, 45ppm

SKU: PCKVN1028X

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Panasonic KV-N1028X Specifications

  • Scanning Face

    Simplex/Duplex

  • Scanning Method

    1 line Color CIS (300 dpi/600 dpi), Black or White Background

  • Scanning Resolution

    100 - 600 dpi (1 dpi step) and 1,200 dpi (interpolated)
    Optical: 300 dpi / 600 dpi (Automatic switch)

  • Scanning Speed

    Simplex: Up to 45 ppm, Duplex: Up to 90 ipm (Binary/Color, A4/Portrait, 200/300 dpi)

  • Output Methods

    Scan to Email, Scan to FTP, Scan to Shared Folder, Scan to Cloud, Scan to SharePoint, Scan to PC

  • Double-Feed Detection

    Ultrasonic (The length of documents that can be detected is 70 mm (2.8") or more)

  • Image Compression

    MH, MMR , JPEG, JPEG2000

  • Image Output

    Binary, Grayscale (8bit), color (24bit), Multistream

  • Binary Mode Halftone

    Dither, Error Diffusion

  • Image Control

    Auto Preview, Auto Rescan, Automatic Brightness Adjustment, Multi Color Drop Out, Dynamic Threshold, White Level From Paper, Image Emphasis Gamma, Automatic Separation, Noise Reduction

  • Other Functions

    Length Control, Barcode Detection, Patchcode Detection (Type 2, 3, T), Control Sheet Detection, Long Paper, Double Feed Skip

  • Documents

    Width: 48mm - 216mm (1.9" - 8.5")
    Length: Automatic feeding: 54mm - 356mm (2.1" - 14")
    Manual feeding: 54mm - unlimited (2.1" - unlimited)
    Thickness: Paper 0.04mm- 0.5mm (1.6 mils. - 19.7 mils.)
    Passport 4.0 mm (157.5 mils.) (including carrier sheet)
    Note: 1 mil = 0.001"
    Weight: 20 g/m2 - 413 g/m2 (5 lbs - 110 lbs)

  • Card

    Format: ISO format
    Size: 85.6mm x 54mm (3.4 x 2.1")
    Thickness: 0.76mm (0.03"), Embossed card up to 1.4 mm (55.1 mils)

  • Feed Tray Capacity

    100 sheets: 80 g/m2 (21lbs) High-quality woodfree paper

  • Supported Operating System

    Windows Vista SP2 (32 bit/64 bit), Windows 7 (32 bit/64 bit), Windows 8 (32 bit/64 bit), Windows 8.1 (32 bit/64 bit), Windows 10 (32 bit/64 bit), Windows Server 2003 SP2 (32 bit/64 bit), Windows Server 2003 R2 SP2 (32 bit/64 bit), Windows Server 2008 SP2 (32 bit/64 bit), Windows Server 2008 R2 SP1 (64 bit), Windows Server 2012 (64 bit), Windows Server 2016 (64 bit)

  • Recommended Web Browser

    Internet Explorer 11, Mozilla Firefox (latest version), Google Chrome (latest version)

  • Interface

    USB 3.1 Gen1 (backward compatible)
    LAN (10Base-T / 100Base-TX / 1000Base-T)
    Wireless LAN (IEEE802.11n/g/b)

  • Wireless LAN

    Communication standard: IEEE802.11n/g/b
    Frequency range (center frequency)/Channel - M: 2.412GHz - 2.462GHz (1 - 11ch)

  • Power Requirement

    AC 100 - 127 V, 50/60 Hz, 0.8 A
    AC 220 - 240 V, 50/60 Hz, 0.4 A

  • Power Consumption

    Maximum (Scanning): 36W or less
    Minimum (Ready): 10W or less
    Sleep: 2W or less (USB connection), 2W or less (Wired LAN Connection), 2W or less (Wireless LAN Connection)
    Power off: AC 100 V - 127 V: 0.3 W or less, AC 220 V - 240 V: 0.5 W or less

  • Operating Environment

    Temperature: 5 to 35 deg. C (41 to 95 deg. F)
    Humidity: 20 - 80% RH

  • Storage Environment

    Temperature: -10 to 50 deg. C (14 to 122 deg. F)
    Humidity: 8 - 75% RH

  • Dimensions (WxDxH)

    External: 300 x 272 x 238mm (11.81 x 10.71 x 9.37") (When the exit tray is closed)

  • Weight

    4.1kg (9.04 lbs)

  • UPC Code

    885170312876

About Panasonic KV-N1028X

A high-productivity scanner with an easy-to-operate 5" touchscreen.

Network connectivity
The KV-N1028X is one of three scanners in Panasonic's new network scanner lineup. All scanners in this lineup offer Gigabit Ethernet connections and Wireless LAN capabilities, to help you save time and speed up your document management processes. Enjoy the ease of scanning from a PC with no USB connection required, to a mobile device or directly from the KV-N1028X.

Intuitive 5" color touchscreen
The 5" LCD color touchscreen was designed with you in mind. The large, easy-to-navigate screen allows for the quick selection of settings and destinations, thus simplifying the scanning process and making it a user-friendly experience.

Speedy scanning to 100 destinations
Easily program up to 100 scanning destinations on the KV-N1028X using the touchscreen and send scanning jobs to the destination of your choice within seconds. The KV-N1028X also allows you to create shortcuts for preferred settings and destinations using the Favorite button.

Flexible document handling
Scan virtually any type of document as the KV-N1028X supports the largest range of document weights (20 - 413 g/m2), unlimited long-paper mode, barcode recognition, passport scanning and mixed document scanning.

Numerous file output formats
The KV-N1028X offers document outputs such as PDF (searchable, compact, password), JPEG, XLSX, PPTX and even DOCX when scanning to Panasonic Image Capture Plus.

Panasonic KV-N1028X Features

  • Scanning speed of 45 ppm / 90 ipm
  • Wi-Fi and wired LAN connectivity
  • 5" LCD color touchscreen
  • 100 programmable scanning destinations
