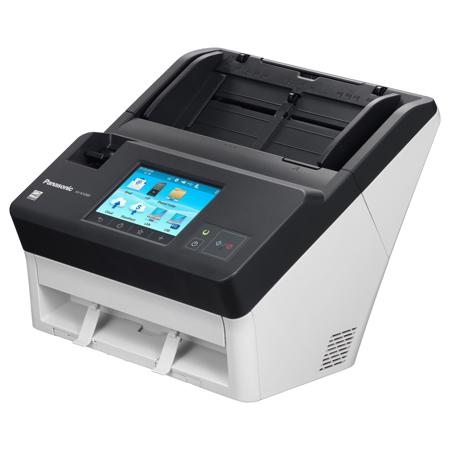

Panasonic KV-N1058X Network Wireless Color Document Duplex Scanner, 65 ppm

SKU: PCKVN1058X

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Panasonic KV-N1058X Specifications

  • Scanning Face

    Simplex/Duplex

  • Scanning Method

    1 line Color CIS (300 dpi/600 dpi), Black or White Background

  • Scanning Resolution

    100 - 600 dpi (1 dpi step) and 1,200 dpi (interpolated)
    Optical: 300 dpi / 600 dpi (Automatic switch)

  • Scanning Speed

    Simplex: Up to 65 ppm, Duplex: Up to 130 ipm (Binary/Color, A4/Portrait, 200/300 dpi)

  • Output Methods

    Scan to Email, Scan to FTP, Scan to Shared Folder, Scan to Cloud, Scan to SharePoint, Scan to PC

  • Double-Feed Detection

    Ultrasonic (The length of documents that can be detected is 70 mm (2.8") or more)

  • Image Compression

    MH, MMR , JPEG, JPEG2000

  • Image Output

    Binary, Grayscale (8bit), color (24bit), Multistream

  • Binary Mode Halftone

    Dither, Error Diffusion

  • Image Control

    Auto Preview, Auto Rescan, Automatic Brightness Adjustment, Multi Color Drop Out, Dynamic Threshold, White Level From Paper, Image Emphasis Gamma, Automatic Separation, Noise Reduction

  • Other Functions

    Length Control, Barcode Detection, Patchcode Detection (Type 2, 3, T), Control Sheet Detection, Long Paper, Double Feed Skip

  • Documents

    Width: 48mm - 216mm (1.9" - 8.5")
    Length: Automatic feeding: 54mm - 356mm (2.1" - 14")
    Manual feeding: 54mm - unlimited (2.1" - unlimited)
    Thickness: Paper 0.04mm- 0.5mm (1.6 mils. - 19.7 mils.)
    Passport 4.0 mm (157.5 mils.) (including carrier sheet)
    Note: 1 mil = 0.001"
    Weight: 20 g/m2 - 413 g/m2 (5 lbs - 110 lbs)

  • Card

    Format: ISO format
    Size: 85.6mm x 54mm (3.4 x 2.1")
    Thickness: 0.76mm (0.03"), Embossed card up to 1.4 mm (55.1 mils)

  • Feed Tray Capacity

    100 sheets: 80 g/m2 (21lbs) High-quality woodfree paper

  • Supported Operating System

    Windows Vista SP2 (32 bit/64 bit), Windows 7 (32 bit/64 bit), Windows 8 (32 bit/64 bit), Windows 8.1 (32 bit/64 bit), Windows 10 (32 bit/64 bit), Windows Server 2003 SP2 (32 bit/64 bit), Windows Server 2003 R2 SP2 (32 bit/64 bit), Windows Server 2008 SP2 (32 bit/64 bit), Windows Server 2008 R2 SP1 (64 bit), Windows Server 2012 (64 bit), Windows Server 2016 (64 bit)

  • Recommended Web Browser

    Internet Explorer 11, Mozilla Firefox (latest version), Google Chrome (latest version)

  • Interface

    USB 3.1 Gen1 (backward compatible)
    LAN (10Base-T / 100Base-TX / 1000Base-T)
    Wireless LAN (IEEE802.11n/g/b)

  • Wireless LAN

    Communication standard: IEEE802.11n/g/b
    Frequency range (center frequency)/Channel:
    U/ML: 2.412GHz - 2.472 GHz(1 - 13ch), M/B: 2.412GHz - 2.462GHz (1 - 11ch)

  • Power Requirement

    AC 100 - 127 V, 50/60 Hz, 0.8 A
    AC 220 - 240 V, 50/60 Hz, 0.4 A

  • Power Consumption

    Maximum (Scanning): 36W or less
    Minimum (Ready): 10W or less
    Sleep: 2W or less (USB connection), 2W or less (Wired LAN Connection), 2W or less (Wireless LAN Connection)
    Power off: AC 100 V - 127 V: 0.3 W or less, AC 220 V - 240 V: 0.5 W or less

  • Operating Environment

    Temperature: 5 to 35 deg. C (41 to 95 deg. F)
    Humidity: 20 - 80% RH

  • Storage Environment

    Temperature: -10 to 50 deg. C (14 to 122 deg. F)
    Humidity: 8 - 75% RH

  • Dimensions (WxDxH)

    External: 300 x 272 x 238mm (11.81 x 10.71 x 9.37") (When the exit tray is closed)

  • Weight

    4.1kg (9.04 lbs)

  • UPC Code

    885170312838

About Panasonic KV-N1058X

Ideal for small and medium-sized offices, along with enterprise environments, banks and financial institutions, medical offices and hotels, the scanners help businesses make the move towards fully digital working.

Easy operation with color touchscreen
Thanks to an integrated 5" color touchscreen, you can adjust the settings from the panel and access the most regularly used scanning operations easily.

Scan via your smartphone
Panasonic's Image Capture Mobile application allows you to send scanned data directly to your smartphone, tablet or other mobile device.

Direct-to-network scanning
The scanner can be used in three 'push' scan modes, meaning it can be operated with or without a PC or USB connection, depending on your requirements. Thanks to the preset scan function, if you register your scanning requirements in advance, you can scan directly to an FTP server, SMB folder or email.

High-speed scanning
The KV-N1058X scans at 65ppm/130ipm, delivering the highest scanning speed of all Panasonic models in this class. It achieves the same speeds for both 200/300 dpi and binary/color documents.

Advanced network security
Stay safe and secure with the KV-N1058X's advanced network security features. The scanner is equipped with encryption technology that supports SFTP/FTP and SSL communication. For multiple users, the scanner features user authentication and access control.

Large-capacity automatic document feeder
The KV-N1058X also comes equipped with a large-capacity automatic document feeder (ADF). The ADF makes it ideal for scanning larger batches, double-sided documents and paper capacity of up to 100 originals (80g/m2).

Intelligent double-feed detection
To minimize interruptions to scanning performance, the KV-N1058X features intelligent double-feed detection. That means the positions and lengths of labels, vouchers and photos can be memorized to automatically disable double-feed detection for documents in the same format.

Double-feed skip (DFS)
Another reliability feature is DFS. Whenever scanning stops due to a double-feed, users can restart things immediately by simply pressing the double-feed skip key to ignore the error. This is especially useful when documents contain a label, sticky notes or multiple document sizes.

Multiple-document scanning
We understand that your business handles documents in all shapes and sizes - and you don't want the inconvenience of having to scan each format individually. So the KV-N1058X can scan passports, embossed cards and long paper, along with mixed paper and hard card for batch scanning.

Panasonic KV-N1058X Features

  • Network capabilities mean scans connect direct to users systems - without the need for a PC (scan to email, FTP, SMB server, SharePoint or cloud)
  • High-speed duplex scanning saves time (65ppm)
  • Large-capacity automatic document feeder (ADF) is ideal for large document batches
  • Reliable paper feed, including double-feed detection, double-feed skip and single-touch scanning, means fewer interruptions to operation
  • Multi-document scanning delivers greater flexibility - passports, embossed cards and long paper formats can all be scanned
  • Intuitive operation with 5" color touchscreen
  • Image Capture Mobile allows you to send scanned data direct to your smartphone or tablet
  • More secure scanning, thanks to advanced network security

What's in the box:

  • Panasonic KV-N1058X Network Color Document Duplex Scanner with 5 " Touchscreen
  • 1.5m USB 3.1 Cable
  • Power Cord
  • Mixed Batch Card Guide
  • CD-ROM (Device Driver
  • ISIS Driver Software
  • TWAIN Driver Software
  • User Utility
  • Scan Button Setting Tool 12
  • Image Capture Plus
  • Operating Manual
  • Control Sheet)
  • Panasonic Warranty
