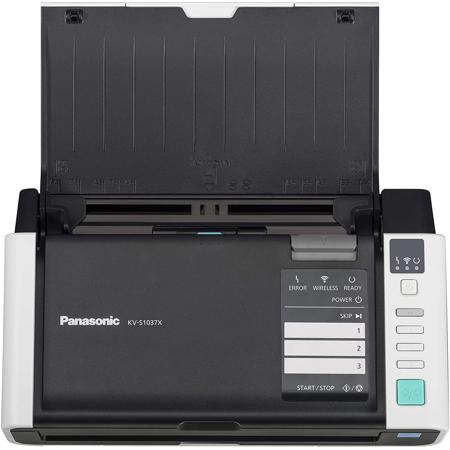

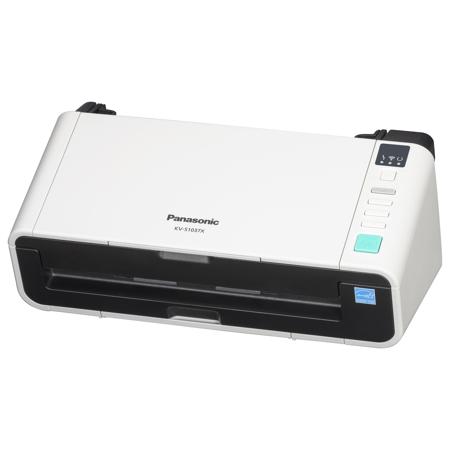

Panasonic KV-S1037X Network Wireless Color Document Duplex Scanner

SKU: PCKVS1037X

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Panasonic KV-S1037X Specifications

  • Scanning Face

    Duplex

  • Scanning Method

    Color CIS

  • Scanning Resolution

    100 - 600 dpi (1 dpi step) and 1200dpi (software)
    Optical: 300 dpi / 600 dpi

  • Automatic Detection

    Intelligent double feed detection used ultrasonic sensor

  • Image Output

    Binary 1-bit, Grayscale 8-bit, Color 24-bit, MultiStream (Color & Binary or Gray & Binary)

  • Internal Video Processing

    1,024 levels (30 bit)

  • TONAL GRADATION

    Binary, Grayscale, Color, MultiStream: Binary & Grayscale, Binary & Color

  • Image Compression

    MH, MMR, JPEG, JPEG2000

  • Binary Mode Halftone

    Dither, Error Diffusion

  • Image Control

    Auto preview, Auto rescan, Automatic Brightness Adjustment, Multi Color Drop Out, Dynamic Threshold, White Level From Paper, Image Emphasis, Gamma, Automatic Separation, Noise Reduction

  • Other Functions

    Length Control, Patchcode Detection (Type 2, 3, T), Control Sheet detection, Long Paper, Double Feed Skip

  • Documents Paper Size

    When 1 page: 1.9 x 2.1" (48 x 54mm) - 8.54" (216mm x Unlimited)
    When using ADF: 1.9 x 2.1" (48 x 54) 8.54 x 14" (216 x 356mm)

  • Thickness (When 1 page)

    1.6 mils - 19.7 mils (0.04 - 0.5mm)

  • Weight

    When 1 page: 5.4 - 91 lbs (20 - 413 g/sq. m)
    When using ADF: 5.4 - 91 lbs (20 - 413 g/sq. m)

  • Thickness

    Paper 0.04 - 0.5 mm (1.6 - 19.7 mils)
    ISO Card 0.76 mm (29.9 miles) except for emboss
    1.24 mm (48.8 miles) include emboss
    Passport 3.0 mm (118.1 miles) include carrier sheet

  • Feed Tray Capacity

    Up to 50 sheets: A6 to A4 or Letter size 80 g/sq. m (21 lbs) new paper

  • Supported Operating System

    Windows Vista SP2 (32 / 64-bit), Windows 7 (32 / 64-bit), Windows 8 (32 / 64-bit), Windows 8.1 (32 / 64-bit), Windows 10 (32 / 64-bit), WindowsServer2003 SP2 (32 / 64-bit), WindowsServer2003 R2 SP2 (32 / 64-bit), WindowsServer2008 SP2 (32 / 64-bit), WindowsServer2008 R2 SP1 (64-bit), WindowsServer2012 (64-bit), WindowsServer2016 (64-bit),

  • Interface

    USB 3.1 interface : Supported Super Speed for Gen1 (Not supported Gen2)
    Ethernet interface : 10Base-T/100Base-TX/1000Base-T
    Wireless LAN: IEEE802.11b/g/n

  • Power Requirement

    External power supply (AC adapter)
    AC 100 V - 240 V, 50 / 60 Hz

  • Power Consumption Maximum (Scanning)

    26 W or less

  • Power Consumption Minimum (Ready)

    6 W or less

  • Power Consumption (Sleep)

    2.0 W or less (When connecting via just one of: USB, wired LAN, or wireless LAN.)

  • Power Consumption (Power OFF)

    0.3 W or less

  • Operating environment

    Temperature: 5 to 35 Degree C (41 to 95 Degree F) / Humidity: 20 to 80 % RH

  • Storage Environment

    Temperature: -10 to 50 Degree C (14 to 122 Degree F) / Humidity: 8 to 75 % RH

  • Scanning Speed

    Simplex: Up to 30 ppm, Duplex: Up to 60 ipm
    (Binary / Color, A4 or Letter, 200 / 300 dpi)

  • Dimensions (W x D x H)

    12.0 x 7.0 x 5.4" (303 x 177 x 137mm)

  • Weight

    5.9 lbs (2.7kg)

  • UPC Code

    885170313507

About Panasonic KV-S1037X

KV-S1037 Series Personal Workgroup Scanner
In every working environment, space is at a premium so it's vital that your technology helps - rather than hinders - the way your business works, delivering the performance and space-saving design you demand. The KV-S1037X personal workgroup scanner provides industryleading performance, with versatile document handling capabilities and a compact footprint.

High-performance scanning in a compact body
• The KV-S1037X - can achieve scanning speeds of up to 30ppm/60ipm @300dpi in color
• Compact footprint means the scanner fits easily into the smallest of spaces such as a reception desk or small office cubicle

Versatile document handling
• The KV-S1037X offers passport scanning, as well as scanning of embossed hard cards and long documents, such as EKGs
• It can also handle documents weighing between 5.4 - 91 lbs.

Wired and wireless connectivity
• The KV-S1037X includes 802.11 b/g/n wireless network connectivity
• The KV-S1037X also offers a builtin Gigabit Ethernet allowing you to connect directly to your office network

High-speed / high capacity output
• Alongside impressively compact dimensions, the KV-S1037X scanner delivers performance to match anything in its class.
• Alongside an auto-document feeder (ADF) capacity of 50 sheets, the model scans at up to 30ppm/60ipm @300dpi in color, giving you the same speeds for both binary and color documents

Unmatched document versatility
When it comes to document and media handling capabilities, the KV-S1037X scanner is more than a match for the competition. It can scan paper and hard cards weighing between 5.4 - 91 lbs. and can scan passports as well as long-paper at unlimited lengths. This scanner can handle documents ranging from invoices to medical scripts and ID cards.

Real-world reliability
The KV-S1037X scanner is designed to meet the rigorous demands of any office user. It has a daily duty of up to 3,000 pages and a rated roller replacement cycle of 100,000 pages. The Active Double Feed Prevention Roller System ensures fewer scanning delays and smoother scanning operation.

Easy document management
With Panasonic's Image Capture Plus technology, you can transfer scanned image data to your PC. Then you can edit, switch or delete pages via an intuitive user interface, which you can then output to a variety of text-editable document formats.

Simplified scan settings
The built-in auto preview function allows you to adjust image settings during the scanning process. Panasonic Auto Preview will provide nine different images of your scanned document so you can select the best image settings. So there's no need to waste time going through a trial-and-error process to achieve the best scanned images possible. In addition, the auto re-scan feature allows you to adjust the image settings on an already scanned document, eliminating the need to re-scan the entire document again.

Saving vital space
They say the best things come in the smallest packages. That is certainly the case with the KV-S1037X scanner. It features a compact body that can fit into confined, narrow spaces without compromising on performance.

Panasonic KV-S1037X Features

  • 30ppm / 60ipm High-Speed Scanning(@ 200/300 DPI)
  • Hardware Image Processing
  • 50 Page Automatic Document Feeder
  • Plastic Card & Business Card Scanning
  • Passport Scanning
  • 3 Customizable Single-Touch Scan Keys
  • Ultrasonic Double-Feed Detection
  • Double-Feed Skip Key
  • High-Speed USB 3.1 (Gen1) Interface
  • High-Speed Gigabit Ethernet
  • 802.11 b/g/n Wireless Connectivity
  • Direct Scan to Email/PC/Network/FTP
  • Auto Preview / Auto Rescan

Key Features

  • 30ppm / 60ipm High-Speed Scanning(@ 200/300 DPI)
  • Hardware Image Processing
  • 50 Page Automatic Document Feeder
  • Plastic Card & Business Card Scanning
  • Passport Scanning
  • 3 Customizable Single-Touch Scan Keys

What's in the box:

  • KV-S1037X Network Wireless Color Document Duplex Scanner
  • DVD-ROM: Drivers and Utilities
  • AC Adapter
  • Power Cord
  • USB Cable
  • Shading Paper
  • Guidance Sticker
  • Correction sticker
  • Quick Start Guide
  • Panasonic 3 Year Limited Warranty
