Review Summary
Duplex
Color CIS (600 dpi) / Black or White Background
100 - 600 dpi (1 dpi step) and 1200 dpi (interpolated) Optical: 300 dpi / 600 dpi (Automatic switch)
Simplex: Up to 65 ppm
Duplex: Up to 130 ipm
Intelligent double feed detection using ultrasonic sensor
RGB LED
MH, MMR, JPEG
Dither, Error Diffusion
Auto preview, Auto rescan, Automatic Brightness Adjustment, Multi Color Drop Out, Dynamic Threshold, White Level From Paper, Image Emphasis, Gamma, Automatic Separation, Noise Reduction
Length Control, Patchcode Detection (Type 2, 3, T), Control Sheet detection, Long Paper, Double Feed Skip
Size / Thickness / Weight:
When 1 page: Size: 48 mm x 54 mm (1.9 in. x 2.1 in.) - 216 mm x 5,588 mm (8.5 in. x 220 in.) Thickness: 0.04 mm - 0.5 mm (1.9 mils - 19.7 mils) Weight: 20 g/m2 - 413 g/m2 (5.4 lbs - 110 lbs.) Note: 1 mil = 0.001 in.
When using ADF: Size: 48 mm x 54 mm (1.9 in. x 2.1 in.) - 216 mm x 356 mm (8.5 in. x 14 in.) Thickness: 0.04 mm - 0.5 mm (1.9 mils - 19.7 mils) Weight: 20 g/m2 - 413 g/m2 (5.4 lbs - 110 lbs.) Note: 1 mil = 0.001 in
Size: 85.6 mm x 54 mm (3.4 in. x 2.1 in.) (ISO 7810 ID-1) Thickness: 0.76 mm (30.0 mils) Note: 1 mil = 0.001 in.
Up to 100 sheets 80 g/m2 (21 lbs., A4 or Letter) or 3 hard cards (ISO7810 ID-1)
Windows XP (32bit SP3 or later / 64bit SP2 or later) Windows Vista SP2 (32 / 64-bit), Windows 7 (32 / 64- bit), Windows 8 (32 / 64-bit), Windows 8.1 (32 / 64-bit), Windows Server 2003 SP2 (32 / 64-bit), Windows Server 2003 R2 SP2 (32 / 64-bit), Windows Server 2008 SP2 (32 / 64-bit), Windows Server 2008 R2 SP1 (64-bit), Windows Server 2012 (64-bit)
USB 3.0
1.7" LCD
AC 220V - 240V, 50/60 Hz
9 types
40 W or less
8 W or less
3.0 W or less
0.5 W or less
5 to 35 deg. C / 41 to 95 deg. F/
20 - 80 % RH
-10 to 50 deg. C / 14 to 122 deg. F
8 - 75 % RH
CD-ROM (Device Driver, ISIS driver software, TWAIN driver software, User Utility, Scan Button Setting Tool, Image Capture Plus with the New OCR Engine, Operation manual, Control sheet (PDF)
11.81 x 10.71 x 9.37" / 299.97 x 272.03 x 238.00mm (When the exit tray is closed)
4.0kg / 8.82lbs
885170312869
One-touch, multi-size, multi-document scanning
High-speed duplex scanning
Up to 65ppm
Reliable paper feed mechanism
Multi-size and multi-document batch scanning
One-touch operation
Intelligent double-feed detection
Barcode recognition
Remote maintenance tool
Auto preview/auto rescan
Time-saving, productivity-building scanning for any space

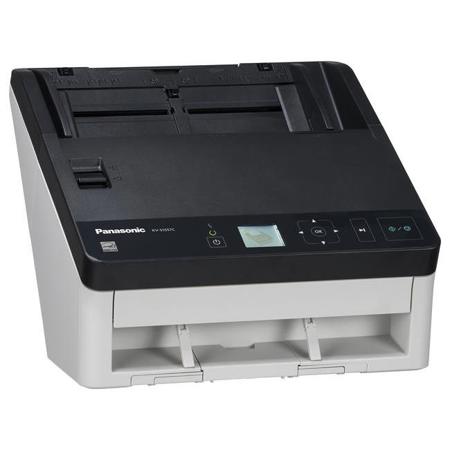

Looking for high performance in a compact package. Want to increase efficiency without increasing cost? The new KV-S1057 scanner brings you improved scanning speed and paper feed capability, multiple size and material scanning in one and one-touch, no-fuss functionality for a range documents including passports all in an easy-to-store, easy-to-access size. All your binary or color documents with 200dpi or 300dpi resolution can be scanned at the same speed vastly improving productivity for your business.
100-sheet capacity
With the largest ADF capacity in its class. it allows you to scan high volumes at once, reducing the number of set-ups. While its first gate mechanism saves you valuable time when handling large number of documents.
Multiple document capability
From paper to mixed material to card, documents ranging from invoices and medical scripts to ID cards and passports can be loaded in one and scanned in an instant.
One-touch operation
You can pre-programme and select from up to 100 desired scan settings at the touch of a button.
Intelligent double-feed detection
The positions and lengths of attached paper strips, such as labels and photos, can be memorized to automatically disable Double-Feed Detection for any documents with the same format.
Central site management
Efficient scanner management across a network. When working in collaboration with Panasonic's central site manager software, the KV-S1057 scanner is even easier to manage and more efficient in its operations. The software delivers effective control across an entire network, overseeing the status of each scanner, identifying where maintenance is required, notifying users when errors occur by email and updating the software and setting of every scanner in one collective action.
Auto preview
Eliminating the possibility of problematic scan settings. An integrated auto preview function automatically adjusts whatever is scanned, offering nine possible 'candidate' types. The user can then select the most suitable image with a single click, making any further adjustments that might be required. So there's no need to waste time going through a trial-and-error process and highly legible electronic documents are produced quickly and easily.
Auto rescan
Simple rescanning of different documents. The auto rescan feature allows the user to adjust the image on a PC screen without rescanning the original document. Again, this saves time and effort.
Barcode index
The easy way to well-sorted documentation. The KV-S1057 scanner can also be specified with 'Barcode Index' software a barcode recognition function that identifies barcode information on documents and forms and then sorts the documents appropriately. So all scanned items are sorted accurately, quickly and easily.
Versatile
High-speed scanning of passports, ID cards, invoices and long paper, with no need to reset or resize.
Time-saving
Quick Operation System, duplex scanning and choice of 45ppm or 65ppm speed settings for the most efficient way to scan multiple documents at once.
Robust
Improved paper feed mechanism for even greater reliability, allowing for up to 100 A4 sheets at a time.
Compact
Small dimensions and no need for an AC adaptor bring convenience and instant service to banks, hospitals and other businesses.
