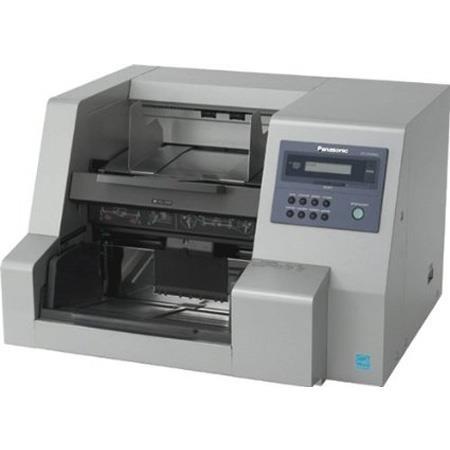

Panasonic KV S3105C-V Sheetfed Document Scanner with Kofax VRS Elite, 600 dpi Optical Resolution, Up to 132 ppm / 230 ipm Binary 200 dpi Speed, Up to 1000 Sheets Feed Tray

SKU: PCKVS3105CV

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Panasonic S3105C-V Specifications

  • Scanning Face

    Duplex, Sheet Feed Scanning

  • Scanning Method

    3-Line CCD image sensor
    Selectable black and white background reference

  • Scanning Speed (Cont.)

    Binary Speed 200 dpi (Landscape):
    Letter:
    Simplex: 132 ppm; Duplex: 230 ipm
    A4:
    Simplex: 130 ppm; Duplex: 220 ipm
    Binary Speed 200 dpi (Portrait):
    Letter:
    Simplex: 105 ppm; Duplex: 190 ipm
    A4:
    Simplex: 100 ppm; Duplex: 180 ipm
    Color Speed 200 dpi (Landscape):
    Letter:
    Simplex: 132 ppm; Duplex: 180 ipm
    A4:
    Simplex: 130 ppm; Duplex: 175 ipm

  • Scanning Speed (Cont.)

    Binary Speed 200 dpi (Portrait):
    Letter:
    Simplex: 105 ppm; Duplex: 180 ipm
    A4:
    Simplex: 100 ppm; Duplex: 174 ipm

  • Scanning Resolution

    (Color and B/W): 100 - 600 dpi (1 dpi step)

  • Detection

    Ultrasonic double-feed detection

  • Image Compression

    Binary: MH, MR, MMR
    Grayscale and Color: JPEG

  • Image Output

    Binary (simple binary, Halftone mode), Grayscale (8-bit), Color (24-bit): sRGB, ICM (TWAIN), MultiStream output

  • Feed Tray Capacity

    Up to 1000 sheets (64 g/m2, 17 lbs)

  • Binary Mode Halftone

    Dither, Error diffusion

  • Image Control

    Image Emphasis (5 steps), Gamma correction, Dynamic Threshold, Automatic Separation, Noise Reduction, Shadow Removal, De-skewing, Automatic Cropping, Mirror Image, Monochrome Reversing, Automatic Binary / Color Distinction, Multi Color Drop Out and much more

  • Other Functions

    Length Control, Document size detection, Double feed detection, Barcode detection (ISIS), Patch code detection, Separation sheet, Control sheet

  • Document: Size (ADF)

    Minimum: 1.9 x 2.75" / 48 x 70mm )
    Maximum: 11.7 x 17" / 297 x 432mm

  • Document: Weight

    Single: 8.0 - 42lbs / 30 - 157g/m2
    Continuous: 13.0 - 42lbs / 50 - 157g/m2

  • Document: Thickness

    Single: 1.6 - 7.9 mils (0.04 - 0.2mm)
    Continuous: 2.4 - 7.9 mils (0.06 - 0.2mm)

  • Automatic Document Feeder

    Up to 1000 sheets (17lbs, 64g/m2)

  • Long Paper Mode

    200 page or memory size limitation
    Up to 283.3' (86.36m) (Ledger size, 200dpi, simple binary)
    Maximum page length: 8.33' (2.54m)

  • Image Memory

    Standard: 256MB
    Maximum: Base memory plus 256MB or 512MB

  • Interface

    High-Speed USB 2.0 / Ultra Wide SCSI (SCSI III) - 40MBps

  • Supported Operating System

    Windows XP (32-bit), Windows Vista (32 / 64-bit), Windows 7 (32 / 64-bit

  • Power Requirement

    AC100-120V, 50/60Hz

  • Power Consumption

    Scanning: 3.0A
    Standby: 0.7A
    Sleep: 6.2W or less

  • Software Bundle

    Device driver software, ISIS driver software, TWAIN driver software, Image Capture Plus application software, RTIV application software, Installation manual, Operating instructions, Control sheet, QuickScan Pro demo application software

  • Operating Temperature

    59 to 86 deg. F / 15 to 30 deg. C

  • Operating Humidity

    20% RH to 80% RH

  • Storage Humidity

    10% RH to 80% RH

  • Storage Temperature

    32 to 95 deg. F / 0 to 35 deg. C

  • Dimensions (W x D x H)

    24.7 x 21.5 x 16.3" / 627 x 546 x 415mm

  • Weight

    114.4lbs / 52kg

  • UPC Code

    885170067608

About Panasonic S3105C-V

Incorporating exceptional features with a durable design, Panasonic's KV-S3105C high-volume production scanner is optimized for deployment in organizations with extremely heavy volumes of paperwork requiring exceedingly fast performance. With the ability to scan an unlimited daily amount of virtually any type of document, from business cards to ledger size paper, the KV-S3105C is an essential scanner solution for any organization with a constant flow of documents which require scanning.

Beyond standard documents, the KV-S3105C also features the ability to scan continuous documents of up to 100" in length such as EKG reports or well logs. The KV-S3105C's extensive hardware elements are further maximized by a range of available software options. With the ability to purchase the unit bundled with Kofax's advanced "VRS Elite Production", the scanner will handle precision document capture and versatile image processing with ease.

Featuring a rugged stainless steel construction, the KV-S3105C is built to last. Whether it's scanning a single page or a full stack of documents, the KV-S3105C is an exceptionally powerful workhorse designed specifically with your high-volume production environment in mind.

Automatic Binary / Color Distinction
Automatic Binary / Color distinction allows the scanner to recognize and differentiate Color and Black & White pages. This function reduces scan-to-file size while promoting a more efficient scanning process.

Multistream Function
The MultiStream function enables a single scan to be saved as two separate formats simultaneously. For example the document will be saved in Binary for OCR and archival purposes and saved as a full color image for short term on-screen retrieval.

Multi Color Drop Out Function
Up to 3 distinct color ranges can be selected to be dropped out of the scanned image. This function, when used in forms processing applications, can greatly improve OCR performance and accuracy, resulting in increased productivity and potential cost savings.

Automatic De-Skew and Cropping
These useful features take the worry out of scanning mixed size originals. Should documents skew as they are being fed, the Automatic De-Skew feature can straighten them out. And scanned documents can be automatically cropped to their original size, reducing pre-scan production time, thereby increasing efficiency and reducing costs.

With its easy to use "clam-shell" design and stainless steel construction, the KV-S3105C is built to last while providing easy access for routine cleaning and maintenance. KV-S3105C is designed to provide unlimited daily duty cycle (number of pages that the scanner can scan per day without reducing the life expectancy of the scanner).

Designed to increase productivity and reduce downtime, the KV-S3105C incorporates longer lasting, easy to replace rollers. No more waiting for a service technician to perform routine roller replacements - these rollers can be replaced quickly without any tools. With the standard USB 2.0 and Ultra Wide SCSI interface the KV-S3105C can be connected to most PCs depending on your office environment.

High-Speed Full-Color Scanning
Excellent performance keeps office productivity high. This speeds up the job of turning even large amounts of daily forms and mountains of documents into data. Clean, crisp, clear scanned data is also ideal for electronic file conversion and management.

Duplex Scanning
Prevents pages from being missed when scanning. Double-sided scanning of documents from business-card size all the way to A3 can be done with a single scan. Plus, double-sided scanning is done at the same speed as single-sided scanning. This eliminates the work of pre-sorting and prevents pages from being missed when scanning.

Mixed Document Feeding
Documents of different types can be scanned one after another. Documents from business-card size all the way to A3 with a variety of paper thicknesses can be fed at the same time - ideal for offices that handle a wide range of document types.

Long Paper Mode
Even documents of unusually long sizes can be scanned. The highly reliable paper feed system lets you scan documents up to 84m in length. This is ideal for scanning electrocardiograms (EKG) or other special documents. This single scanner handles a wide variety of applications.

Curved Paper Path and Straight Paper Path
Excellent Versatility. In addition to the ordinary curved path, a straight path ensures high reliability with thick or long paper. The possibilities for both usage and installation location are almost unlimited.

Easy Maintenance
Maintenance costs and downtime are reduced. The design allows full, easy access to the entire paper path, so you can clear paper jams or clean the unit without calling a service center. The rollers last a long time and are easy to replace when worn, also improving the unit's cost-effectiveness.

Double-Feed Prevention Roller System
Prevents scanning mis-feeds. This double-feed prevention roller system is used to ensure reliable scanning of large amounts of documents. It reduces double-sheet feeding by separating the documents from the second sheet onward.

Auto Erasure Security
A high degree of safety. Scanned data is automatically erased from the scanner memory as soon as scanning is completed. This basically eliminates the danger of information leaks and ensures the user of safe, secure scanning.

Post-Imprinter
Raises filing efficiency. With the optional post-imprinter mounted, characters such as "group A" can be printed onto the back side of documents after scanning. This raises filing efficiency after scanning and makes it easy to check for pages that were missed when scanning.

What's in the box:

  • Panasonic KV S3105C-V Sheetfed Document Scanner with Kofax VRS Elite
  • Installation Manual
  • Maintenance Manual
  • Power Cord
  • USB Cable
  • Blower
  • Roller Cleaning Paper
  • Shading Paper
  • CD-ROM
  • Panasonic 1 Year Limited Warranty
