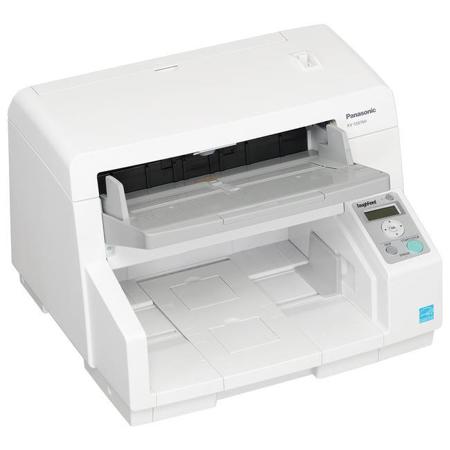

Panasonic KV S5076H-V Sheetfed Document Scanner with Kofax VRS Elite Software, 600 dpi Optical Resolution, 100 ppm / 200 ipm Speed, 300 Sheets Feed Tray

SKU: PCKVS5076HV

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Panasonic S5076H-V Specifications

  • Image Sensor Type

    Front side: Contact Image Sensor at 600 dpi
    Back side: Contact Image Sensor at 600 dpi
    Selectable black and white background reference

  • Light Source

    LED

  • Scanning Face

    Duplex Scanning

  • Other Functions

    Length control, Barcode detection (ISIS), Patch code detection, Control sheet, Long paper mode

  • Tonal Gradation (Bitonal Mode)

    Dither, Error diffusion, Grayscale (8 bit), Binary

  • Image Compression

    JPEG for color and grayscale

  • Optical Resolution

    100 - 600 dpi (1 dpi step)
    Optical: 600 dpi (Main and sub feeding directions)

  • Output Resolution

    Color: 24-bit
    Grayscale: 8-bit
    Monochrome: 1-bit

  • Output Color Depth

    Color: 24-bit; Grayscale: 8-bit; Monochrome: 1-bit

  • Image Processing Function

    Auto Preview, Auto Rescan, Image Emphasis, Dynamic Threshold, Automatic Separation, Invert, White Level from Paper, Deskew, Cropping

  • Scanning Speed (Cont.)

    Binary Speed 200 / 300 dpi (Landscape):
    Letter:
    Simplex: 100/100 ppm; Duplex: 200/200 ipm
    A4:
    Simplex: 100/100 ppm; Duplex: 200/200 ipm
    Binary Speed 200 / 300 dpi (Portrait):
    Letter:
    Simplex: 80/80 ppm; Duplex: 160/160 ipm
    A4:
    Simplex: 80/80 ppm; Duplex: 160/160 ipm

  • Scanning Speed (Cont.)

    Binary Speed 200 / 300 dpi (Landscape):
    Letter:
    Simplex: 100/100 ppm; Duplex: 200/200 ipm
    A4:
    Simplex: 100/100 ppm; Duplex: 200/200 ipm
    Binary Speed 200 / 300 dpi (Portrait):
    Letter:
    Simplex: 80/80 ppm; Duplex: 160/160 ipm
    A4:
    Simplex: 80/80 ppm; Duplex: 160/160 ipm

  • ADF Capacity

    300 Sheets: 21lbs (80 g/m2)

  • Document Size

    ADF minimum: 1.9 x 2.75" (48 x 70mm)
    ADF maximum: 11.7 x 17" (297 x 432mm)

  • ADF Feeding Paper

    Thickness: 1.6-7.9 mils (0.04-0.2mm)

  • Weight (Thickness)

    Weight: 5-42lbs (20-157 g/m2)

  • Interface

    USB 3.0 interface (If the scanner is connected to a USB hub, it is not guaranteed to work)

  • Power Requirements

    AC100-120V, 50/60Hz

  • Power Consumption

    Maximum (scanning): 90W or less / 1.5A (100-120V)
    Minimum (ready): 30W or less
    Sleep Mode: 1.2W or less
    Power Off: 0.3W or less

  • Bundled Software

    Panasonic Image Capture Plus, EMC Quick Scan Pro (Trial), Panasonic User Utility, TWAIN Driver, ISIS Driver, WIA Driver

  • OS Support

    Windows, Windows XP SP3 (32bit / 64bit), Windows Vista SP2, Windows 7, Windows 8 (32bit / 64bit) Windows Server 2003 SP2, Windows Server 2003 R2 SP2, Windows Server 2008 SP2 (32bit / 64bit) Windows Server 2008 R2 SP1, Windows Server 2012 (64bit)

  • Feed Detection

    Double-feed Detection, Jam Detection, Slip Detection, Dog-ear Detection
    Stapled Document Detection

  • Operating Temperature

    10 to 35 deg. C / 50 to 95 deg. F

  • Operating Humidity

    20 - 80 % RH

  • Storage Humidity

    10 - 80 % RH

  • Storage Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Dimensions (W x D x H)

    18.5 x 17.5 x 13.4" / 468 x 444 x 339mm

  • Weight

    37.5lbs / 17kg

  • UPC Code

    885170187832

About Panasonic S5076H-V

Now there's an instinctive way to scan, store and process images that enables you to do more in less time. Panasonic KV-S5076H scanner features a built-in CPU that processes images by adjusting sharpness and contrast to detect image quality errors - creating the finest digital images possible. Conventional scanners rely on PC-based software to perform all image processing tasks - slowing performance and impeding workflow. By dedicating an on-board processor to a single purpose, the KV-S5076H scanner work faster - ushering in a new era in high-speed scanning.

You'll never have to rescan again
Tired of having to rescan an entire document because of image quality issues. The KV-S5076H temporarily stores the high-resolution raw data in the scanner memory until the document is exported as a file. If changes are required - whether on one page or hundreds - you can make them and reprocess the entire document from memory instead of having to rescan all the pages.

See image quality before you export
The KV-S5076H let you control the quality of your final scan with nine different scanning options before you output to file. Auto Preview enables you to choose the best image quality as documents are being scanned and processes it with a single click. No more test scanning or rescanning and adjusting image quality settings to achieve the best image possible.

Set and forget - the easiest scanning yet
You've got a lot of things to do besides standing over a scanner. So the KV-S5076H features a 300-sheet document feeder, active double-feed roller system, ultrasonic double-feed detection and - in the case of the KV-S5076H - stapled document detection and mechanical deskew. Problems like stuck sheets, dog-eared pages and sticky notes are detected so the issue is resolved without wasted time or trouble. That means you can start a job and not worry about it. And, you can automate document management with a custom workflow you can program - up to 100 custom workflows with the KV-S5076H - so distribution has never been easier.

Less maintenance, less downtime, fewer delays
Scanning large documents on a regular basis means you want reliable equipment that doesn't require a lot of maintenance. With commercial-grade rollers and self-cleaning features, such as a scanning glass cleaning brush and ionizer that neutralizes electrical charges from the paper feed area to prevent dust from accumulating, KV-S5076H scanner can handle your biggest jobs.

Professional-grade scanning solutions from the world's imaging specialists
As a worldwide leader in imaging technology, Panasonic has earned its reputation for the highest quality and reliability. The KV-S5076H scanner is engineered to process thousands of documents day in and day out. You can count on Panasonic for the highest level of performance and unmatched dependability.

High-Speed Full-Color Scanning
Excellent performance keeps office productivity high. This speeds up the job of turning even large amounts of daily forms and mountains of documents into data. Clean, crisp, clear scanned data is also ideal for electronic file conversion and management.

Self Cleaning Functions
Eliminates the need of maintenance.

Ionizer:
The ion-filled breeze created by the ionizer neutralizes the electrical charge on the documents to be scanned and reduces the amount of paper dust that clings to their surface. This ion-filled breeze also flows through the paper path and removes paper dust from the scanning glass to reduce the need for the user to clean the glass.

Scanning Glass Cleaning Brush
The brush directly cleans the scanning glass to further prevent paper dust. This eliminates the need for maintenance and ensures comfortable scanning operations.

ToughFeed
Improve paper feed performance. ToughFeed is a name given to a group of functions - Staple Document Detection, Ultrasonic Double-Feed Detection and Superior Roller Mechanisms - that are featured on Panasonic scanners to ensure a smooth supply of paper into the scanner for efficient scanning always. ToughFeed helps to prevent the unnecessary interruption of scanning work due to an equipment malfunction or double feeding that can otherwise result in un-scanned sheets, thus ensuring high work efficiency.

Double Feed Skip Button
Should a scan operation stop due to the detection of double-feeding, simply press the Skip button to resume scanning. This is convenient when you don't want scanning to stop due to documents with things like receipts or sticky notes attached or envelopes.

Duplex Scanning
Prevents pages from being missed when scanning. Double-sided scanning of documents from business-card size all the way to A3 can be done with a single scan. Plus, double-sided scanning is done at the same speed as single-sided scanning. This eliminates the work of pre-sorting and prevents pages from being missed when scanning.

Mechanical Deskew
Physically adjusts the paper before it is scanned. Physical paper skewing is reduced by the integrated Mechanical Deskew system. Even when skewed documents are fed into the scanner, the Mechanical Deskew system physically adjusts the paper before the paper is scanned by the CIS (Contact Image Sensor).

Paper Ejection Control
Reduces the ejecting paper speed to align the paper. The paper exit roller reduces the speed of the paper being ejected and aligns the paper to prevent paper jams or the loss of originals.

Automatic Image Orientation
No more worries about the document's direction. Even when documents are set in different directions, this function detects the direction of the scanned text in documents and automatically rotates it into the correct direction. This boosts work efficiency by eliminating the need to change the direction of each page in advance when scanning large quantities of documents with various sizes and directions.

Mixed Document Feeding
Documents of different types can be scanned one after another. Documents from business-card size all the way to A3 with a variety of paper thicknesses can be fed at the same time - ideal for offices that handle a wide range of document types.

Long Paper Mode
Even documents of unusually long sizes can be scanned. The highly reliable paper feed system lets you scan long size documents. This is ideal for scanning electrocardiograms (EKG) or other special documents. This single scanner handles a wide variety of applications.

Auto Erasure Security
A high degree of safety. Scanned data is automatically erased from the scanner memory as soon as scanning is completed. This basically eliminates the danger of information leaks and ensures the user of safe, secure scanning.

Pre-Imprinter
Raises filling efficiency. With the optional pre-imprinter mounted, characters such as "group A " can be printed onto the front of documents before scanning and the imprinted characters also appear in the scanned image. This helps to prevent pages from being missed when scanning and raises filing reliability.

Thin Paper Scanning
No more worries about scanning thin paper. Now you can continuously scan documents that are as thin as 0.04mm. That makes it easy to scan thin forms or vouchers. And it increases the number of situations where you can use scanning - without worrying about thin paper.

Single-Sided Document Alignment
Easy scanning of mixed size documents. You can enjoy smooth scanning by aligning either the right side or the left side of the documents. This lets you simultaneously set various sizes of documents for scanning.

Flatbed Scanning
For scanning passports, datebooks and other special documents. Passports, date books, bound materials and other documents that cannot be fed through the Auto Document Feeder (ADF) can be scanned with flatbed scanning. The scanner is also equipped with a Start button, so work efficiency can be increased by quickly scanning while turning the book's pages, with no PC operation necessary.

Single User Interface
Easily scan documents and booklets. By selectively using the KV-S5076H and the optional KV-SS081, you can easily scan documents and booklets and save them in the same document.

2-Page Separation
Easily get the data you need from each page. Use the flatbed to scan 2-page spreads from books, magazines, etc. and automatically divide the single image into two single sheets. Dividing scanned documents saves time and trouble because it makes complex editing operations unnecessary.

Multi-Crop
Save time by reducing the number of scans. Place various sized documents on the flatbed and scan them all at once, then crop whatever parts you need. This is convenient for scanning multiple business cards and thick documents.

What's in the box:

  • Panasonic KV S5076H-V Sheetfed Document Scanner with Kofax VRS Elite Software
  • Quick Installation Guide
  • Power Cord
  • USB Cable
  • Roller Cleaning Paper
  • Shading Paper
  • Exit Support Sheet
  • Software CD-ROM
  • Double-Feed Prevention Roller
  • Panasonic 3 Year Warranty
