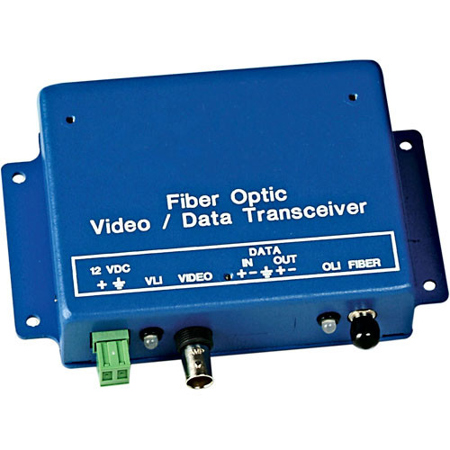

Panasonic MRM1605P Up-The-Coax Data Video Fiber Receiver Module, Multimode
See all Panasonic items

Panasonic MRM1605P Up-The-Coax Data Video Fiber Receiver Module, Multimode

SKU: PCMRM1605P

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Panasonic MRM1605P Specifications

  • Inputs/Outputs

    1 V/pp

  • Impedance

    75Ohms

  • Bandwidth

    8MHz

  • Differential Gain

    5%

  • Differential Phase

    5 deg.

  • Signal to Noise Ratio

    60dB

  • Connector Type

    BNC

  • Optical Design

    Wavelength = 850/1300 nm
    Max Transmission Distance = 1.6 km
    Loss Budget (62.5/125u) = 12 dB
    Connector = ST

  • Dimensions (H x W x D)

    3.75 x 1.31 x 5.88" / 9.53 x 3.33 x 14.94cm

About Panasonic MRM1605P

• Fiber Optics Transceiver
• Video Up-the-coax Module Receiver - Multimode
• Video w/ Reverse Panasonic Camera & PTZ Control Over One Multimode Optical Fiber
• Max Transmission Distance: 1.6 km
• Diagnostics: Video, Power & Optical Presence
• Optical AGC

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Panasonic MRM1605P Up-The-Coax Data Video Fiber Receiver Module
  • Panasonic 1 Year Warranty
