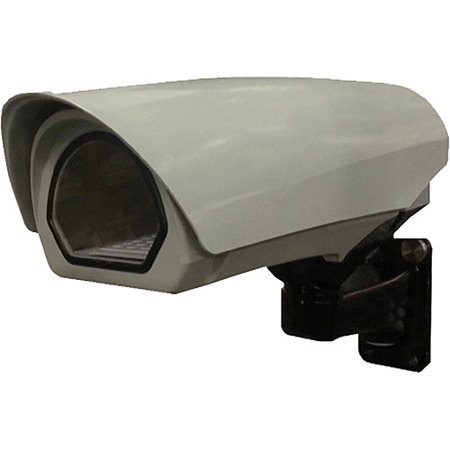

Panasonic 10" Rugged Wall Mount Outdoor Housing for Fixed Network Cameras
See all Panasonic items

Panasonic 10" Rugged Wall Mount Outdoor Housing with Heaters, Blowers, PoE Plus and 30W Midspan for Fixed Network Cameras

SKU: PCPOH1100NWM

This item is no longer available.

Recommended Alternatives

Panasonic WV-Q168/V: Picture 1 regular
Panasonic WV-Q168/V Embedded Ceiling Mount Bracket for Fixed Dome Cameras
$96.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Panasonic Outdoor Housing Specifications

  • Compatible With

    Network Bullet Cameras: WV-SP509 / 508 / 105 / 102 / 306 / 305 / 302 WV-NP502 / 304

  • Construction

    Body and Top: Polycarbonate
    Mounting Bracket: Cast aluminum
    Window: Scratch-resistant polycarbonate

  • Mounting

    Pattern: 2.00 x 4.25" / 50.80 x 107.95mm
    Style: Wall or pole

  • Heater

    Activates at 60 deg. F / 15.5 deg. C
    De-activates at 80 deg. F / 26.66 deg. C

  • Blower

    Yes (continuous)

  • Effective Projected Area (EPA)

    101.00 in2 (651.61 cm)

  • Windload

    Maximum: 150mph (240kph)

  • Power Consumption

    25W for camera, blower & heater

  • Power Output

    PoE power to PoE IEEE802.3af compliant Panasonic cameras

  • IP Rating

    IP66

  • Impact Rating

    NEMA 4

  • Certifications & Approvals

    CE, cUL, RoHS, UL listed, WEEE, REACH

  • Operating Temperature

    -50 to 122 deg. F / -46 to 50 deg. C

  • Maximum Camera Size (L x H x W)

    11.0 x 3.5 x 2.7" / 27.94 x 8.89 x 6.86cm

  • Dimensions (D x W x H)

    17.9 x 5.7 x 10.5" / 45.47 x 14.48 x 26.67cm

  • Weight

    4.50lbs / 2.04kg

About Panasonic Outdoor Housing

The Panasonic POH1100NWM is a camera housing for outdoor box type camera. It has an aluminum construction with a wall mounting surface.

Panasonic Outdoor Housing Features

  • 10" Camera Housing
  • Aluminum Construction
  • Comes with Heaters, Blowers, PoE Plus & Midspan
  • POE Power Output
  • Wall Mounting Surface
  • IP66 Certified

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 10" Camera Housing
  • POE Power Output
  • IP66 Certified

What's in the box:

  • Panasonic 10 Rugged Wall Mount Outdoor Housing with Heaters & Blowers & PoE Plus and 30W Midspan
  • Panasonic 1 Year Warranty
