32% Off

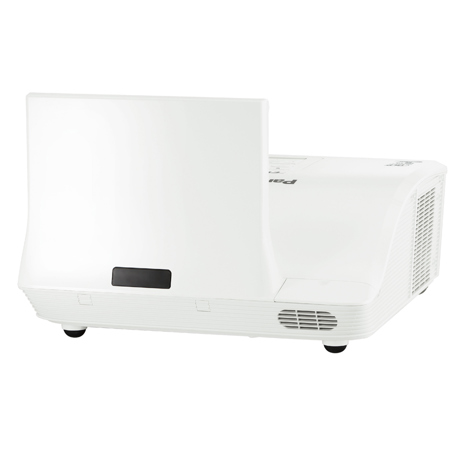

Panasonic PT-CW240U Ultra-Short Throw 1-Chip DLP Projector, 2600 Lumens, 16:10 Aspect Ratio, 10W Speaker Output, 240W UHM Lamp, HDMI/VGA/USB

SKU: PCPTCW240U MFR: PT-CW240U
Earn VIP Reward Points

Key Features

  • Experience vibrant visuals with 2600 Lumens, perfect for well-lit meeting rooms.
  • Ultra-short throw lens eliminates shadows, ideal for interactive whiteboard use.
  • WXGA resolution (1280x800) ensures clear, detailed images for professional presentations.
  • Enjoy up to 5000 hours of lamp life in Eco mode, reducing maintenance costs.
  • HDMI and VGA connectivity options support a wide range of devices for seamless setup.
  • Built-in 10W speaker delivers clear audio, enhancing multimedia presentations.
See More Product Details
Special Order?Estimated to Ship: 09/11/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Panasonic PT-CW240U Specifications

  • Power Supply

    100-240 V AC, 50/60 Hz

  • Power Consumption

    310 W (0.5 W when STANDBY MODE set to ECO1, 6.0 W when STANDBY MODE set to NORMAL.)

  • Panel Size

    16.5 mm (0.65 in) diagonal (16:10 aspect ratio)

  • Display Method

    DLP chip x 1, DLP projection system

  • Pixels

    1024000 (1,280 x 800) pixels

  • Lens

    Fixed (0.35:1 Throw ratio), manual focus, F 2.8, f 7.51mm

  • Lamp

    240 W UHM lamp

  • Lamp replacement cycle (Normal / Eco)

    4000 /5000 hours

  • Screen size (diagonal)

    1.78-2.54 m (70-100")
    (16:10 aspect ratio)

  • Color reproducibility

    Full color (16,777,216 colors)

  • Brightness

    2, 600 lm
    (lamp power: Auto/Normal)

  • Center-to-corner uniformity

    0.8

  • Contrast

    8,000:1 (full on/off) (During RGB signal input, lamp power: Normal)

  • Resolution

    1,280 x 800 pixels (Input signals that exceed this resolution will be converted to 1,280 x 800 pixels.)

  • HDMI

    (Horizontal) 15-100 kHz; (Vertical) 24-120 Hz; (Dot clock) 25-162 MHz

  • RGB (analog)

    (Horizontal) 15-100 kHz; (Vertical) 24-120 Hz; (Dot clock) 162 MHz or lower

  • YPBPR (YCBCR)

    fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
    fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
    fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
    fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
    fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
    fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
    fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
    fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
    fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
    fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
    fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]

  • Video/S-Video

    (fH) 15.75/15.63 kHz (fV) 50/60 Hz [NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM]

  • Keystone correction range

    Vertical: +/-15 deg.

  • Installation

    Ceiling/floor, front/rear (Menu setting)

  • Built-in speaker

    7cm x 3cm oval shape x 1, output power 10 W (monaural)

  • HDMI IN

    HDMI 19-pin x 1 (Deep color, compatible with HDCP), audio signal: linear PCM (Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz)

  • COMPUTER 1 IN

    D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1]

  • COMPUTER 2 IN

    D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1]

  • MONITOR OUT

    D-sub HD 15-pin (female) x 1 (The signal selected from computer input 1/2 is output.)

  • VIDEO In

    Pin jack x 1

  • S-VIDEO In

    Mini DIN 4-pin x 1

  • COMPUTER AUDIO 1 IN

    M3 x 1 (L-R x 1)

  • COMPUTER AUDIO 2 IN

    M3 x 1 (L-R x 1)

  • VIDEO AUDIO IN

    Pin jack x 2 (L x 1, R x 1)

  • S-VIDEO AUDIO IN

    Pin jack x 2 (L x 1, R x 1)

  • AUDIO OUT

    M3 x 1 (L-R x 1) for output (variable)

  • LAN

    RJ-45 x 1 (for network connection, 100BASE-TX/10BASE-T, compliant with PJLink (class 1))

  • Mini USB

    1 for servicemen (for interactive function on PT-CW331RU/CX301RU)5

  • Cabinet materials

    Molded plastic (PC)

  • Noise level

    35 dB (Lamp power: Normal); 30 dB (Lamp power: Eco)6

  • Operating temperature

    5 deg. C-40 deg. C [41 deg. F-104 deg. F] (Less than 762 m [2, 500 ft] above sea level);
    5 deg. C-35 deg. C [41 deg. F-95 deg. F] (between 762 and 1, 524 m [2, 500 ft and 5, 000 ft] above sea level);
    5 deg. C-30 deg. C [41 deg. F-86 deg. F] (between 1, 524 and 3, 048 m [5, 000 ft and 10, 000 ft] above sea level)

  • Operating humidity:

    20-80 % (no condensation)

  • Dimensions (W X H X D)

    357 x 250 x 367mm / 14.06 x 9.84 x 14.45"
    (with legs at shortest position)

  • Weight

    7.5kg / 16.53lbs

1 Accessories for Panasonic PT-CW240U Ultra-Short Throw 1-Chip DLP Projector, 2600 Lumens, 16:10 Aspect Ratio, 10W Speaker Output, 240W UHM Lamp, HDMI/VGA/USB

  • All Accessories (1)
  • Stands (1)

About Panasonic PT-CW240U

Why settle for less when you can experience the high-quality, innovative, and reliable Panasonic PT-CW240U Ultra-Short Throw 1-Chip DLP Projector Designed with a WXGA resolution of 1280x800, this projector delivers clear, detailed, and vibrant images, making it an ideal choice for both business and educational settings.

Boasting a high brightness level of 2600 lumens, the PT-CW240U ensures easy-to-see image projection in various lighting conditions. Whether you're in a brightly lit office or a dimly lit classroom, this projector maintains its effectiveness, providing you with a superior viewing experience.

One of the standout features of this projector is its ultra-short throw distance. Capable of projecting wide 80-inch images from less than 2ft away, it eliminates the common issues of presenter's shadow on the screen and glares from the projection light. This makes it a perfect solution for spaces where the projector needs to be close to the screen or wall.

The PT-CW240U is not just about high-quality visuals. It also comes equipped with a built-in 10W speaker, delivering clear and powerful audio to complement your presentations or videos.

For seamless connectivity, this projector features multiple input terminals including HDMI, VGA, and USB. Whether you want to connect it to a computer, a digital device, or a network via a wired LAN terminal, the PT-CW240U has got you covered.

Additionally, the long lamp replacement cycle of 5,000 hours on eco mode reduces maintenance hassle and costs, while minimizing environmental impact. The projector's "Wall Color Setting" mode corrects the color schemes of the projected image when projecting on non-white surfaces, preventing color irregularities and ensuring a consistent, high-quality projection every time.

Experience the durability, user-friendliness, and superior performance of the Panasonic PT-CW240U Ultra-Short Throw 1-Chip DLP Projector, a reliable solution for your projection needs.

Panasonic PT-CW240U Features

  • High-quality DLP projector with WXGA resolution (1280x800) for clear and detailed images
  • Ultra-short throw distance allows for 80-inch image projection from less than 2ft away
  • High brightness level of 2600 lumens ensures easy-to-see image projection in various lighting conditions
  • Comes equipped with a built-in 10W speaker for clear and powerful audio
  • Multiple input terminals including HDMI, VGA, and USB for seamless connectivity
  • Long lamp replacement cycle of 5,000 hours on eco mode reduces maintenance hassle and costs

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience vibrant visuals with 2600 Lumens, perfect for well-lit meeting rooms.
  • Ultra-short throw lens eliminates shadows, ideal for interactive whiteboard use.
  • WXGA resolution (1280x800) ensures clear, detailed images for professional presentations.
  • Enjoy up to 5000 hours of lamp life in Eco mode, reducing maintenance costs.
  • HDMI and VGA connectivity options support a wide range of devices for seamless setup.
  • Built-in 10W speaker delivers clear audio, enhancing multimedia presentations.

What's in the box:

  • Panasonic PT-CW240U Ultra-Short Throw 1-Chip DLP Projector
  • Power Cord
  • Power Cord Cover
  • Wireless Remote Control Unit
  • Battery for Remote Control (Lithium Coin Cell Type)
  • Computer Cable (1.8 m for VGA)
  • Panasonic 3 Year Parts & Labor for Projector & 90 Day for Lamp Limited Warranty
