Panasonic PT-CW330U Specifications

  • Panel Size

    16.5 mm (0.65 in) diagonal (16:10 aspect ratio)

  • Display Method

    DLP chip x 1, DLP projection system

  • Pixels

    1024000 (1,280 x 800) pixels

  • Lens

    Fixed (0.35:1 Throw ratio), manual focus, F 2.8, f 7.51mm

  • Lamp

    280 W UHM lamp

  • Lamp replacement cycle (Normal / Eco)

    3,000 /4,000 hours

  • Screen size (diagonal)

    1.78-2.54 m (70-100 in) (16:10 aspect ratio)

  • Color reproducibility

    Full color (16,777,216 colors)

  • Brightness

    3,100 lm (lamp power: Auto/Normal)4

  • Center-to-corner uniformity

    80%

  • Contrast

    8,000:1 (full on/off) (During RGB signal input, lamp power: Normal)

  • Resolution

    1,280 x 800 pixels (Input signals that exceed this resolution will be converted to 1,280 x 800 pixels.)

  • HDMI

    (Horizontal) 15-100 kHz; (Vertical) 24-120 Hz; (Dot clock) 25-162 MHz

  • RGB (analog)

    (Horizontal) 15-100 kHz; (Vertical) 24-120 Hz; (Dot clock) 162 MHz or lower

  • YPBPR (YCBCR)

    fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
    fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
    fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
    fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
    fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
    fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
    fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
    fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
    fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
    fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
    fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]

  • Video/S-Video

    (fH) 15.75/15.63 kHz (fV) 50/60 Hz [NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM]

  • Keystone correction range

    Vertical: +/-15deg.

  • Installation

    Ceiling/floor, front/rear (Menu setting)

  • Built-in speaker

    7cm x 3cm oval shape x 1, output power 10 W (monaural)

  • HDMI IN

    HDMI 19-pin x 1 (Deep color, compatible with HDCP), audio signal: linear PCM (Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz)

  • COMPUTER 1 IN

    D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1]

  • COMPUTER 2 IN

    D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1]

  • MONITOR OUT

    D-sub HD 15-pin (female) x 1 (The signal selected from computer input 1/2 is output.)

  • VIDEO In

    Pin jack x 1

  • S-VIDEO In

    Mini DIN 4-pin x 1

  • COMPUTER AUDIO 1 IN

    M3 x 1 (L-R x 1)

  • COMPUTER AUDIO 2 IN

    M3 x 1 (L-R x 1)

  • VIDEO AUDIO IN

    Pin jack x 2 (L x 1, R x 1)

  • S-VIDEO AUDIO IN

    Pin jack x 2 (L x 1, R x 1)

  • AUDIO OUT

    M3 x 1 (L-R x 1) for output (variable)

  • LAN

    RJ-45 x 1 (for network connection, 100BASE-TX/10BASE-T, compliant with PJLink (class 1))

  • Mini USB

    1 for servicemen (for interactive function on PT-CW331RU/CX301RU)5

  • Cabinet materials

    Molded plastic (PC)

  • Noise level

    37 dB (Lamp power: Normal); 33 dB (Lamp power: Eco)

  • Power Supply

    100-240 V AC, 50/60 Hz

  • Power Consumption

    340 W (0.5 W when STANDBY MODE set to ECO, 6.0 W when STANDBY MODE set to NORMAL.)

  • Operating temperature

    5deg.C-40deg.C [41deg.F-104deg.F] (Less than 762 m [2,500 ft] above sea level);
    5deg.C-35deg.C [41deg.F-95deg.F] (between 762 and 1,524 m [2,500 ft and 5,000 ft] above sea level);
    5deg.C-30deg.C [41deg.F-86deg.F] (between 1,524 and 3,048 m [5,000 ft and 10,000 ft] above sea level)

  • Operating humidity

    20-80 % (no condensation)

  • Dimensions (W x H x D):

    357 x 250 x 367mm / 14.05 x 9.84 x 14.44" (with legs at shortest position)

  • Weight

    Approximately 7.7 kg (17.0 lbs)

1 Accessories for Panasonic PT-CW330U WXGA Ultra-Short Throw DLP 3D Ready Projector, 3100 Lumens, 16:10 Aspect Ratio, 10W Speaker, 280W UHM Lamp, HDMI/USB

  • All Accessories (1)
  • Laptop Stand (1)

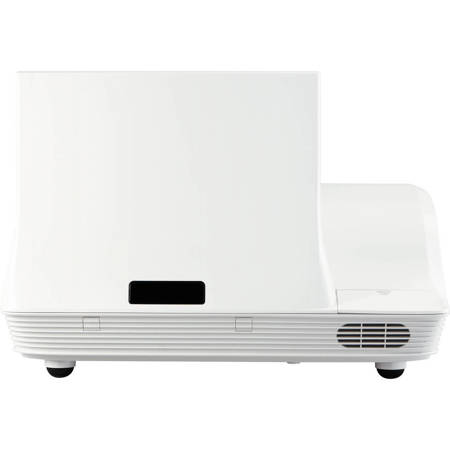

About Panasonic PT-CW330U

The Panasonic PT-CW330U short throw DLP projector with WXGA resolution (1,280 x 800) and 3,100 lumens of brightness is an ideal solution for the classroom or office. The convenient ultra-short throw distance needed between the projector and image surface allows the projector to be the perfect and ideal solution for classrooms and such applications.

The PT-CW330U is able to project images onto a wide 80-inch screen with a short projection distance of less than 2ft. there is no need to worry about the presenter's shadow on the screen and glares from the projection light. The high brightness of up to 3,100 lm and a high contrast ratio of 8,000:1 ensures bright and easy-to-see image projection for all kinds of environments while maintaining its effectiveness in brightly lit rooms. Additionally, the long lamp replacement cycle for the PT-CW330U of 4000 hours on eco mode reduces the hassle and ongoing costs of maintenance, while minimizing environmental impact.

The PT-CW330U comes equipped with a built-in 10 watt speaker and a HDMI digital input terminal. In addition to the HDMI input terminal, the projector has: 2 sets of computer (RGB) input terminals, a wired LAN terminal and a serial (RS-232C) terminal for external control. These features support a wide range of system architectures for portable or ceiling-mounted use. The projector's "Wall Color Setting" mode corrects the color schemes of the projected image when projecting on non-white surfaces to prevent color irregularities.

What's in the box:

  • Panasonic PT-CW330U WXGA Ultra-Short Throw DLP 3D Ready Projector
  • Power Cord
  • Power Cord Cover
  • Wireless Remote Control Unit
  • Battery for Remote Control (Lithium-Coin Cell Type x 1)
  • Computer Cable (5.9'/1.8 m & for VGA)
  • Panasonic Warranty (3 Yr on Parts & Labor & 90 Day on Lamp)
