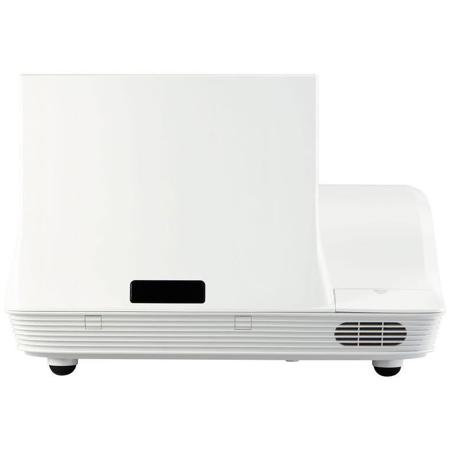

Panasonic PT-CW331RU WXGA Interactive Ultra-Short Throw 1 Chip DLP Projector, 1280x800, 3100 Lumens

Ultra-Short Throw and Interactive
80-inch Wide Screen Images with a Projection Distance of 0.60m (1.97')
The projector can be wall-mounted with an optional wall mount bracket. There is no need to worry about the presenter's shadow on the screen and glare of the projection light.

Projection distance for 80-inch screen
• PT-CW331R/CW330/CW241R/CW240: 0.60 m (1.97') (16:10 aspect ratio)
• PT-CX301R/CX300: 0.71 m (2.33') (4:3 aspect ratio)

The Interactive Functions Allows Writing on a Projected Image
You can write or draw figures on the projected image with the Interactive Pen/Pointer. The scanning camera frame rate of the PT-CW331R/CW241R/CX301R, which is twice as high as that of their existing products; ensures smooth writing. In addition, two users can write simultaneously, to make classes and presentations more effective. It is easy to store the words and figures in a computer for information sharing.
• Interactive function: PT-CW331R/CW241R/CX301R only.
• The frame rate of PT-CW331R/CW241R/CX301R is 60 fps; that Of their existing model, PT-TW231R, is 30 fps.

Using the Interactive Functions
Benefits of Functions
• You can write notes and point out information on the screen with the interactive pen/pointer.
• During Presentations you can operate the computer by interactive pen/pointer on the projected image surface.
• No need for dedicated interactive whiteboards
• You can instantly store the decisions made during meetings and share them with others.

Basic Interactive Functions
• Functions of the icons in the tool bar
• Editing and pointing tools

Convenient Interactive Features
Auto Calibration
The auto calibration helps to reduce setting time. Manual calibration is also available by touching four points with the Interactive Pen/Pointer.

Dual pen support
Select the dual pen mode (Half screen mode/Full screen mode). Two users can write simultaneously, making your classes and presentations more efficient.

Half Screen Mode
The drawing screen is divided into two sections. Individually select color and line width for each screen.

Full Screen Mode
Write on the full screen. The color and line width of the two pens are same.

Functionality improved
The faster frame rate ensures smooth, comfortable writing.

High Brightness, 3D and Superb Performance
High Brightness of 3,100 lm
To ensure bright and easy-to-see image projection, the high brightness of 3,100 lm and high contrast ratio of 8000:1, is highly effective for lessons and presentations in classrooms and meeting rooms.
• Brightness by model: PT-CW331R/CW330/CX301R/CX300: 3,100 lm, PT-CW241R/CW240: 2,600 lm
• During RGB signal input, Lamp power: Normal.

3D Projection Ensuring Powerful Images
The projector delivers powerful 3D images. You can enjoy powerful 3D images with a reproduction apparatus and the 3D glasses. The combination of this system with the short-throw function enables space-saving 3D projection, helping you create innovative and attractive presentations. To view 3D images, DLP Link active-shutter 3D glasses are separately required. (In the active shutter system, the right/left liquid crystal shutter is opened and closed alternately according to projected images.) (The active-shutter 3D glasses with refresh rate of 96-144 Hz are recommended. 3D images of 60 Hz can also be viewed by a 120 Hz compatible device.)

Wide Range of Applications Including Events, Exhibitions, Displays and Museums
Events with dramatic impact
3D projection makes your event more successful.

Exhibitions with promotional effects
Powerful large-screen 3D projection in limited booth space, enhancing the appeal of products and services.

Highly realistic museums
Powerful 3D projection is real and appealing, increasing visitors' satisfaction.

Appealing displays
Short-throw, large screen (100 inch max.) projection is effective for showroom/shop window display.

Supporting Various 3D Systems
HDMI Input Terminal Supports 3D
The HDMI input terminal supports 3D. Connect a 3D Blu-ray player to the projector to project Blu-ray 3D images.

DLP Link
As synchronized signals are contained between the frames (images) for the left and right eyes, you can build a 3D system without the need for the optional emitter.

3D-Compatible Signal
Supports Frame Packing, Side-by-Side, Top-and-Bottom and Frame Sequential method.

[Caution when viewing 3D images]
• View 3D images at a distance at least three times further than the height of the screen.
• Each person views and feels the 3D images differently. In some cases, the effects may cause viewers to feel sick.
• If you see double 3D images or do not see stereoscopic images, you may feel fatigue or discomfort.
• If you feel sick, immediately stop viewing 3D images.
• Children under the age of six should not view 3D images.

The DLP Systems Maintains Long-lasting, Stable Performance
In the DLP system, the image quality does not degrade with time due to long life of the device. You can use the projector for various systems over a long period without worry of quality loss.

10W High-output Speaker Meet Your Meeting/Seminar Room Needs
The volume level of the 10 W high-output speaker is enough for meeting rooms and classrooms; you do not need to use an external speaker. You can make multi-media presentations.

Ensuring a Long Lamp Replacement Cycle
The lamp replacement cycle for the PT-CW331R/CW330/CX301R/CX300 is 4,000 hours; and for the PT-CW241R/CW240 is 5,000 hours. Such long replacement cycles reduce the hassle and the cost of maintenance, while minimizing environmental impact.

Environmentally Friendly Standby Power Consumption of Only 0.5W
The standby power consumptions is as low as 0.5 W, reducing running cost and effects on the environment.

Extensive interfaces with an HDMI Input Terminal
Extensive interfaces, including two sets of computer (RGB) input terminals, one set of computer (RGB) output terminals and an HDMI input terminal, allow a wide range of system configurations.
• Mini USB
• HDMI IN
• MONITOR OUT
• COMPUTER 1 IN
• LAN
• COMPUTER 1 AUDIO IN
• S-VIDEO IN
• S-VIDEO AUDIO IN
• VARIABLE AUDIO OUT
• SERIAL IN
• COMPUTER 2 IN
• COMPUTER 2 AUDIO IN
• VIDEO IN
• VIDEO AUDIO IN

Audio Can Be Output in Standby Mode
Audio can be output from the audio output terminal in Standby mode. This function is useful when the audio output terminal is connected to the external audio system via the projector.

Crestron Connected Compatible
The wired LAN terminal supports Crestron's application software, "Crestron Connected", which can control various system devices by using a personal computer connected to the network.

Convenient Functions
"Wall Color Setting" Convenient for a Classroom with no Screen
The PT-CW331R/CW330/CW241R/CW240/CX301R/CX300 has an image mode performing optimal correction when projecting onto a blackboard and wall. You can select an appropriate color for wall projection among five colors (white, light yellow, light blue, pink and dark green (for blackboards)).

Easy to Replace the Lamp

Replace the lamp from the side of the projector. When replacing the lamp, there is no need to detach the projector from the ceiling bracket or the wall mount bracket.

"Security Bar" Useful for Protection against Theft
The PT-CW331R/CW330/CW241R/CW240/CX301R/CX300 is equipped with the "security bar" for preventing theft

Wireless Remote Control is Convenient When Using More Than One Projector
A maximum of seven IDs (six IDs [ID1]-[ID6] and [ALL] ID) can be set up, allowing individual remote control of each projector.
