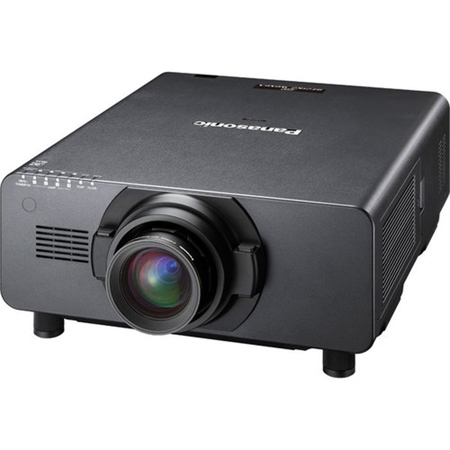

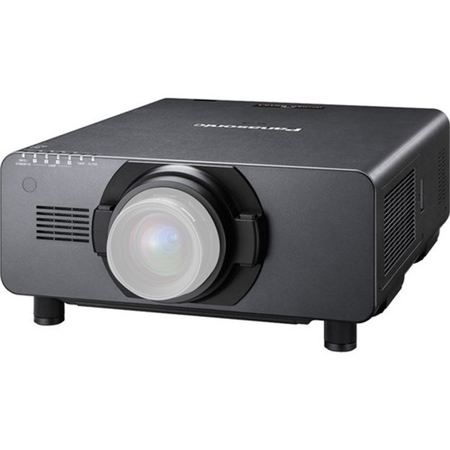

Panasonic PT-DS20K2U 20,000 Lumens, 3DLP, SXGA+ (1400 x 1050) DIGITAL LINK Projector, No Lens

Splendid Image from a Compact Body

Dynamic Iris for a High 10,000:1 Contrast Ratio
Panasonic's Dynamic Iris uses a scene-linking aperture mechanism to achieve a remarkable 10,000:1 contrast without lowering its high brightness. This helps to reproduce deeper, richer blacks, and provides images with more detailed textures.

Detail Clarity Processor 3 Gives Natural Clarity to Even the Finest Details

This unique Panasonic circuit optimizes the sharpness of each image, based on the super-high-, high-, medium-, and low-frequency components of the extracted image information. The resulting images have more natural, lifelike expression.

System Daylight View 2 for Enhanced Color Perception

This unique Panasonic technology optimizes image quality to improve the color perception of the projected image in bright rooms. With a brightness of 20,000lm, it provides highly comfortable viewing even in bright lighting, and allows viewers to concentrate easily on the images.

DICOM Simulation Mode

This imaging mode is similar to DICOM part 14, which is a medical imaging standard. It reproduces X-ray images with remarkable clarity.

Acitve 3D Projection Capability (PT-DZ21K/DS20K)

The series is compatible with both passive and active 3D projection systems. It combines with either a separate, external 100/120/144 Hz drive with IR emitter and active shutter glasses, or an active filter and passive glasses, for viewing 3D images.Tested 3D Glasses Compatible with Panasonic Projectors

High Reliability and Low TCO with Easy Maintenance

Low TCO and an Environmentally Friendly Design

The PT-DZ21K2U Series projectors lower the total cost of ownership (TCO) because they have a lamp replacement cycle of up to 3,000 hours. Their environmentally friendly design also includes a low power consumption of 2,300 W.

Four-Lamp System Enables Stable, Extended Operation
The four-lamp system allows the projector to keep working even if a lamp should fail. The Lamp Relay mode also operates the lamps alternately to enable 24/7 projection. Quad, Triple, Dual and Single Lamp modes can be used.

Easy Lamp Replacement

For easier maintenance, you can replace the lamp from the rear. This makes it easy to replace a lamp while the projector is still in the mounting bracket or dual stacked.

Liquid Cooling System Attains a High Level of Reliability

This new liquid cooling system directly cools the DLP chip to improve performance and enable operation up to 45 DegreeC (113 Degree F). It allows quiet (46 dB) and versatile use while stabilizing performance. It also helps to make the body compact. And the system is hermetically sealed, so you don't need to replenish the liquid.

Eco Filter that Needs No Maintenance for up to 12,000 Hours

The Eco Filter has an electrostatic Micro Cut Filter that collects minute dust particles with an ion effect. It combines with the dust-resistant cabinet to enable long-term use even under harsh conditions. Its maintenance cycle of up to 12,000 hours reduces hassle, and the environmental design lets you wash the filter with water and reuse it.

System and Installation Flexibility with Diverse Functions

Geometric Adjustment for Specially Shaped Screens (PT-DZ21K/DS20K)

This function adjusts the image for projection onto spherical, cylindrical and other specially shaped screens. You can make the adjustment easily using only the remote control, with no external equipment needed. New 4-Corner Adjustment and Keep Aspect Off functions also simplify fine adjustment.

Each corner can be independently adjusted, and up to three sets of adjusted data can be stored. You can keep the aspect on when correcting curves. To make effective use of the screen area, you can also turn the aspect-keeping function off.

Optional Upgrade Kit (ET-UK20) Featuring Geometry Manager Pro (PT-DZ21K/DS20K)

The new Geometry Manager Pro software included in the optional upgrade kit ET-UK20 supports Color Matching, Edge Bledning, uniformity correction, and other useful functions for multi-projector setups (max. 32 units). It also allows creative masking using four lines or bitmap data. And its flexible and complex geometric adjustment capability suits a wide variety of screen shapes. For specific installation instructions, refer to the following manual. Operating Instructions of Geometry Manager Pro (Including ET-UK20)

Masking Function (Custom Masking)

Line masking & Bitmap masking

Multi-Unit Brightness Control

This function automatically corrects the brightness fluctuations that occur over time in the individual projectors of a multi-screen system. Up to eight projectors can be controlled by connecting to each other via a hub, and this can be increased to a maximum of 2,048 projectors by using "Multi Projector Monitoring & Control Software Ver. 2.7."

Multi-Screen Support System Seamlessly Connects Multiple Screens

The Multi-Screen Support System optimally adjusts multiple screens: Edge blending, Color matching and Digital image enlarging.

Edge Blending

The edges of adjacent screens can be blended and their luminance controlled.

Color Matching

This function corrects for slight variations in the color reproduction range of individual projectors.

Digital Image Enlarging

The PT-DZ21K2U Series features a digital zoom function that allows images to be enlarged up to 10 times (horizontally and vertically). Up to 100 units (10 x 10) can be edge-blended at a time to create large, multi-screen images.

Backup Input Setting Assures Reliability and Optimizes Performance

The Backup Input Setting allows the signal to be switched to the backup input signal as seamlessly as possible when the input signal is disrupted. This function ensures high reliability and is ideal for critical control rooms, projection mapping, staging, and other applications where images should not be interrupted.

Firmware Update Required

The Backup Input Setting is possible by updating the projector's firmware to MAIN Ver. 4.03 or later. When the main version of the firmware is lower than 4.03, access the latest firmware version information page on PASS to download the latest upgrade tool.

Note: To check the firmware version, press the button on the remote control. The [MAIN VERSION] of the firmware can be checked on the [STATUS] menu screen.

Portrait Mode Capability (Option)

New Portrait mode allows portrait projection with the PT-DZ21K2U Series. By mounting the optional ET-LAD510P or ET-LAD510PF lamp unit and updating the projector's firmware to MAIN Ver. 2.00 or later, the PT-DZ21K2U Series can be installed in portrait orientation with its terminal side surface facing downward. Portrait mode adds more solutions for projection mapping, staging, and other needs. Note: Please contact your sales representative for information on portrait orientation.

Flexible Installation

The wide adjustment range of the powered horizontal/vertical lens shift function can be easily adjusted with the remote control. The unit can also be rotated 360 Degree vertically, to accommodate various installation conditions. The lens-centered design contributes to easy installation.
