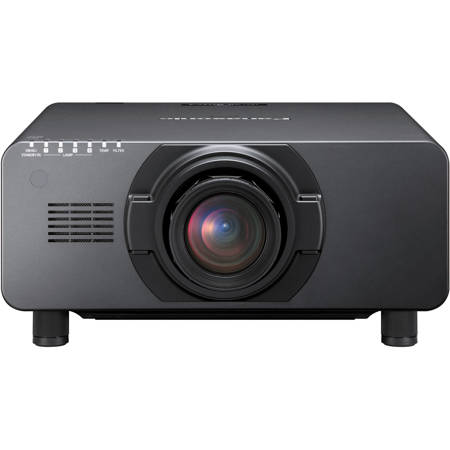

Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector, 17000 Lumens, WXGA (1366x768) Resolution, 3D Color Management System, No Lens

SKU: PCPTDW17KU

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Panasonic PT-DW17KU Specifications

  • Panel Size

    21.6 mm (0.85 inches) diagonal (16:9 aspect ratio)

  • Display Method

    DLP chip x 3, DLP projection system

  • Pixels

    1,049,088 (1,366 x 768) x 3, total of 3,147,264 pixels

  • Lamp

    465 W UHM lamp x 4, replacement cycle of up to 2,000 hours

  • Brightness

    17,000 lm (four-lamp)2

  • Contrast Ratio

    10,000:1 (full on/off, with dynamic iris set to "3" )

  • Resolution

    1,366 x 768 pixels (Input signals that exceed this resolution will be converted to 1,366 x 768 pixels.)

  • Lens

    Optional powered zoom and fixed-focus lenses

  • Projection Size (Diagonal)

    1.78-15.24 m (70 - 600 inches), 1.78 - 7.62 m (70 - 300 inches) with the ET-D75LE50, 16:9 aspect ratio

  • Optical Axis Shift

    Vertical: +/-70 % (+/-60 % with the ET-D75LE6) from center of screen (powered)
    Horizontal: +/-30 % (+/-20 % with the ET-D75LE6) from center of screen (powered)

  • Scanning Frequency - HDMI/DVI-D

    480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA4 (1,920 x 1,200), compatible with non-interlaced signals only, dot clock: 25-162 MHz

  • Scanning frequency - RGB

    fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 20-162 MHz

  • Scanning Frequency - Video/Y/C

    fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
    fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]

  • DVI-D in

    DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)

  • HDMI IN

    HDMI 19-pin x 1 (Deep Color, compatible with HDCP)

  • RGB 1 IN

    BNC x 5 (RGB/YPBPR/YCBCR/YC x 1)

  • RGB 2 IN

    D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)

  • VIDEO In

    BNC x 1 (composite video)

  • SERIAL IN

    D-sub 9-pin (female) x 1 for external control (RS-232C compliant)

  • SERIAL OUT

    D-sub 9-pin (male) x 1 for link control (RS-232C compliant)

  • REMOTE 1 IN

    M3 x 1 for wired remote control

  • REMOTE 1 OUT

    M3 x 1 for link control (for wired remote control)

  • REMOTE 2 IN

    D-sub 9-pin (female) x 1 for external control (parallel)

  • LAN

    RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink)

  • Keystone correction range

    Vertical: +/-40deg., horizontal: +/-15deg.

  • Power Supply

    200-240 V AC, 50/60 Hz (Max current requirements: 12 A at 200 V)

  • Power Consumption

    2,300 W (0.3 W with STANDBY MODE set to ECO,3 9 W with STANDBY MODE set to NORMAL.)

  • Dissipation BTU

    Max. 7,848 BTU/hour (without light output: 7,585 BTU/hour)

  • Operation noise

    49 dB (quad lamp operation)

  • Operating Environment

    Operating temperature: 0-45 deg.C (32-113 deg.F)

  • Dimensions (WxHxD)

    24.41x11.46x31.50" (62.00x29.10x80.01cm)

  • Weight

    Approximately 94.8lbs (43.00kg)

  • UPC Code

    885170062580

0 Accessories for Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector, 17000 Lumens, WXGA (1366x768) Resolution, 3D Color Management System, No Lens

About Panasonic PT-DW17KU

The Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector is ideally suited for fixed installations and public display venues including independent cinema, live events, educational institutions, staging and public advertising as well as premium home theatre applications. This unique Panasonic technology optimizes image quality to improve the color perception of the projected image in bright rooms. It provides highly comfortable viewing even in bright lighting and allows viewers to concentrate easily on the images. Featuring Texas Instruments DLP and WXGA (1366 x 768), the PT-DW17KU projector delivers outstanding 17,000 lumen brightness and 10,000:1 contrast ratio. The four-lamp system allows the projector to keep working even if a lamp should fail. The lamp relay mode also operates the lamps alternately to enable 24/7 projection.

The 3-chip system with DLP technology delivers great image resolution, considered among the most advanced projector engines. This gives superior light utilization for high brightness, digital processing for low noise and linear white balance, extended device life for minimal image degradation and a quick response that eliminates afterimages.

With fantastic durability, bright light output, excellent color quality and full HD playback from a variety of digital and analog input sources; the PT-DW17KU is an ideal partner for modern, high-end laptops with full HD resolution.

Panasonic PT-DW17KU Features

  • DICOM Simulation Mode: This imaging mode is similar to DICOM part 14, which is a medical imaging standard. It reproduces X-ray images with remarkable clarity
  • Edge blending: The edges of adjacent screens can be blended and their luminance controlled
  • Color matching: This function corrects for slight variations in the color reproduction range of individual projectors. The PC software assures easy, accurate control
  • Multi-screen processor: The projector can project large, multi-screen images without any additional equipment. Up to 100 units (10 x 10) can be edge-blended at a time
  • Multi Projector Monitoring & Control Software: Panasonic's original Multi Projector Monitoring and Control Software Ver. 2.7 freeware lets you control and monitor multiple projectors at the same time over a wired LAN. If a problem occurs, an alarm message is sent to the monitoring / controlling PC
  • Multi-Unit Brightness Control: This function automatically corrects the brightness fluctuations that occur over time in the individual projectors of a multi-screen system. Up to eight projectors are controlled by connecting to each other via hub and it can be increased to maximum of 2,048 projectors
  • Flexible Installation: The wide adjustment range of the powered horizontal / vertical lens shift function can be easily adjusted with the remote control. The unit can also be rotated 360deg. vertically, to accommodate various installation conditions
  • System Daylight View 2 for Enhanced Color Perception: This unique Panasonic technology optimizes image quality to improve the color perception of the projected image in bright rooms. With a brightness of 20,000 lumens, it provides highly comfortable viewing even in bright lighting
  • Detail Clarity Processor 3 Gives Natural Clarity to Even the Finest Details: This unique Panasonic circuit optimizes the sharpness of each image based on the superhigh high medium and low frequency components of the extracted image information. Resulting images have more natural lifelike expression
  • Low TCO and an Environmentally Friendly Design: The projector lower the total cost of ownership (TCO) because they have a lamp replacement cycle of up to 2000 hours. Their environmentally friendly design also includes a low power consumption of 2300W
  • Liquid Cooling System Attains a High Level of Reliability: This new liquid cooling system directly cools the DLP chip to improve performance and enable operation up to 113deg.F (45deg.C). It allows quiet (49 dB) and versatile use while stabilizing performance
  • Eco Filter that Needs No Maintenance for up to 12,000 Hours: The eco filter has an electrostatic micro cut filter that collects minute dust particles with an ion effect. It combines with the dust-resistant cabinet to enable long-term use even under harsh conditions
  • Easy Lamp Replacement: For easier maintenance, you can replace the lamp from the rear. This makes it easy to replace a lamp while the projector is still in the mounting bracket or dual stacked
  • Dynamic Iris for a High 10,000:1 Contrast Ratio: Panasonic's dynamic iris uses a scene-linking aperture mechanism to achieve a remarkable 10,000:1 contrast without lowering its high brightness. This helps to reproduce deeper, richer blacks and provides images with more detailed textures
  • Four-Lamp System Enables Stable, Extended Operation: The four-lamp system allows the projector to keep working even if a lamp should fail. The Lamp Relay mode also operates the lamps alternately to enable 24/7 projection. Quad, triple, dual and single lamp modes can be used
  • Advanced Technologies for Excellent Image Quality: 3D color management system / Full 10-bit image processing / Progressive cinema scan (3:2 pulldown) / Dynamic sharpness control / Digital noise reduction / IP conversion / AI scene control / 2:2 pulldown mode / sRGB compatibility

Key Features

  • DICOM Simulation Mode
  • Edge blending: The edges of adjacent screens can be blended & their luminance controlled
  • Color matching: This function corrects
  • Multi-screen processor
  • Multi Projector Monitoring & Control Software
  • Multi-Unit Brightness Control

What's in the box:

  • Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector
  • Power Cord with Secure Lock
  • Wireless/Wired Remote Control Unit
  • AA-Type Batteries (2)
  • Panasonic 3 Year Warranty (Projector)
  • Panasonic 90 Day Warranty (Lamp)
