Panasonic PT-DW750BU WXGA 1-Chip DLP Projector, Black
See all Panasonic items

Panasonic PT-DW750BU WXGA 1-Chip DLP Projector, 1280x800, 7000 Lumens, 25.6-35.7mm Lens, DIGITAL LINK, Black

SKU: PCPTDW750BU
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Panasonic PT-VMW61: Picture 1 regular
Panasonic PT-VMW61 WXGA LCD Laser Projector, 6200 Lumens, White
$5,081.00$2,790.99
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Panasonic PT-DW750BU Specifications

  • Brightness

    7000lm (dual-lamp, LAMP MODE: NORMAL)

  • Power supply

    120V AC, 7.5 A, 50/60Hz, 220-240V AC, 4.3 A, 50/60 H

  • Center-to-corner uniformity

    90%

  • Power consumption

    120V AC: TBD (0.3W when STANDBY MODE set to ECO, 3W when STANDBY MODE set to NORMAL)
    220-240V AC: TBD (0.3W when STANDBY MODE set to ECO, 3W when STANDBY MODE set to NORMAL)

  • Resolution

    1280 x 800 pixels (Input signals that exceed this resolution will be converted to 1280 x 800 pixels.)

  • DLP chip

    Panel size: 16.5mm (0.65") diagonal (16:10 aspect ratio)
    Display method: DLP chip, DLP projection system
    Pixels: 2304000 (1920 x 1200) pixels

  • Scanning frequency 1

    HDMI/DVI-D/DIGITAL LINK:
    Compatible with HDCP
    480i (525i)
    576i (625i)
    480p (525p)
    576p (625p)
    720 (750)/60p
    720 (750)/50p
    1080 (1125)/60i
    1080 (1125)/50i
    1080 (1125)/25p
    1080 (1125)/24p
    1080 (1125)/24sF
    1080 (1125)/30p
    1080 (1125)/60p
    1080 (1125)/50p VGA (640 x 480)-WUXGA(1920 x 1200) (compatible with non-interlaced signals only)
    dot clock: 25-162 MHz

    RGB: fH: 15-100 kHz
    fV: 24-120 Hz
    dot clock: 20-162 MHz

  • Lens

    Powered zoom (throw ratio 1.8-2.5:1), powered focus, F 1.7-1.9, f 25.6-35.7mm

  • Scanning frequency 2

    YPBPR (YCBCR) 1:
    fH: 15.75kHz
    fV: 60Hz [480i (525i)]
    fH: 37.50kHz
    fV: 50Hz [720 (750)/50p]
    fH: 27.00kHz
    fV: 24Hz [1080 (1125)/24p]
    fH: 31.50kHz
    fV: 60Hz [480p (525p)]
    fH: 33.75kHz
    fV: 60Hz [1035/60i]
    fH: 27.00kHz
    fV: 48Hz [1080 (1125)/24sF]
    fH: 15.63kHz
    fV: 50Hz [576i (625i)]
    fH: 33.75kHz
    fV: 60Hz [1080 (1125)/60i]
    fH: 33.75kHz

  • Lamp

    2x 310W UHM lamp

  • Scanning frequency 3

    YPBPR (YCBCR) 2:
    fV: 30Hz [1080 (1125)/30p]
    fH: 31.25kHz
    fV: 50Hz [576p (625p)]
    fH: 28.13kHz
    fV: 50Hz [1080 (1125)/50i]
    fH: 67.50kHz
    fV: 60Hz [1080 (1125)/60p]
    fH: 45.00kHz
    fV: 60Hz [720 (750)/60p]
    fH: 28.13kHz
    fV: 25Hz [1080/25p]
    fH: 56.25kHz
    fV: 50Hz [1080 (1125)/50p]

    Video/S-Video:
    fH: 15.75kHz
    fV: 60Hz [NTSC/NTSC4.43/PAL-M/PAL60]
    fH: 15.63kHz
    fV: 50Hz [PAL/PAL-N/SECAM]

  • Optical axis shift

    Vertical +60 %, -16 %; horizontal +30 %, -10 %; powered

  • Screen size (diagonal)

    1.27-15.24m (50-600"), 1.27-5.08m (50-200") with the ET-DLE055, 16:10 aspect ratio

  • Keystone correction range

    Vertical +/-40 deg., horizontal +/-15 deg.

  • Installation

    Ceiling/floor, front/rear

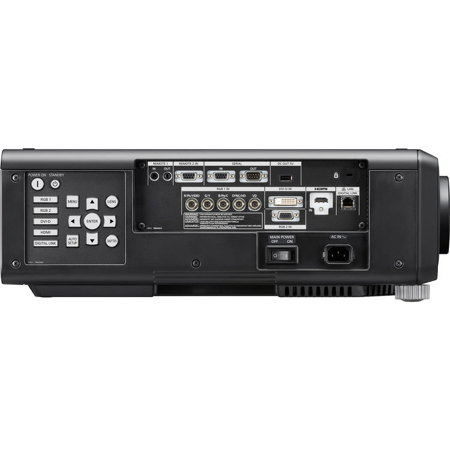

  • Terminals: HDMI IN

    HDMI 19-pin (Deep Color, compatible with HDCP) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p
    VGA (640 x 480)-WUXGA (1920 x 1200)
    compatible with non-interlaced signals only
    dot clock: 25-162 MHz

  • Terminals: DVI-D IN

    DVI-D 24-pin (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p
    VGA (640 x 480)-WUXGA (1920 x 1200)
    compatible with non-interlaced signals only
    dot clock: 25-162 MHz

  • Terminals: RGB 1 IN

    5x BNC (RGB/YPBPR/YCBCR)

  • Terminals: RGB 2 IN

    D-sub HD 15-pin (female) (RGB/YPBPR/YCBCR )

  • Terminals: VIDEO IN

    BNC (composite video)

  • Terminals: S-VIDEO IN

    Mini DIN 4-pin (S-Video)

  • Terminals: SERIAL IN

    D-sub 9-pin (female) for external control (RS-232C compliant)

  • Terminals: SERIAL OUT

    D-sub 9-pin (male) for link control (RS-232C compliant)

  • Terminals: REMOTE 1 IN

    M3 for wired remote control

  • Terminals: REMOTE 1 OUT

    M3 for link control (for wired remote control)

  • Terminals: REMOTE 2 IN

    D-sub 9-pin (female) for external control (parallel)

  • Terminals: LAN/DIGITAL LINK

    RJ-45 for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compatible with Art-Net, compliant with PJLink, Deep Color, compatible with HDCP

  • Cabinet materials

    Molded plastic

  • Operation noise

    Normal: 30dB/Eco: 28dB

  • Operating environment

    Operating temperature: 0 to 45 deg. C / 32 to 113 deg. F, operating humidity: 20-80 % (no condensation)

  • Dimensions (W x H x D)

    19.59 x 6.87 x 20.5" / 497.59 x 174.5 x 520.7mm (with supplied lens)

  • Weight

    Approximately 17.6kg / 38.8lbs (with supplied lens)

2 Accessories for Panasonic PT-DW750BU WXGA 1-Chip DLP Projector, 1280x800, 7000 Lumens, 25.6-35.7mm Lens, DIGITAL LINK, Black

  • All Accessories (2)
  • Lamps & Bulbs (1)
  • Laptop Stand (1)
Panasonic ET-LAD70 Lamp for PT-DZ780 Series Projectors
Panasonic ET-LAD70 Lamp for PT-DZ780 Series Projectors
$552.00
Recommended
Flashpoint Laptop Stand and Accessory Tray
Flashpoint Laptop Stand and Accessory Tray
$69.00
Recommended

About Panasonic PT-DW750BU

Whisper-Quiet, High-Quality Projection
The PT-DW750 has a dust resistant design, keeping the air inside the projector clean for longer periods of time. Its air filter-less design reduces the hassle of maintenance. Projecting 7,000 lumens at WXGA resolution, it's equipped with a unique liquid cooling system that reduces operation noise to just 30dB.

Brilliant Color, Detail and Clarity
The superb image quality of the PT-DW750 (with supplied lens) is made possible by the combined technologies of System Daylight View 2, Dynamic RGB Booster and Detail Clarity Processor 3, which optimize brightness and deliver outstanding color reproduction, even under the most challenging lighting conditions. It also offers DICOM Simulation mode for medical presentations and training and Rec. 709 mode for HDTV projection.

Reliable Around-the-Clock Operation
Ideal for public display, signage and staging, the PT-DW750 (with supplied lens) is optimized for seamless 24/7 operation. Dual lamps and Replay Mode ensure playback continues uninterrupted even if one lamp fails. Efficiency is a priority with a lamp life of 4,000 hours in Normal mode.

Flexible Integration and System Installation
The PT-DW750's Multi-Screen Support System seamlessly joins multiple screens with Edge blending, Color matching and Digital image enlarging, while the Geometric Adjustment function allows for easy projection onto curved or spherical surfaces. It is c ompatible with the Art-Net DMX protocol for lighting management, has abundant terminals and features a single cable DIGITAL LINK, which transmits 1080/60p video signal up to 150 m in Long Reach mode.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Panasonic PT-DW750BU WXGA 1-Chip DLP Projector
  • Standard Lens
  • Power Cord
  • Power Cord Secure Lock
  • Wireless/Wired Remote Control Unit
  • Batteries (2x R6/AA type)
  • Software CD-ROM (Logo Transfer Software & Multi Projector Monitoring & Control Software)
  • Panasonic Warranty
