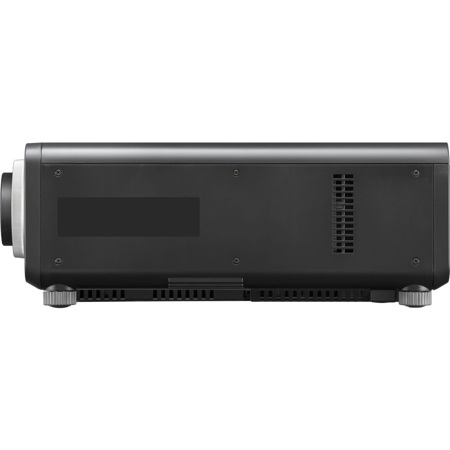

Panasonic 10000 Lumens DLP XGA Projector, 1024x768, Lens Not Included
See all Panasonic items

Panasonic 10000 Lumens DLP XGA Projector, 1024x768, Lens Not Included

SKU: PCPTDX100ULW
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Panasonic DLP XGA Projector Specifications

  • DLP Chip: Panel Size

    17.8mm (0.7") diagonal (4:3 aspect ratio)

  • Display Method

    DLP chip, DLP system

  • Pixels

    786,432 (1,024 x 768), total of 786,432 pixels

  • Lens

    Optional powered zoom/focus lenses and fixed-focus lens

  • Lamp

    2x 420W UHM lamps

  • Screen Size

    1.27-15.24m (50-600") (1.27-5.08m (50-200") with the ET-DLE055), 4:3 aspect ratio

  • Brightness

    10,000 lumens (dual lamp, LAMP MODE: NORMAL)

  • Center-to-corner Uniformity

    90%

  • Contrast

    10,000:1 (full on/full off, in dynamic iris 3 mode)

  • Resolution

    1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels)

  • Scanning Frequency

    HDMI/DVI-D: fH: 15-100kHz, fV: 24-120Hz, dot clock: 25-162 MHz

    RGB: fH: 15-100kHz, fV: 24-120Hz, dot clock: 162 MHz or lower

    YPBPR (YCBCR):
    525i (480i): fH 15.75kHz; fV 60Hz
    625i (576i): fH 15.63kHz; fV 50Hz
    525p (480p): fH 31.50kHz; fV 60Hz
    625p (576p): fH 31.25kHz; fV 50Hz
    750 (720)/60p: fH 45.00kHz; fV 60Hz
    750 (720)/50p: fH 37.50kHz; fV 50Hz
    1125 (1035)/60i: fH 33.75kHz; fV 60Hz

  • Scanning Frequency (Cont.)

    1125 (1080)/60i: fH 33.75kHz; fV 60Hz
    1125 (1080)/50i: fH 28.13kHz; fV 50Hz
    1125 (1080)/25p: fH 28.13kHz; fV 25Hz
    1125 (1080)/24p: fH 27.00kHz; fV 24Hz
    1125 (1080)/24sF: fH 27.00kHz; fV 48Hz
    1125 (1080)/30p: fH 33.75kHz; fV 30Hz
    1125 (1080)/60p: fH 67.50kHz; fV 60Hz
    1125 (1080)/50p: fH 56.25kHz; fV 50Hz

    Video/S-Video: fH: 15.75kHz, fV: 60Hz [NTSC/NTSC4.43/PAL-M/PAL60]
    fH: 15.63kHz, fV: 50Hz [PAL/PAL-N/SECAM]

  • Optical axis shift

    Vertical: +50% (powered) (+/-45 deg. with the ET-DLE085), horizontal: +/-10% (powered) (Optical axis shift function cannot be operated when used with the ET-DLE055)

  • Keystone Correction Range

    Vertical +/-40 deg. (+/-30 deg. with the ET-DLE085/ET-DLE055)

  • Installation

    Ceiling/floor, front/rear

  • Terminals

    HDMI in: HDMI 19-pin, Deep Color, compatible with HDCP,525i(480i), 625i(576i), 525p(480p), 625p(576p), 750(720)/60p, 750(720)50p, 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p, 1125(1080)/60p, 1125(1080)/50p
    VGA (640 x 480) - WUXGA (1,920 x 1,200)
    Dot Clock: 25 MHz-162 MHz (Compatible with non-interlaced signals only)

  • Terminals (Cont.)

    DVI-D in: DVI-D 24-pin, DVI 1.0 compliant, HDCP compatible, (for single link only) 525i(480i), 625i(576i), 525p(480p), 625p(576p), 750(720)/60p, 750(720)50p, 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p, 1125(1080)/60p, 1125(1080)/50p
    VGA (640 x 480) - WUXGA (1,920 x 1,200)
    dot clock: 25 MHz-62 MHz (Compatible with non-interlaced signals only)

  • Terminals (Cont.1)

    RGB 1 in: 5x BNC
    R: 0.7 Vp-p, 75Ohms,
    G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75Ohms,
    B: 0.7 Vp-p, 75Ohms
    HD, VD/SYNC: TTL, high impedance, positive/negative automatic
    (SYNC/HD and VD terminals do not accept tri-level sync signals)
    Y, PB, PR (Y, CB, CR): Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75Ohms
    S-Video signal: Y: 1.0 Vp-p, C: 0.286 Vp-p, 75Ohms
    RGB 2 in: D-sub HD 15-pin (female)

  • Terminals (Cont.2)

    3D SYNC 1 in/out: BNC, 1.0 Vp-p, 75Ohms
    Input: TTL, high impedance. Output: TTL, max. 10 mA
    3D SYNC 2 out: BNC, 1.0 Vp-p, 75Ohms, TTL, max. 10 mA
    Video in: BNC, 1.0 Vp-p, 75Ohms
    Serial in: D-sub 9-pin (female) for external control (RS-232C compliant)
    Serial out: D-sub 9-pin (male) for link control (RS-232C compliant)
    Remote 1 in: M3 jack for wired remote control
    Remote 1 out: M3 jack for link control
    Remote 2 in: D-sub 9-pin for external control (parallel)

  • Terminals (Cont.3)

    LAN/DIGITAL LinK: RJ-45 for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compatible with Art-Net, compliant with PJLink (class 1), Deep Color, compatible with HDCP, 525i(480i), 625i(576i), 525p(480p), 625p(576p), 750(720)/60p, 750(720)50p, 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p, 1125(1080)/60p, 1125(1080)/50p
    VGA (640 x 480) - WUXGA (1,920 x 1,200)
    dot clock: 25 MHz -162 MHz

  • Power Supply

    120-240 V AC, 10-5.2 A, 50/60 Hz

  • Power Consumption

    1,030 W (1,060 VA) (0.3 W with STANDBY MODE set to ECO, 3W with STANDBY MODE set to NORMAL)

  • Operation Noise

    40 dB (dual lamp operation, Lamp Mode: Normal)

  • Operating Temperature

    0 to 45 deg. C / 32 to 113 deg. F

  • Operating Humidity

    10%-80% (no condensation)

  • Remote Control: Power Supply

    3V DC (AAA type battery)

  • Remote Control: Operation Range

    Approx. 30m when operated from directly in front of the signal receptor

  • Power Cord Length

    3m / 9.84'

  • Cabinet Materials

    Molded plastic

  • Dimensions (W x H x D)

    Projector: 498 x 200 x 513mm / 19.61 x 7.87 x 20.20"
    Remote Control: 48 x 145 x 27mm / 1.89 x 5.71 x 1.06"

  • Weight

    Projector: 17.6kg / 38.80lbs (without lens)
    Remote Control: 102g / 3.60oz (including Batteries)

5 Accessories for Panasonic 10000 Lumens DLP XGA Projector, 1024x768, Lens Not Included

  • All Accessories (5)
  • Adapters & Mounts (2)
  • Lenses (3)
Peerless PRGS-UNV Projector Mount, Black
Peerless PRGS-UNV Projector Mount, Black
$189.00
Panasonic ET-PKD120S Low Ceiling Mount Bracket for PT-DZ870 Series Projectors
Panasonic ET-PKD120S Low Ceiling Mount Bracket for PT-DZ870 Series Projectors
$734.00
Panasonic ET-DLE250 Projector Power Zoom Lens - For PT-D6000 and PT-D5700
Panasonic ET-DLE250 Projector Power Zoom Lens - For PT-D6000 and PT-D5700
$2,737.00
Panasonic ET-DLE350 52.8-79.5mm f/1.8-2.2 Power Zoom Lens for PT-D6000/PT-D5700
Panasonic ET-DLE350 52.8-79.5mm f/1.8-2.2 Power Zoom Lens for PT-D6000/PT-D5700
$2,737.00
Panasonic ET-DLE450 79.6-125.2mm f/1.8-2.4 Power Zoom Lens for PT-D6000/PT-D5700
Panasonic ET-DLE450 79.6-125.2mm f/1.8-2.4 Power Zoom Lens for PT-D6000/PT-D5700
$2,737.00

About Panasonic DLP XGA Projector

Panasonic's innovative dual-lamp system, with its new lamp, helps to make this body compact while providing 10,000lm of brightness, with 220-240V AC operation. When in 'Lamp Relay' mode, the system also eliminates any interruptions if a lamp should fail and enables 24/7 projection. Panasonic's dynamic RGB booster also achieves high image quality alongside excellent color reproduction and brightness. Similarly, a Detail Clarity Processor 3 brings further depth and clarity to details.

The projector's Dynamic Iris feature uses a scene-linking aperture mechanism to achieve a remarkable 10,000:1 contrast without lowering its high brightness. This helps to reproduce deeper, richer blacks and provides images with more detailed textures. In terms of maintenance and reliability, a dust-resistant optical block prevents dust entry to maintain image quality and a new cooling mechanism, featuring a heat-dissipating block that includes a heat pipe, reduces wear and tear on the device.

Combined with a lamp replacement cycle of up to 3,000 hours, the projector delivers reduced ownership and maintenance costs. For enhanced system integration, DIGITAL LINK compatibility allows HDMI, uncompressed video, audio and control signals to be delivered via a single LAN cable.

Panasonic DLP XGA Projector Features

  • Excellent image quality with new dynamic RGB booster and vivid color control
  • Dual Lamp System with lamp relay mode enables 24/7 operation
  • Filter-less dust-resistant optical engine
  • 10,000lm brightness
  • XGA (1080 x 768) resolution
  • 10,000:1 contrast ratio (when in high contrast mode)
  • Edge blending function
  • Color matching
  • Dynamic RGB booster
  • DIGITAL LINK
  • 3D ready

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Excellent image quality with new dynamic RGB booster and vivid color control
  • Dual Lamp System with lamp relay mode enables 24/7 operation
  • Filter-less dust-resistant optical engine
  • 10,000lm brightness
  • XGA (1080 x 768) resolution
  • 10,000:1 contrast ratio (when in high contrast mode)

What's in the box:

  • Panasonic 10000 Lumens DLP XGA Projector
  • Power Cord
  • Remote Control
  • 2x Batteries for Remote Control (AAA Type)
  • Software CD-ROM (Logo Transfer Software/ Multi Projector Monitoring & Control Software)
  • Panasonic 3 Year Parts and Labor Limited Warranty
  • Panasonic 90 Day for Lamp Limited Warranty
