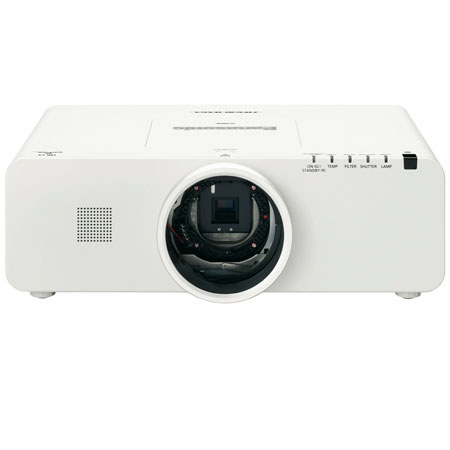

Panasonic PT-EW630UL LCD Projector, 5500 Lumens Brightness, 16:10 Aspect Ratio, 5000:1 Contrast Ratio, WXGA 1280x800 Resolution, Lens Not Included

SKU: PCPTEW630UL

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Panasonic PT-EW630UL Specifications

  • Panel Size (Diagonal)

    19.0 mm (0.75" ) diagonal

  • Aspect Ratio

    16:10

  • Display Method

    Transparent LCD panel (x 3, R/G/B)

  • Resolution

    WXGA (1,280 x 800 pixels)

  • Drive Method Pixels

    Active Matrix 1,024,000 (1,280 x 800 x 3, total of 3,072,000 pixels

  • Screen Size

    1.02-10.16 m (3.34 - 33.33')

  • Lamp

    330 W UHM lamp x 1

  • Lamp Replacement Cycle

    3,000 Hours (Lamp power: normal) 4,000 hours1 (Lamp Power ECO)

  • Brightness

    5,500 lumens

  • Contrast Ratio

    5000:1 (full on / full off, LAMP POWER: AUTO)

  • HDMI/DVI-D

    fH: 26-80 kHz, fV: 23-85 Hz, dot clock: 162 MHz or lower

  • RGB (analog)

    fH: 15-120 kHz, fV: 48-100 Hz, dot clock: 230 MHz or lower

  • YPBPR (YCBCR) 1

    fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
    fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
    fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
    fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
    fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
    fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
    fH: 33.75 kHz, fV: 60 Hz [1035/60i]

  • YPBPR (YCBCR) 2

    fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
    fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
    fH: 28.13 kHz, fV: 25 Hz [1080/25p]
    fH: 28.13 kHz, fV: 50 Hz [1080/25sF]
    fH: 27.00 kHz, fV: 24 Hz [1080/24p
    fH: 27.00 kHz, fV: 48 Hz [1080/24sF]
    fH: 33.75 kHz, fV: 30 Hz [1080/30p]
    fH: 33.75 kHz, fV: 60 Hz [1080/30sF]
    fH: 67.50 kHz, fV: 60 Hz [1080/60p]
    fH: 56.25 kHz, fV: 50 Hz [1080/50p]

  • Video/S-Video

    fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
    fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]

  • INPUT 1 DVI-D

    DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only 3

  • HDMI

    HDMI 19-pin x 1 (Deep Color, compatible with HDCP)

  • RGB

    D-Sub HD 15-pin (female) x 1

  • INPUT 3 RGB VIDEO INPUT

    BNC x 5 (RGB/YPBPR/YCBCR x 1), shared with VIDEO IN (BNC x 1, composite video)

  • INPUT 3 COMPONENT VIDEO INPUT

    RCA x 3 (YPBPR/YCBCR x 1), shared with VIDEO IN (RCA x 1, composite video)

  • S-VIDEO

    Mini DIN 4-pin x 1 (S-Video)

  • RGB OUT

    D-Sub HD 15-pin (female) x 1

  • AUDIO IN

    RCA (L, R) x 1, M3 (L, R) x 2

  • AUDIO OUT

    M3 (L, R) x 1 (variable)

  • AUDIO IN 3

    RCA (L, R) x 2, 0.5 Vrms, input impedance: 22 kilohms or more

  • SERIAL IN

    D-sub 9-pin (female) x 1, for external control (RS-232C compliant)

  • REMOTE IN

    M3 x 1 for wired remote control

  • Mechanical Shutter

    Yes

  • Filter

    x 1, recommended replacement cycle: 12,000 hours

  • Keystone correction range

    Vertical: +/-40deg.7, horizontal: +/-30deg.8

  • Optical Axis Shift

    Vertical: +/-60% (powered), horizontal: +/-10% (powered)

  • Operating Environment

    Operating temperature: 0 deg.C-40 deg.C (32 deg.F-104 deg.F)
    Humidity: 20%-80% (no condensation)

  • Built-in speaker

    10 W (monaural) output power

  • Installation

    Ceiling/floor, front, rear

  • Noise level

    37 dB (LAMP POWER: NORMAL), 31 dB (LAMP POWER: ECO 1 / ECO 2)

  • Dimensions (WxHxD)

    489.5x164x370mm / 19.27x6.45x14.57" (without lens)

  • Weight (approx.)

    9.6kg / 21.2lbs (without lens)

  • UPC Code

    885170083561

3 Accessories for Panasonic PT-EW630UL LCD Projector, 5500 Lumens Brightness, 16:10 Aspect Ratio, 5000:1 Contrast Ratio, WXGA 1280x800 Resolution, Lens Not Included

  • All Accessories (3)
  • Lenses (2)
  • Laptop Stand (1)

About Panasonic PT-EW630UL

The Panasonic PT-EW630UL WXGA LCD Projector produces brightness up to 5500 lumens. The iris automatically adjusts itself to match the situation, resulting in a high contrast ratio of 5000:1. It offers a versatile solution for classrooms in elementary and junior high schools, university lecture rooms, engineering or art classes and company meeting rooms.

It features a highly durable optical engine with inorganic LCD panels and polarizers, providing up to 10000 hours of service without maintenance. This LCD projector offers low maintenance with a dust-resistant cabinet design and a washable Eco filter that needs no replacement for up to 12000 hours and has a long lamp replacement cycle of up to 4000 hours. With the lamp's power set to Auto, the intelligent lamp control system automatically adjusts the lamp output in accordance with the brightness of the projected image and reduces it by up to 70%. It also combines with color shift correction, which corrects the shift in the color balance that occurs when the lamp output drops, resulting a reduction in power consumption while excellent color reproduction is maintained.

Additional features of this LCD projector include a built-in 10-W speaker and a quiet design (noise levels down to a quiet 31 dB), which does not interrupt meetings or classes. Side-by-Side and Picture-in-Picture functions allow for effective presentations and lectures. Two different image sources can be simultaneously displayed onto a single screen. By switching to the Picture-in-Picture mode, you can display a sub-window onto the main screen and position in any of the 4 corners.

Ease of filter and lamp replacement make the total cost of ownership low on this LCD projector. The filter is easily replaced from the side and the lamp from the top of the projector allowing for ease in maintenance.

What's in the box:

  • Panasonic PT-EW630UL LCD Projector
  • Power Cord
  • Power Cord Holder
  • Wireless/Wired Remote Control Unit
  • AAA-Type Battery (2)
  • Computer Cable
  • Panasonic 3 Year Warranty (Projector)
  • Panasonic 90 Day Warranty (Lamp)
