Panasonic PT-LB2VU Micro-Portable LCD Projector, 2600 Lumens, 600:1 Contrast Ratio

SKU: PCPTLB2VU

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Panasonic PT-LB2VU Specifications

  • Power supply

    100-240 V AC, 50/60 Hz

  • Power consumption

    290 W (0.3 W at 100-120 V AC, 0.4 W at 220-240 V AC when standby mode set to eco,15 W when standby mode set to normal, 18 W when standby mode set to normal and audio monitor out)

  • Optical system

    Dichroic mirror separation/prism synthesis system

  • LCD panel size

    0.63" (16 mm) diagonal, 4:3 aspect ratio

  • Display method

    Transparent LCD panel (x 3, R/G/B)

  • Drive method

    Active matrix

  • Pixels

    786,432 pixels (1,024 x 768) x 3 panels

  • Lens

    Manual zoom (1:1-1:1.2), manual focus, F 2.00-2.20
    f 19.22-22.68 mm, throw ratio: 1.5-1.7:1

  • Lamp

    220 W UHM lamp (The lamp replacement cycle is 5,000 hours)

  • Screen size (diagonal)

    33-300" (0.84-7.62 m) (4:3 aspect ratio)

  • Color

    Full color (16,777,216 colors)

  • Brightness

    2,600 lumens

  • Center-to-corner uniformity

    85%

  • Contrast

    600:1 (full on/full off)

  • Resolution

    1,024 x 768

  • Scanning frequency: RGB

    Horizontal: 15-91 kHz, Vertical: 50-85 Hz

  • Scanning frequency: YPBPR/YCBCR

    480i(525i): fH 15.75 kHz; fV 60 Hz
    576i(625i): fH 15.63 kHz; fV 50 Hz
    480p(525p): fH 31.50 kHz; fV 60 Hz
    576p(625p): fH 31.25 kHz; fV 50 Hz
    720p(750p): fH 45.00 kHz; fV 60 Hz
    720p(750p): fH 37.50 kHz; fV 50 Hz
    1080i(1125i): fH 33.75 kHz; fV 60 Hz
    1080i(1125i): fH 28.13 kHz; fV 50 Hz
    1080p(1125p): fH 67.50 kHz; fV 60 Hz
    1080p(1125p): fH 56.25 kHz; fV 50 Hz

  • S-Video/Video

    NTSC, NTSC4.43, PAL-M, PAL60: fH 15.75 kHz; fV 60 Hz
    PAL, SECAM, PAL-N: fH 15.63 kHz; fV 50 Hz

  • Optical axis shift

    5:1 (fixed)

  • Keystone correction range

    Vertical: +/-30deg.

  • Installation

    Front/rear ceiling/desk (menu selection)

  • Built-in speaker

    1.0 W (monaural)

  • Computer 1 IN

    D-sub HD 15-pin x 1 (RGB/YPBPR/YCBCR x 1)

  • Computer 2 IN

    D-sub HD 15-pin x 1 (RGB/YPBPR/YCBCR x 1)

  • Video IN

    RCA pin x 1 (Composite video x 1)

  • S-Video IN

    Mini DIN 4-pin x 1 (S-Video x 1)

  • Audio IN

    M3 x 2 (L-R x 2)

  • Variable Audio OUT

    M3 x 1 (L-R x 1)

  • Serial

    D-sub 9-pin x 1 (RS-232C)

  • LAN

    RJ-45 x 1, compatible with PJLink (class 1), 100BASE-TX/10BASE-T

  • Cabinet material

    Moulded plastic (PC+ABS)

  • Noise level

    37 dB(Lamp mode: Normal), 29 dB(Lamp mode: Eco)

  • Operation environment

    Temperature: 32deg.-104deg.F (0deg.-40deg.C)
    Humidity: 20%-80% (no condensation)

  • Dimensions (WxHxD)

    12-3/32x2-23/32x8-9/32" / 30.71x6.90x21.03cm

  • Weight

    5.07lbs / 2.29kg

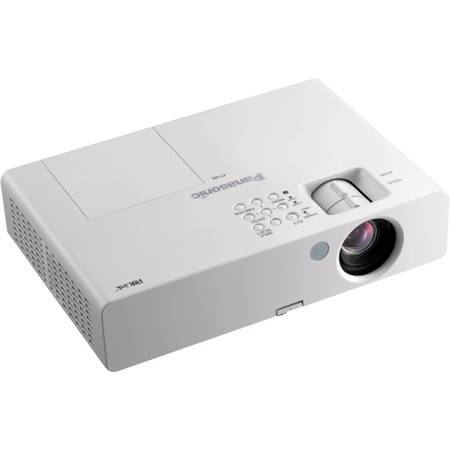

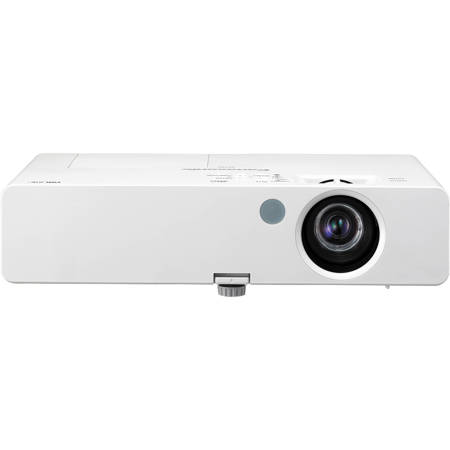

About Panasonic PT-LB2VU

The Panasonic PT-LB2VU Micro-Portable LCD Projector is a compact, ultra-light unit designed to be moved between locations. The PT-LB2VU incorporates Intelligent Power Management, new circuitry that ensures continuous supply of power for stable operation even if electricity fluctuates for a short duration.

For added flexibility, a wired LAN connection enables remote operation, which is especially ideal for ceiling-mounted use. The PT-LB2VU is a micro-portable LCD projector with 1024 x 768 XGA resolution and 2600 lumens of brightness. The projector's exclusive Daylight View Basic technology measures surrounding illumination with a built-in ambient light sensor. It corrects the image in real-time to project clear, crisp images even in brightly-lit rooms; producing lifelike images with remarkable depth.

The ecological design of the PT-LB2VU greatly reduces any environmental impact, with power consumption a mere 0.4W in eco standby mode. Direct power off utilizes accumulated power to keep the cooling fan operating until the lamp is cooled, so the operator can disconnect the power cable immediately after use.

Panasonic PT-LB2VU Features

  • The PT-LB2VU is a micro-portable LCD projector with 1024 x 768 XGA resolution and 2600 lumens of brightness
  • The compact, ultra-light unit is effortless to move between locations, measuring 12 x 2.7 x 8.1" (304.8 x 68.6 x 205.7mm) and weighing just over five pounds
  • The micro-portable incorporates Intelligent Power Management, new circuitry that ensures continuous supply of power for stable operation even if electricity fluctuates for a short duration
  • The projector's exclusive Daylight View Basic technology measures surrounding illumination with a built-in ambient light sensor and corrects the image in real-time to project clear, crisp images even in brightly-lit rooms, producing lifelike images with remarkable depth
  • For added flexibility, a wired LAN connection enables remote operation, which is especially ideal for ceiling-mounted use
  • Multi projector monitoring and control software is available for monitoring and controlling multiple Panasonic projectors from a single PC, which means a projector's status and condition can be checked without anyone having to physically walk to the room where it is installed
  • The ecological design of the PT-LB2VU greatly reduces any environmental impact with power consumption a mere 0.4W in eco standby mode
  • Direct power off utilizes accumulated power to keep the cooling fan operating until the lamp is cooled, so the operator can disconnect the power cable immediately after use
  • For simplified maintenance, the projector incorporates top-panel lamp replacement and side filter replacement, which means it does not have to be removed from a ceiling mount for upkeep
  • Panasonic employs a number of advanced technologies - including a proprietary lamp drive system - that help maintain lamp performance. This has resulted in a 5000-hour lamp replacement cycle. It helps saving operating cost by providing longer usage between lamp replacements
  • Momentary power outages or voltage drops can cause the projector to shut down, interrupting the projection. The PT-LB2VU equipped with the intelligent power management function controls the power supply to cope with power fluctuations, to enable continued projection
  • The noise level is as low as 29-dBA. This helps your audience to keep their attention on the discussion or on the screen images during quiet scenes
  • Interfaces include two computer (RGB) inputs, a wired LAN terminal and a serial (RS-232C) terminal for external control. The serial terminal has an emulate function that lets you continue using existing control systems when replacing a previous Panasonic model
  • Single-leg simplifies adjustment of the projector angle
  • With real time keystone correction, the projector automatically senses if you adjust its angle (in the vertical direction) during operation and instantly makes whatever keystone correction is necessary for optimal viewing
  • Auto signal search automatically detects what kind of source is connected and begins projection
  • If images cannot be projected when a PC is connected by a VGA cable, this function displays the output setting method for the PC. The help screen guides you through the button operations according to the maker of the connected PC
  • The input guidance function displays on-screen illustrations to show the selected channel and whether the input signal is being received or not. It lets you confirm the input conditions at a glance, even when multiple devices are connected to the input terminals
  • Whiteboard and blackboard modes are convenient when projecting in rooms that don't have a screen
  • A carrying bag with a handy shoulder strap comes with the projector. It also protects the projector from impacts
  • You can change the default Panasonic startup logo to any logo you want. A new logo can be easily uploaded by connecting a computer to the PT-LB2VU through the LAN or serial connection by using the logo transfer software. An abundance of other security measures are also included
  • You can split the screen into two windows, right and left with the index window function. You can also display a frozen (still) image in one and a real-time action image in the other
  • Expands selected parts of the display up to three times their original size with the digital zoom function
  • The freeze function lets you display still images by freezing a motion image
  • When there is no signal from the source device, a solid background color (settable to either blue or black) is displayed on the screen to help prevent connection errors

Key Features

  • PT-LB2VU is a micro-portable LCD projector
  • Projector's exclusive Daylight View Basic technology
  • Ecological design of the PT-LB2VU greatly reduces any environmental impact
  • Panasonic employs a number of advanced technologies
  • Including a proprietary lamp drive system
  • That help maintain lamp performance

What's in the box:

  • Panasonic PT-LB2VU Micro-Portable LCD Projector
  • Remote Control
  • AAA-Type Batteries (2)
  • VGA Cable
  • Carrying Bag
  • Power Cord with Secure Lock
  • Panasonic 3 Year Warranty (Projector)
  • Panasonic 90 Day Warranty (Lamp)
