Panasonic PT-LB330U Specifications

  • Power supply

    100-240 V AC, 50/60 Hz

  • Power consumption

    300 W (0.5W when STANDBY MODE set to ECO,6W when STANDBY MODE set to Normal)

  • Panel size

    16mm / 0.63" diagonal (4:3 aspect ratio)

  • Display method

    Transparent LCD panel (x 3, R/G/B)

  • Pixels

    3x 786432 (1024 x 768), total of 2,359,296 pixels

  • Lens

    1.2x manual zoom (throw ratio: 1.48-1.78:1), manual focus, F=1.6-1.76, f=19.16-23.02 mm

  • Lamp

    230 W, lamp replacement cycle (lamp control: Normal/Eco1/Eco2): 5,000 hours/6,000 hours/8,000 hours

  • Screen size (diagonal)

    0.76-7.62 m (30-300"), 4:3 aspect ratio

  • Brightness

    3300 lm

  • Center-to-corner uniformity

    80%

  • Contrast

    10000:1 (full on/off) (RGB signal input, Lamp control: Normal, Color mode: Dynamic, Iris: On)

  • Resolution

    1024 x 768 pixels

  • HDMI IN

    fH: 15-91 kHz, fV: 50-85 Hz, dot clock: 25 MHz-162 MHz

  • RGB

    fH: 15-91 kHz, fV: 50-85 Hz, dot clock: 162 MHz or lower

  • YPB PR(YCB CR)

    fH: 15.75 kHz, fV: 59.94 Hz [480i (525i)]
    fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
    fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
    fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
    fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
    fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
    fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
    fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)]
    fH: 31.25 kHz, fV: 50 Hz [576p (625p)]

  • YPB PR(YCB CR) 1

    fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
    fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
    fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
    fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
    fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]

  • Video/S-Video

    fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
    fH: 15.63 kHz, fV: 50 Hz [PAL/SECAM/PAL-N]

  • Optical axis shift

    6:1 (fixed)

  • Keystone correction range

    Vertical: +/-30 deg.
    Horizontal: +/-15 deg.

  • Installation

    Ceiling/floor, front/rear

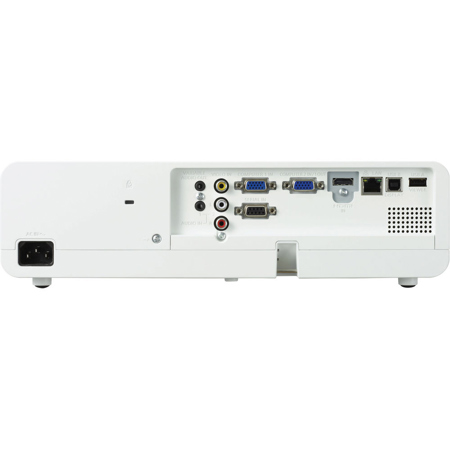

  • HDMI In

    1x HDMI 19-pin (compatible with HDCP, Deep Color) 480i, 480p, 576i, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200), audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)

  • Computer 1 IN

    1x D-sub HD 15-pin (female)(RGB/YPBPR/YCBCR /1x S-VIDEO) (The D-Sub/S-VIDEO conversion cable ET-ADSV is required for inputting S-VIDEO signals)

  • Computer2 IN/ Monitor OUT

    1x D-sub HD 15-pin (female) (1x RGB), (input/output selectable using on-screen menu)

  • Video In

    1x Pin jack (composite video)

  • Audio 1 In

    1x M3 (1x L-R)

  • Audio 2 In

    2x Pin jack (1x L,R )

  • Audio Out

    1x M3 (L-R x 1) for output (variable)

  • Serial In

    1x D-sub 9-pin (female) for external control (RS-232C compliant)

  • LAN

    1x RJ-45 (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink)

  • USB A

    1x USB type-A (for the Memory Viewer)

  • USB B

    1x USB type-B (for the USB Display)

  • Built-in speaker

    1x 10 W (monaural)

  • Noise level

    37dB (lamp control: Normal), 33dB (lamp control: Eco1), 28dB (lamp control: Eco2)

  • Cabinet materials

    Molded plastic (PC )

  • Operating temperature

    5 to 40 deg. C / 41 to 104 deg. F (less than 1400 m [4500'] above sea level)
    5 to 35 deg. C / 41 to 95 deg. F (between 1400 m and 2700 m [4500' and 8800'] above sea level)

  • Operating humidity

    20-80 % (no condensation)

  • Dimensions (W x H x D)

    335 x 96 (With legs at shortest position) x 252mm / 13.19 x 3.78 x 9.92"

  • Weight

    Approximately 2.8kg / 6.17lbs

3 Accessories for Panasonic PT-LB330 XGA Portable 3LCD Multimedia Projector, 1024x768, 3300 Lumens

  • All Accessories (3)
  • Screens (1)
  • Cables & Adapters (1)
  • Lamps & Bulbs (1)

About Panasonic PT-LB330U

Outstanding Performance in a Compact Body
Bright, compact and easy to use ? ideal for education and corporate uses. They also have a wide range of functions powered by a long lasting lamp. 3300 lm, XGA.

High Performance In A Compact Body
High Brightness and High Contrast
With a brightness level of 3300 lm and a contrast ratio of 10000:1, images are amazingly clear and bright, enhancing learning and working experience -all in a compact, lightweight body.

Durable Lamp For Extensive Use
With a maximum of 8000-hour lamp replacement cycle, maintenance and operation costs can be lowered.

A Long-Life Filter with a Maximum 5000-Hour Replacement Cycle
A long-life air filter has a replacement cycle of 5000 hours. This reduces maintenance hassles for long periods of use and helps to lower maintenance costs.

Daylight View Lite
The Daylight View Lite function can be activated from the remote control for easy and comfortable viewing during presentations and lectures in a bright-lit room.

Easy Installation
Flexible Installation
When projecting onto a 100-inch wide screen (4:3 aspect ratio), the 1.2x zoom lens lets the PT-LB330 support a wide range of projection distances, from 3.0 to 3.6 meters (9.9 to 11.9 feet).

Corner Keystone Correction For Angled Protection
Designate four points as the corners of the projected image to easily carry out horizontal and vertical keystone correction.

Curved Screen Correction
Barrel and pincushion distortions are easily fixed when projected onto a curved screen.

Easy Remote Monitoring And Control Over A LAN
Web browser on a computer connected through a wired LAN system lets you remotely operate projectors and check their status. In addition, Multi Projector Monitoring and Control Software is available for monitoring and controlling multiple Panasonic projectors from a single PC. The wired LAN terminal is compatible with PJLink (class1), an open protocol that is used by many manufacturers, to enable integrated control of systems that contain different brands of projectors.

Eco-Friendly Design
Easy Recycling
The ecology-conscious design consists of no halogenated flame retardants, lead-free glass for the lens and coating-free cabinet for easy recycling.

Low Power Consumption
The lamp power switching mode further reduces power consumption.

Convenient Features For Ease Of Use
Memory Viewer Function
In addition to JPEG/BMP image and text files, PDF files can be projected by inserting a USB memory device containing the data into the USB memory port, thus presentations can be done without connecting to a computer.

USB Display Function and HDMI Input Terminal
Without the need to install any software, the USB display is able to output images and sounds from the computer. Presentations can be done by connecting a single USB cable to a USB port. Moreover, the projector supports a wide range of system architectures for portable or ceiling-mounted use.

What's in the box:

  • Panasonic PT-LB330 XGA Portable 3LCD Multimedia Projector
  • Power Cord
  • Wireless Remote Control Unit
  • 2x Batteries (AAA/R03/LR03 Type)
  • 1.5m Computer Cable for VGA
  • Software CD-ROM (Multi Projector Monitoring & Control Software)
  • Panasonic Warranty
