Panasonic 3100 Lumens Portable Projector, WXGA
See all Panasonic items

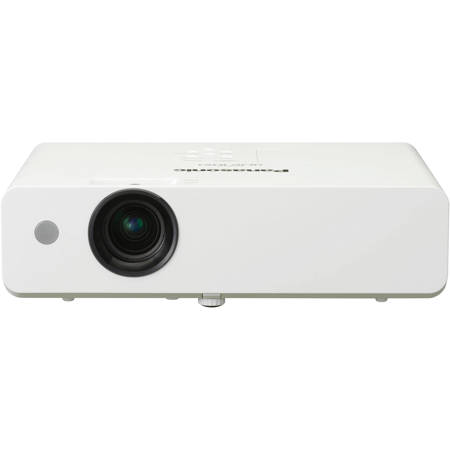

Panasonic 3100 Lumens Portable Projector, WXGA (1280 x 800)

SKU: PCPTLW312U
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Panasonic 3100 Lumens Projector Specifications

  • Contrast Ratio

    12000

  • Noise

    37 dB

  • Lens Type

    1.2x Manual Zoom/Focus

  • Lamp Type

    230W

  • Regulatory Compliance

    HDCP

  • Communication Ports

    USB

  • Standby Power

    0.5 Watt

  • HDMI IN

    HDMI 19-pin 1 HDCP compatible, Deep Colour compatible, Audio signal: Linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32kHz)

  • Computer 1 IN

    D-sub HD 15-pin (female) 1 [RGB/S-Video/YPB (CB) PR (CR)]

  • Computer 2 IN

    D-sub HD 15-pin (female) 1 [RGB]

  • Monitor OUT

    D-sub HD 15-pin (female) 1 [RGB/Monitor output]

  • Video IN

    Pin jack 1

  • Audio IN 1

    M3 (L, R) 1

  • Audio IN 2

    Pin jack 2 (L, R)

  • Audio Out

    M3 (L,R) 1 (variable)

  • LAN

    RJ-45 ( 1) for network connections, 10Base-T/100Base-TX, PJLink (class 1) compatible

  • Serial IN

    D-Sub 9-pin (female) 1 for external control (RS-232C compatible)

  • USB-Type A

    Memory Viewer/Wireless Module, DC5 V MAX500mA

  • USB-Type B

    USB Display

  • Active Power

    300 Watt

  • Brightness Full

    3100 lumens

  • Lamp Life Full

    5000 hours

  • Lamp Life Economy

    6000 hours

  • Lamp Quantity

    1

  • Operating Temperature (Maximum)

    40 C (104 F)

  • Operating Temperature (Minimum)

    5 C (41 F)

  • AC Voltage (Minimum)

    100 Volts

  • AC Voltage (Maximum)

    240 Volts

  • Display method

    Transparent LCD panel ( 3, R/G/B)

  • Drive method

    Active matrix method

  • Panel size

    16 mm (0.63") diagonal (4:3 aspect ratios)

  • Pixels

    786,432 (1,024 768) pixel

  • Screen size

    0.76-7.62 m (30-300 inches) diagonally

  • Center-to-corner uniformity

    80%

  • HDMI IN

    525i (480i), 625i (576i), 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/60p, 1125 (1080)/50p, 1125 (1080)/24p, 1125 (1080)/25p, 1125 (1080)/24sF, 1125 (1080)/30p

  • VGA size

    (640 dots 480 dots)-WUXGA (1,920 dots 1,200 dots), dot clock: 25 MHz-162 MHz

  • RGB

    fH: 15-91 kHz, fV: 24-85 Hz, dot clock: 162 MHz or lower

  • YPBPR (YCBCR)

    fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
    fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
    fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
    fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
    fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
    fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
    fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]

  • Vertical

    +/-30 Degree (Auto, Manual)

  • Horizontal

    +/-15 Degree (Manual)

  • Installation

    Ceiling/floor, front/rear

  • Dimension (W x H x D)

    13.19" x 3.78" x 9.92" (9335 x 96 x 252 mm)

  • Product Weight

    2.90 kg (6.39 lbs)

About Panasonic 3100 Lumens Projector

Panasonic 3100 Lumens Projector Features

  • Easy wireless projection by optional module
  • Memory viewer function
  • Equipped with an HDMI input terminal and abundant interfaces
  • Built-in 10W speaker
  • PJLink compatibility
  • Built-in closed caption decoder
  • Direct power off
  • Projector identification system for up to 6 projectors
  • Blackboard modes
  • Start up logo
  • Equipped with a security bar for theft prevention
  • High brightness and high contrast in a lightweight body
  • Pictures, videos, and any documents including PDF files/Power Point files, whatever are displayed on the PC screen can be projected
  • The images from up to four PCs can be projected simultaneously
  • Pictures, some documents including PDF files can be projected
  • Live camera mode/Annotate mode can be used
  • The images from up to four devices can be projected simultaneously. VueMagic Pro 8 for iOS/Android Devices

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Easy wireless projection by optional module
  • Memory viewer function
  • Equipped with an HDMI input terminal and abundant interfaces
  • Built-in 10W speaker
  • PJLink compatibility
  • Built-in closed caption decoder

What's in the box:

  • Panasonic PT-LW312U Projector
  • Wireless Remote Control
  • 2x AAA Batteries
  • Computer Cable
  • Power Cord
  • Panasonic 3 Year Warranty (90 Day on Lamp)
