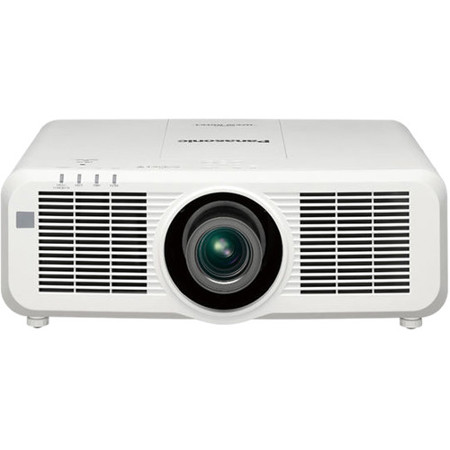

Panasonic PT-MZ570U WUXGA 3 LCD SOLID SHINE Laser Projector, 1920x1200, 5500 Lumens

SKU: PCPTMZ570U

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Panasonic PT-MZ570U Specifications

  • Display System

    3-Chip 0.76" LCD

  • Native Resolution

    1920 x 1200 (WUXGA)

  • Supported Resolutions

    VGA - 640 x 480

  • Maximum Brightness

    5500 Lumens

  • Uniformity

    0.9

  • Aspect Ratio

    16:10

  • Dynamic Contrast Ratio

    3,000,000:1

  • Scan

    Horizontal: 15 - 91 kHz
    Vertical: 24 - 100 Hz

  • Lens

    Power Zoom/Focus
    f/1.7 - 2.3 (f = 26.9 - 45.5mm)

  • Filter

    Filter-Less

  • Lens Shift

    Vertical: +/- 67%
    Horizontal: +/- 35%

  • Optical Zoom

    No

  • Throw Ratio

    1.7 - 2.8:1

  • Projection Size

    40 - 400" (1.02 - 10.16m)

  • Keystone Correction

    Vertical: +/- 30 deg.
    Horizontal: +/- 25 deg.

  • Ceiling Mountable

    Yes

  • Built-In Speaker

    Yes (Mono)

  • Speaker Power

    10W

  • Inputs/Outputs

    2x HDMI Video (Input)
    5x BNC Video (Input)
    1x 15-Pin VGA Video (Input)
    1x 1/8" (3.5 mm) Mini Video (Input)
    1x 15-Pin VGA Video (Output)
    1x 9-pin VGA Control (Input)
    1x 9-pin VGA Remote (Input)
    1x Ethernet LAN
    1x USB Type-A Male

  • Light Source

    Laser Phosphor

  • Fan Noise

    Full Brightness: 33 dB
    Low Brightness: 28 dB

  • Supported Audio File Types

    LPCM

  • AC Input Power

    100 - 240 VAC, 50 / 60 Hz

  • Temperature

    Operating: 32 to 113 deg. F (0 to 45 deg. C)

  • Humidity

    20 - 80%

  • Dimensions (WxHxD)

    22.0 x 8.1 x 17.4" (55.88 x 20.57 x 44.20cm) with lens

  • Weight

    35.3 lbs (16.01kg) approximately

About Panasonic PT-MZ570U

3LCD SOLID SHINE Laser Projector Brilliant Picture Quality
The PT-MZ670 Series has long-lasting excellent picture quality with high brightness of up to 6,500 lm and WUXGA resolution, from a compact and lightweight body. Dynamic 3,000,000:1 Contrast assures excellent text legibility and improved picture quality realized by the laser light source.

Memory Viewer
You don't need a computer to start presenting-just insert a USB memory device containing media and start projecting straight away. This includes Full HD video as well as still images. An intuitive Graphical User Interface (GUI) makes operation easy to understand.

Emulation Mode
Using the Emulation Mode; the PT-MZ670 Series projectors can be set to emulate the control commands of the projector it is replacing.

Free 360-degree Orientation
SOLID SHINE Laser enables free 360-degree installation through any axis. Together with powered lens shift and wide range of optional lenses, the PT-MZ570 can project images from any orientation without picture distortion.

Low Maintenance with ECO Functions
The PT-MZ670 Series dust-resistant cabinet design improves sealing of the filter module and air-intake duct. As a result, less maintenance as the life of the ECO filter is extended to approximately 20,000 hours.

Detail Clarity Processor 4
This digital image processing circuit brings greater clarity and sharpness to details embedded in the image. After analyzing the video signal frequency in each scene, the circuit optimizes the sharpness of each part of the image based on the extracted information. The resulting images have more natural, lifelike expression than those of previous image-processing methods.

Quiet Operation with only 28dB
Using Panasonic's technology to optimize fan control and laser control the PT-MZ670 Series projectors produce only 28dB1 on Quiet Mode, which ensures no interruption by the sound of the projector.

Compatibility (Wide Range of Optical Lenses)
Able to use the optional lenses of PT-EZ770 Series makes the PT-MZ670 Series an easy replacement for legacy 3LCD lamp models. The compatible lenses include: ET-ELW21, ET-ELW22, ET-ELW20, ET-ELS20, ET-ELT20, ET-ELT21.

Panasonic PT-MZ570U Features

  • Laser LCD, 5,500 lumens, WUXGA
  • Compact and lightweight body, designed with ultra-low noise operation (28dB)
  • Exchangeable lenses (compatible with PT-EZ770 series lenses) for flexible installation in any meeting- or classroom
  • Packed with a wide range of collaboration technologies such as 5 Ghz wireless projection from multiple devices, secure streaming & networking, PC-less presentation, audio loop-through and others
  • Long lasting laser light source and low-maintenance design provide high brightness and superb image quality

What's in the box:

  • Panasonic PT-MZ570U WUXGA 3 LCD SOLID SHINE Laser Projector
  • Power Cord with Power Cord Holder
  • Wireless/Wired Remote Control Unit
  • 2x R03/LR03/AAA Type Batteries
  • Panasonic 3 Year Projector and 90 Day Lamp Limited Warranty
