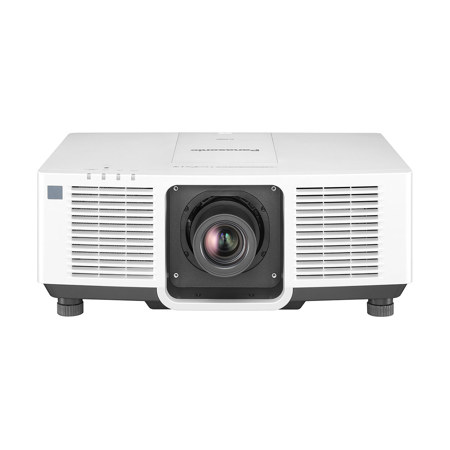

Panasonic PT-MZ682 WUXGA LCD Ultra-Short Throw Wireless Laser Projector, White

SKU: PCPTMZ682WU7 MFR: PT-MZ682WU7
Earn VIP Reward Points

Key Features

  • Experience vibrant visuals with 6,500 lumens: Perfect for bright, professional environments.
  • Enjoy crystal-clear images with WUXGA resolution, ideal for detailed presentations.
  • Ultra-short throw lens minimizes shadows, making it great for interactive displays.
  • Wireless connectivity simplifies setup, allowing seamless content sharing in meetings.
  • Benefit from a long-lasting laser light source, reducing maintenance and costs.
  • Achieve stunning 3,000,000:1 contrast ratio for deep blacks and vivid colors in every scene.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$249.99

3 Year

$399.99

4 Year

$499.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Panasonic PT-MZ682 Specifications

  • Color

    White

  • Projector type

    LCD projectors

  • Panel Size

    0.76" (19.3mm) diagonal (16:10 aspect ratio)

  • Display Method

    Transparent LCD panel (x 3, R/G/B)

  • Drive Method

    Active matrix

  • Pixels

    2,304,000 (1920 x 1200) pixels x 3

  • Light Source

    Laser diodes

  • Light output

    6,500 lm

  • Time until light output declines to 50%

    20,000 hours (NORMAL/QUIET), 24,000 hours (ECO)

  • Resolution

    WUXGA (1920 x 1200 pixels)

  • Contrast ratio

    3,000,000:1 (Full On/Full Off) (When (PICTURE MODE) is set to (DYNAMIC) and (DYNAMIC CONTRAST) is set to (1) or (2). HDMI signal input)

  • Screen Size (Diagonal)

    40-400" (1.02-10.16m), 60-400" (1.52-10.16m) with the ET-ELW22
    100-400" (2.54-10.16m) with the ET-ELU20, 16:10 aspect ratio

  • Center-to-corner zone ratio

    85%

  • Lens

    Powered zoom (throw ratio 1.61-2.76:1), powered focus F = 1.7-2.3, f = 26.8-45.5 mm (for supplied lens; optional lenses also available)

  • Lens shift Vertical

    +/-67 % (powered), +/-60 % (with ET-ELW22), +/-50 % (with ET-ELU20) (TBD) (From the origin point of the lens mounter)

  • Lens shift Horizontal

    +/-35 % (powered), +/-30 % (with ET-ELW22), +/-24 % (with ET-ELU20) (TBD) (From the origin point of the lens mounter)

  • Keystone Correction Range

    Vertical:
    +/-25 Degree ( +/-22 Degree with ET-ELW21/ET-ELW22)
    ( +/-25 Degree with ET-ELW20/ET-ELT22/ET-ELT23)
    ( +/-5 Degree with ET-ELU20)

    Horizontal:
    +/-30 Degree ( +/-15 Degree with ET-ELW21/ET-ELW22)
    ( +/-30 Degree with ET-ELW20/ET-ELT22/ET-ELT23)
    (0 Degree with ET-ELU20)

  • Installation

    Ceiling/floor, front/rear, free 360-degree installation

  • HDMI In

    3x HDMI (Deep Color, compatible with HDCP 2.3, 4K/60p signal input4), CEC supported

  • Computer In

    1x D-sub HD 15-pin (female) (RGB/YPBPR/YCBCR)

  • Monitor Out

    1x D-sub HD 15-pin (female) (RGB/YPBPR/YCBCR)

  • SERIAL/MULTI SYNC IN

    1x D-sub 9-pin (female) for external control/link control (RS-232C compliant)

  • MULTI SYNC OUT

    1x D-sub 9-pin (male) for link control

  • Remote 1 In

    1x M3 stereo mini-jack for wired remote control

  • Remote 2 In

    1x D-sub 9-pin (female) for external control (parallel)

  • Audio In

    1x M3 stereo mini-jack

  • Audio Out

    1x M3 stereo mini-jack

  • DIGITAL LINK/LAN

    1x RJ-45 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink (Class 2), Art-Net, HDCP 2.3, Deep Color, 4K/60p4, 5 signal input)

  • LAN

    1x RJ-45 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink (Class 2), Art-Net)

  • DC Out

    1x USB Type A (for power supply, DC 5 V, 2 A)

  • Power Supply

    AC 100-240 V, 50 Hz/60 Hz

  • Maximum power consumption

    360 W (4.2-2.0 A) (395 VA) (Power consumption is 345 W at AC 200-240 V) (TBD)

  • On-mode power consumption

    Operating mode:
    Normal: 330 W (AC 100-120 V), 315 W (AC 200-240 V) (TBD)
    Eco: 240 W (AC 100-120 V), 230 W (AC 200-240 V) (TBD)
    Quiet: 238 W (AC 100-120 V), 228 W (AC 200-240 V) (TBD)

  • Material

    Cabinet: Molded plastic

  • Filter

    Included (Estimated maintenance time: approx. 20,000 hours)

  • Operation noise

    33 dB (NORMAL/ECO), 27 dB (QUIET) (TBD)

  • Operating Environment

    Operating temperature: 32-113 Degree F (0-45 Degree C)
    Operating humidity: 10-80 % (no condensation)

  • Applicable Software

    Logo Transfer Software, Multi Monitoring & Control Software, Smart Projector Control for iOS/Android, Geometry Manager Pro

  • Dimensions (W x H x D)

    22.1 x 8.8 x 17.3" (561 x 224 x 439mm) (With legs at shortest position, including lens and protruding parts)

  • Weight

    Approx. 38.8 lbs (17.6kg) (with supplied lens)

  • UPC Code

    885170430778

About Panasonic PT-MZ682

A cutting-edge solution for modern classrooms and workplaces, the PT-MZ682 WUXGA LCD Ultra-Short Throw Wireless Laser Projector in White combines sustainability with superior image quality. This eco-conscious projector is designed with recycled materials, incorporating 10% recycled resins in its main body, which significantly reduces the use of virgin materials and minimizes environmental impact throughout its lifecycle from manufacturing to disposal.

The PT-MZ682 is a testament to Panasonic's commitment to eco-friendly innovation, offering enhanced brightness and energy efficiency. With a powerful 6,500 lumens output and a maximum power consumption of just 360 watts, it achieves an impressive 18.05 lumens per watt, helping organizations reduce energy costs and their carbon footprint.

One of the standout features of the PT-MZ682 is its Auto Power On function, which automatically powers the projector on when an input signal is detected, eliminating unnecessary energy waste and ensuring seamless presentations. The SOLID SHINE Laser light source offers maintenance-free operation for up to 20,000 hours, reducing downtime and waste associated with lamp replacements.

The projector's ECO Filter, equipped with a Micro-Cut Filter, captures minute dust particles, ensuring low maintenance and long-term use. The filter can be washed and reused up to two times, further reducing waste and maintenance costs.

Reliability is enhanced with the Multi-Laser Drive Engine, which ensures stable projection even if a light-source issue arises. This feature, combined with Failover Circuitry, allows presentations to continue with minimal brightness reduction, providing peace of mind during critical meetings or lectures.

The PT-MZ682 excels in delivering bright and sharp images, even in well-lit environments. Its high 3,000,000:1 dynamic contrast ratio, along with technologies like Dynamic Contrast, Daylight View Basic, and Detail Clarity Processor 4, ensures vivid colors and sharp details, enhancing communication in offices, classrooms, and hybrid spaces.

For widescreen content, the PT-MZ682 supports 1920 x 810 (21:9) and 1920 x 640 (27:9) signals, making it ideal for modern conferencing layouts and cinematic content. Its quiet operation, with a whisper-quiet 25 dB mode, ensures that presentations remain engaging without distraction.

The projector's streamlined workflow and user experience are further enhanced by its support for widescreen aspect ratios, posture detection function, and compatibility with optional powered lenses. The included ET-ELS20 powered zoom lens and compatibility with six other lenses, including the ET-ELU20 Ultra-Short-Throw Zoom Lens, offer flexibility for various applications, from museums to location-based entertainment.

The Smart Projector Control app simplifies setup and operation, allowing control of up to 64 projectors and adjustment of settings without accessing the on-screen display. Built-in Geometric Adjustment Functions enable distortion correction for images projected at angles or onto curved surfaces, ensuring perfect alignment every time.

For added security, the remote control lock function prevents accidental disruptions during presentations, making the PT-MZ682 a reliable and efficient choice for any educational or professional setting.

Panasonic PT-MZ682 Features

  • Eco-Conscious Design Includes Recycled Materials
  • Bright and Sharp for Comfortable Visibility
  • A Streamlined Work/low and Efficient UX
  • Supports Art-Net DMX, PJLink, and Crestron Connected
  • Free 360 Degree Installation
  • Multi-Screen Support System
  • Multi-Unit Brightness and Color Control
  • DICOM Simulation Mode
  • Presentation Support System
  • Auto Image Rotation Function
  • Emulation Mode for Control Commands
  • Quick Start/Quick Off and Direct Off

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience vibrant visuals with 6,500 lumens: Perfect for bright, professional environments.
  • Enjoy crystal-clear images with WUXGA resolution, ideal for detailed presentations.
  • Ultra-short throw lens minimizes shadows, making it great for interactive displays.
  • Wireless connectivity simplifies setup, allowing seamless content sharing in meetings.
  • Benefit from a long-lasting laser light source, reducing maintenance and costs.
  • Achieve stunning 3,000,000:1 contrast ratio for deep blacks and vivid colors in every scene.

What's in the box:

  • Panasonic PT-MZ682 WUXGA LCD Ultra-Short Throw Wireless Laser Projector (White)
  • Remote
  • Power Cord
  • Panasonic 3 Year Limited Warranty
