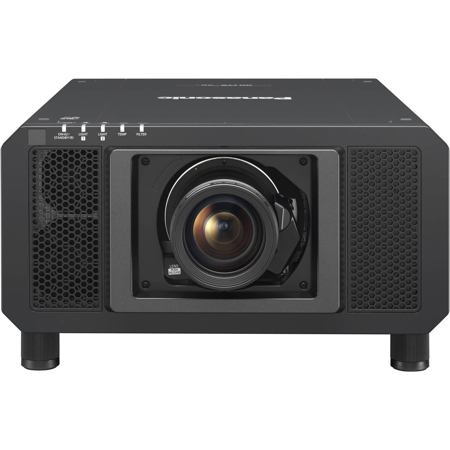

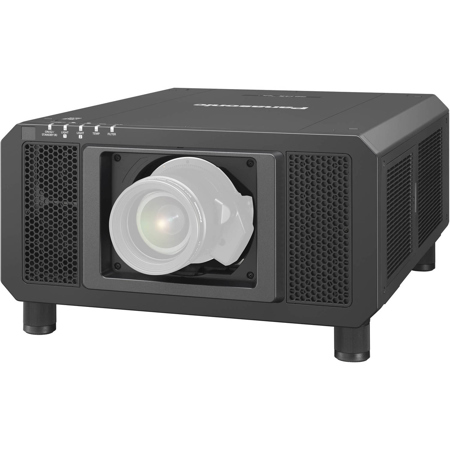

Panasonic PT-RQ13KU 10,000 Lumens, 3DLP, 4K+ (5120 x 3200) Laser Projector, No Lens

Extremely Compact 10,000 lm Laser Projection at 4K+

Add filmlike projection to any venue with the PT-RQ13K, the world's most easily handled 3-Chip DLP 4K+ projector. With Quad Pixel Drive rendering pixels invisible in 5120 x 3200 video, and outputting 10,000 lm of consistently high brightness, performance is spectacular. Pair with any lens from Panasonic's 3-Chip DLP family and see how the PT-RQ13K's small size and 360 Degree installation saves time and money. And expect up to 20,000 hours of maintenance-free operation at full power-just one of the ways we lower TCO for business operators.

Solid shine Laser Techology

Bright and Vivid Picture Quality from 3-Chip DLP SOLID SHINE Laser

Combining 3-Chip DLP imaging with original SOLID SHINE Laser Phosphor technology, Panasonic 3-Chip DLP SOLID SHINE Laser Series produces vividly colored pictures rich in detail with excellent brightness. Solid-state laser light sources and specially engineered heat-resistant phosphor wheels work together with three discrete DLP modules (R/G/B) for high brightness, true color accuracy, and high contrast in large venues.

Precision Color Reproduction

3-Chip DLP SOLID SHINE Laser projectors capture a more accurate color space than comparable laser projectors. Blue lasers ensure greater precision while an expanded color gamut improves white-balance accuracy.

Lower Total Cost of Ownership

Projector delivers up to 20,000 hours maintenance-free service at full power with no filters to clean or replace thanks to a fully sealed optical block and redesigned air intake. Energy consumption has also been reduced.

Dual-Laser Optical Engine Assures Failsafe Reliability

Dual-Drive Laser Optical Engine groups laser diodes into two discrete modules. A redundancy circuit works to minimize brightness- and color-uniformity loss should a laser diode fail, making supported products ideal for applications where picture presentation must be maintained.

Dustproof Optics Extend Longevity

Hermetically sealed laser modules and a refined air-intake system work to extend life and maintain picture quality in dusty locations. SOLID SHINE Laser products are tested against more severe guidelines than other projectors for stable operation in dusty environments containing 0.150 mg of particulate matter per cubic meter.

Efficient Cooling System Enhances Reliability

A liquid cooling system for the light source features a new air intake and solid aluminum radiator to suppress temperature rises, allowing stable operation in high temperatures while reducing noise

Eco Filter Extends Replacement Cycle to 20,000 Hours

The Eco Filter incorporates an electrostatic Micro Cut Filter that collects minute dust particles using an ion effect. It joins with a dust-resistant cabinet to enable long-term use even in punishing conditions. A long maintenance cycle of up to 20,000 hours reduces hassle, while the eco-friendly washable filter can be reused.

Brilliant Image Quality and Reliability

Quad Pixel Drive Goes Beyond 4K

Better-than-4K resolution is achieved by employing a high-speed 2560 x 1600-pixel (WQXGA) DMD chip that shifts each pixel vertically and horizontally, quadrupling the pixel-count. Working in concert with Real Motion Processor 240 Hz frame-creation, Quad Pixel Drive technology produces film-like 5120 x 3200-pixel (4K+/16:10) images. As well as silk-smooth video, this powerful processing engine renders text in the finest detail for lectures and presentations.

Pixel Quadrupling Technology
Shifting pixels vertically and horizontally creates ultra-high-resolution pictures that exceed standard Ultra HD resolution. Pixel Quadrupling Technology

Real Motion Processor
High-speed 240 Hz frame creation supports images up to 5120 x 3200 pixels (16:10) resolution.

240 Hz Real Motion Processor Reduces Motion Blur

Real Motion Processor uses sophisticated algorithms to create three additional frames for each image, boosting native 60 fps footage to 240 frames per second. The result is smooth and realistic motion rendering, particularly useful for broadcasting sporting events and other fast-paced video. Further, images can be displayed with SDI, DVI-D, and HDMI simultaneous inputs. A refined optical engine enhances focus performance for a lifelike sense of resolution, contrast, and fluidity.

Detail Clarity Processor 5+

Panasonic's next-generation circuit technology analyzes individual images frame by frame to clarify areas containing fine details and textures. Algorithms extract hidden information from super-high to low-frequency video bands, sharpening outlines, correcting contours, and reducing ringing noise to improve the sense of resolution. The technology includes an exclusive Refine Enhancer algorithm to further optimize detail reproduction in 4K+ images.

Dynamic Contrast Function for High 20,000:1 Contrast

Direct laser power output modulation achieves high contrast with less power consumption. Digitally controlled frame-by-frame scene-linking modulation ensures precise output adjustment, while accurate 20,000:1 contrast is delivered even when bright and dark scenes frequently interchange.

System Daylight View 3

Panasonic's premium System Daylight View 3 stops pictures washing out in bright light and enhances impact in mapping and multi-projector applications. It uses sensor information to adjust sharpness, manipulate gamma curves, and correct colors to suit on-site conditions.

Selectable Operational Modes

Select your preferred operational mode to balance control brightness decline with brightness output according to the specific requirements of individual applications.

Installation Flexibility and Powerful Functionality

Free 360-degree Installation

SOLID SHINE Laser technology enables free 360-degree installation through any axis. Together with powered lens shift and a wide range of optional lenses, the projector can be mounted in any way desired without picture distortion temporarily or in permanent applications.

Contrast Sync and Shutter Sync Function

Contrast Sync function, designed for multi-screen applications, allows dynamic contrast control to be synchronized for consistent picture quality across screens. Shutter Sync, meanwhile, synchronizes shutter on/off timing.

Single-Cable 4K DIGITAL LINK Connection

Based on HDBaseT technology, DIGITAL LINK supports transmission of video, audio, and control commands through a single CAT 5e or higher STP cable for distances of 150 m (492 ft) for Full HD video and 50 m (164 ft) for 4K video. An optional DIGITAL LINK Switcher or Digital Interface Box further simplifies installation in large venues while reducing cost and improving reliability.

Backup Input Setting Assures Picture Display

Projectors switch instantaneously to a backup input signal should the primary input signal be disrupted, assuring image display is maintained at all times in venues such as control rooms and adding insurance at events where projection must not be interrupted.
