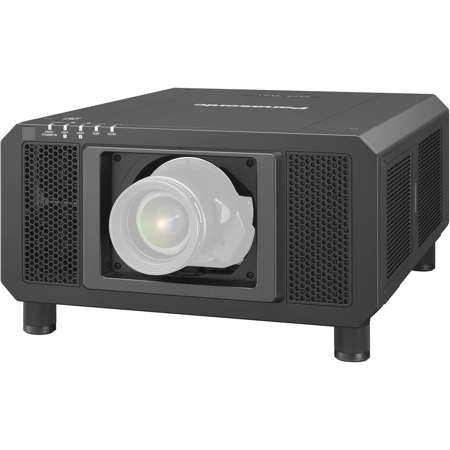

Panasonic PT-RS11KU 12,000 Lumens, 3DLP, SXGA+ (1400 x 1050) Laser Projector, No Lens

SKU: PCPTRS11KU MFR: PT-RS11KU

Key Features

  • Experience stunning visuals with 12,000 Lumens brightness, perfect for large venues.
  • Enjoy vibrant, detailed images with SXGA+ resolution (1400 x 1050) for clear presentations.
  • The laser light source offers an impressive 20,000-hour lamp life in Normal Mode.
  • Achieve optimal image alignment with versatile keystone correction features.
  • Extensive connectivity options, including HDMI and SDI inputs, for seamless integration.
  • Benefit from a high 20,000:1 contrast ratio, ensuring deep blacks and bright whites.
See More Product Details
Pre Release?

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Panasonic PT-RS11KU Specifications

  • Power supply

    AC 100-240 V, 50/60 Hz

  • Power consumption

    1200 W (0.3 W with Standby Mode set to Eco, 4 W with Standby Mode set to Normal) Normal Mode: 800 W, Eco Mode: 680 W, Long Life 1 Mode: 620 W, Long Life 2 Mode: 590 W, Long Life 3 Mode: 550 W (Operating temperature: 25 Degree C, Altitude: 700 m, IEC62087: 2008 Broadcast Content, Image Mode: Dynamic, Dynamic Contrast Mode: 3)

  • DLP Chip: Panel size

    24.1 mm (0.95 inches) diagonal (4:3 aspect ratio)

  • DLP Chip: Display method

    DLP chip x 3, DLP projection system

  • DLP Chip: Pixels

    4,410,000 (1400 x 1050 x 3) pixels

  • Refresh rate

    120 Hz

  • Lens

    Optional (no lens included with this model)

  • Light source

    Laser diodes laser Class 1 (Class 3R for US models)
    Light source life: 20,000 hours (Normal Mode) / 24,000 hours (Eco Mode), At this time the brightness will have decreased to approximately half of its original level.

  • Screen size(Diagonal)

    1.78-25.4 m (70-1000 in) with 4:3 aspect ratio
    1.78-15.24 m (70-600 in) with the ET-D75LE8, 4:3 aspect ratio
    3.05-15.24 m (120-600 in) with the ET-D75LE90, 4:3 aspect ratio

  • Brightness (lm)

    12,000 lm

  • Center-to-corner uniformity

    90%

  • Contrast Ratio

    20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)

  • Resolution

    1400 x 1050 pixels

  • Sacnning frequency: SD-SDI

    SMPTE ST 259 compliant, [YCBC 4:2:2 10-bit] 480i, 576i

  • Sacnning frequency: Single link HD-SDI

    SMPTE ST 292 compliant, [YPBPR 4:2:2 10-bit] 720/60p, 720/50p, 1035/60i, 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p

  • Sacnning frequency: Dual link HD-SDI

    SMPTE ST 372 compliant, [RGB 4:4:4 12-bit/10-bit] 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 2048 x 1080/24p, 2048 x 1080/24sF, [X"Y"Z" 4:4:4 12-bit] 2048 x 1080/24p, 2048 x 1080/24sF

  • Sacnning frequency: 3G-SDI

    SMPTE ST 424 compliant, [RGB 4:4:4 12-bit/10-bit] 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, [YPBPR 4:2:2 10-bit] 1080/60p, 1080/50p

  • Sacnning frequency: Dual link 3G-SDI

    SMPTE ST 425 compliant, [YPBPR 4:4:4 12-bit/10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p, [RGB 4:4:4 12-bit/10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p

  • Sacnning frequency: HDMI/DVI-D

    Compatible with HDCP, 480i, 576i, 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, 640 x 480-WUXGA (1920 x 1200) (compatible with non-interlaced signals only), dot clock: 25-162 MHz

  • Sacnning frequency: RGB

    fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 162 MHz or lower

  • Sacnning frequency: YPBPR (YCBCR)

    fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)], fH: 15.63 kHz, fV: 50 Hz [576i (625i)], fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)], fH: 31.25 kHz, fV: 50 Hz [576p (625p)], fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p], fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p], fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i],

  • Sacnning frequency: YPBPR (YCBCR) Contd.

    fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i], fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i], fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p], fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p], fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF], fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p], fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p], fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]

  • Scanning frequency: Video/YC

    H: 15.75 kHz, fV: 60 Hz (NTSC/NTSC4.43/PAL-M/PAL60), fH: 15.63 kHz, fV: 50 Hz (PAL/PAL-N/SECAM)

  • Optical axis shift: Vertical

    +/-50 % (+/-40 % with the ET-D75LE6, +71 % [fixed] with the ET-D75LE90) (powered)

  • Optical axis shift: Horizontal

    +/-30 % (+/-20 % with the ET-D75LE6, fixed with the ET-D75LE90) (powered)

  • Keystone correction range

    Vertical: +/-40 Degree (+/- 22 Degree with ET-D75LE50, +/-28 Degree with ET-D75LE6, +5 Degree with ET-D75LE90), horizontal: +/-15 Degree (0 Degree with ET-D75LE90)

  • Keystone correction range w/ upgrade kit

    Vertical: +/-45 Degree (+/- 40 Degree with ET-D75LE10/20, +/-22 Degree with ET-D75LE50, +/-28 Degree with ET-D75LE6, +5 Degree with ET-D75LE90), horizontal: +/-40 Degree (+/-15 Degree with ET-D75LE50/6, 0 Degree with ET-D75LE90), Up to a total of +/-55 Degree during simultaneous horizontal and vertical correction.

  • Installation

    Horizontal/vertical, free 360-degree installation

  • Terminals: SDI IN 1

    BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (LINK-A), Dual-link 3G-SDI (LINK 1)

  • Terminals: SDI IN 2

    BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (LINK-B), Dual-link 3G-SDI (LINK 2)

  • Terminals: HDMI IN

    HDMI 19-pin x 1 (Deep Color, compatible with HDCP)

  • Terminals: DVI-D IN

    DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only

  • Terminals: RGB 1 IN

    RGB x 1 (BNC x 5): RGB/YPBPR/YCBCR/YC/VIDEO

  • Terminals: RGB 2 IN

    D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBCR

  • Terminals: 3D SYNC 1 IN/OUT

    BNC x 1: 3D timing signal

  • Terminals: 3D SYNC 2 OUT

    BNC x 1: 3D timing signal

  • Terminals: SERIAL IN

    D-sub 9-pin (female) x 1 for external control (RS-232C compliant)

  • Terminals: SERIAL OUT

    D-sub 9-pin (male) x 1 for link control

  • Terminals: REMOTE 1 IN

    M3 x 1 for wired remote control, link control

  • Terminals: REMOTE 1 OUT

    M3 x 1 for wired remote control, link control

  • Terminals: REMOTE 2 IN

    D-sub 9-pin (female) x 1 for external control (parallel)

  • Terminals: DIGITAL LINK/LAN

    RJ-45 x 1 for network, DIGITAL LINK connection, 100Base-TX, compatible with Art-Net, PJLink (class 1), Deep Color, HDCP

  • Cabinet materials

    Molded plastic

  • Operation noise

    43 dB

  • Operating environment

    Operating temperature: 0-50 Degree C (32-122 Degree F), operating humidity: 10- 80 % (no condensation)

  • Applicable software

    Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10 Auto Screen Adjustment Upgrade Kit) (Available worldwide except in the United States)

  • Dimensions (W x H x D)

    578 x 270 x 725 mm (22 3/4" x 10 5/8" x 28 17/32" ) (Not including legs or protruding parts)
    578 x 323.5 x 740 mm (22 3/4" x 12 23/32" x 29 1/8" ) (Including legs at shortest position and protruding parts)

  • Weight

    97 lbs (Approx. 44 kg) (optional lens not included)

  • UPC Code

    885170246706

8 Accessories for Panasonic PT-RS11KU 12,000 Lumens, 3DLP, SXGA+ (1400 x 1050) Laser Projector, No Lens

  • All Accessories (8)
  • Lenses (2)
  • Screens (3)
  • Laptop Stand (1)
  • Lamps & Bulbs (2)

About Panasonic PT-RS11KU

Reference Images with the Efficiency of Laser

The 12,000 lm PT-RS11K 3-Chip DLP projector combine class-leading imaging technologies with the practical advantages of Panasonic SOLID SHINE Laser: minimal picture quality degradation over long periods in continuous use, 20,000-hour maintenance-free operation, flexible installation, failsafe reliability, and a wealth of powerful features for creative visual presentations in large spaces.

SOLID SHINE Laser Techology

Bright and Vivid Picture Quality from 3-Chip DLP SOLID SHINE Laser

Combining 3-Chip DLP imaging with original SOLID SHINE Laser Phosphor technology, Panasonic 3-Chip DLP SOLID SHINE Laser Series produces vividly colored pictures rich in detail with excellent brightness. Solid-state laser light sources and specially engineered heat-resistant phosphor wheels work together with three discrete DLP modules (R/G/B) for high brightness, true color accuracy, and high contrast in large venues.

Precision Color Reproduction

3-Chip DLP SOLID SHINE Laser projectors capture a more accurate color space than comparable laser projectors. Blue lasers ensure greater precision while an expanded color gamut improves white-balance accuracy.

Lower Total Cost of Ownership

Projector delivers up to 20,000 hours maintenance-free service at full power with no filters to clean or replace thanks to a fully sealed optical block and redesigned air intake. Energy consumption has also been reduced.

Dual-Laser Optical Engine Assures Failsafe Reliability

Dual-Drive Laser Optical Engine groups laser diodes into two discrete modules. A redundancy circuit works to minimize brightness- and color-uniformity loss should a laser diode fail, making supported products ideal for applications where picture presentation must be maintained.

Dustproof Optics Extend Longevity

Hermetically sealed laser modules and a refined air-intake system work to extend life and maintain picture quality in dusty locations. SOLID SHINE Laser products are tested against more severe guidelines than other projectors for stable operation in dusty environments containing 0.150 mg of particulate matter per cubic meter

Efficient Cooling System Enhances Reliability

A liquid cooling system for the light source features a new air intake and solid aluminum radiator to suppress temperature rises, allowing stable operation in high temperatures while reducing noise

Eco Filter Extends Replacement Cycle to 20,000 Hours

The Eco Filter incorporates an electrostatic Micro Cut Filter that collects minute dust particles using an ion effect. It joins with a dust-resistant cabinet to enable long-term use even in punishing conditions. A long maintenance cycle of up to 20,000 hours reduces hassle, while the eco-friendly washable filter can be reused.

High Image Quality and Reliability

Lightweight Design Outputs High Brightness

With proprietary optical drive system optimized for the light source, efficient cooling systems, and lightweight yet tough cabinet materials, these projectors achieve high brightness in units that are smaller, lighter, and easier to handle.

120 Hz Real Motion Processor Reduces Motion Blur

Real Motion Processor interpolates images for a 120 Hz frame-rate. Smooth, stutter-free 120 Hz reproduction is also possible using simultaneous inputs (two 3G-SDI inputs or DVI-D/HDMI combination). Together with a refined optical engine that enhances focus, Real Motion Processor delivers a better sense of resolution, contrast, and fluidity of motion.

Detail Clarity Processor 5

Proprietary circuitry analyzes individual video frames to identify and clarify areas of the image containing fine details and textures. Algorithms pull information from four frequency bandwidths, from super-high to low, to sharpen outlines, correct contours, and reduce ringing noise.

Dynamic Contrast Function for High 20,000:1 Contrast

Direct laser power output modulation achieves high contrast with less power consumption. Digitally controlled frame-by-frame scene-linking modulation ensures precise output adjustment, while accurate 20,000:1 contrast is delivered even when bright and dark scenes frequently interchange.

System Daylight View 3

Panasonic's premium System Daylight View 3 stops pictures washing out in bright light and enhances impact in mapping and multi-projector applications. It uses sensor information to adjust sharpness, manipulate gamma curves, and correct colors to suit on-site conditions.

Selectable Operational Modes

Select your preferred operational mode to balance control brightness decline with brightness output according to the specific requirements of individual applications.

Installation Flexibility and Powerful Functionality

Free 360-degree Installation

SOLID SHINE Laser technology enables free 360-degree installation through any axis. Together with powered lens shift and a wide range of optional lenses, the projector can be mounted in any way desired without picture distortion temporarily or in permanent applications.

Single-Cable DIGITAL LINK Connection

DIGITAL LINK transmits uncompressed video, audio, and control commands through a single CAT 5e or higher STP cable for distances of 150 m (492 ft). An optional DIGITAL LINK Switcher or Digital Interface Box further simplifies installation in large venues while reducing cost and improving reliability.

Backup Input Setting Assures Picture Display

Projectors switch instantaneously to a backup input signal should the primary input signal be disrupted, assuring image display is maintained at all times in venues such as control rooms and adding insurance at events where projection must not be interrupted.

Geometry Manager Pro Software and Upgrade Kits

Geometry Manager Pro software expands image-adjustment functionality and makes complex multi-screen setup easy. The free software includes color matching, edge blending, and many other functions via network. An optional ET-UK20 Upgrade Kit for Geometry Manager Pro adds uniformity correction and numerous creative masking capabilities, while the optional ET-CUK10 Series kit activates an Auto Screen Adjustment plug-in, allowing automatic and simultaneous setup of multiple projectors. The plugin performs multi-screen and curved-screen calibration in three quick steps using a camera and PC connected to the network, simplifying adjustment, edge blending, color matching, stacking, brightness, and black level setup.

Active 3D Projection Capability

This Panasonic projector is compatible with active 3D projection technology. It supports an external transmitter and active-shutter glasses, or an active filter and passive glasses for viewing 3D images.

Panasonic PT-RS11KU Features

  • High picture quality and brightness of 12,000 lm in a very compact and lightweight body
  • Up to 20,000 hours of reliable maintenance-free operation
  • Installation flexibility and powerful functionality
  • Applications: Rental/Staging, Auditorium, Museums
  • House of Worship and more

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience stunning visuals with 12,000 Lumens brightness, perfect for large venues.
  • Enjoy vibrant, detailed images with SXGA+ resolution (1400 x 1050) for clear presentations.
  • The laser light source offers an impressive 20,000-hour lamp life in Normal Mode.
  • Achieve optimal image alignment with versatile keystone correction features.
  • Extensive connectivity options, including HDMI and SDI inputs, for seamless integration.
  • Benefit from a high 20,000:1 contrast ratio, ensuring deep blacks and bright whites.

What's in the box:

  • Projector (No Lens)
  • Power Cord with Secure Lock
  • Wireless/Wired Remote Control
  • 2 x R6/AA Batteries
  • Logo Transfer Software
  • Multi-Projector Monitoring & Control Software
  • Panasonic 3 Year Limited Warranty on Projector (90 Day Limited Warranty on Lamp)
