45% Off

Panasonic PT-RW620LBU WXGA Solid Shine 1-Chip DLP Laser Projector, 1280x800, 6200 Lumens, Lens Not Included, Black

SKU: PCPTRW620LBU MFR: PT-RW620LBU
Earn VIP Reward Points

Key Features

  • Experience stunning visuals with 6200 Lumens brightness, perfect for large venues.
  • Enjoy a long-lasting performance with a 20,000-hour laser lamp life in normal mode.
  • Achieve crisp images with WXGA resolution, ideal for detailed presentations.
  • Easily connect devices via HDMI, DVI-D, and DIGITAL LINK connectivity options.
  • Utilize keystone correction for a perfectly aligned image, even in challenging spaces.
  • Benefit from 360-degree installation, offering flexible placement in any environment.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Panasonic PT-RW620LBU Specifications

  • DLP chip: Panel size

    16.5mm (0.65 in) diagonal (16:10 aspect ratio)

  • DLP chip: Display method

    DLP chip x 1, DLP projection system

  • DLP chip: Pixels

    2,304,000 (1,920 x 1,200) pixels

  • Light source

    Laser diodes laser Class 1 (Class 3R for US models), light source life: 20,000 hours (Normal Mode) / 24,000 hours (Eco Mode)
    At this time the brightness will have decreased to approximately half of its original level

  • Screen size (diagonal)

    1.27-15.24m (50-600")
    1.27-5.08m (50-200") with the ET-DLE055
    2.54-8.89m (100-350") with the ET-DLE030
    16:10 aspect ratio

  • Brightness

    6,200 lm (Center)/6,000 lm

  • Center-to-corner uniformity

    90%

  • Contrast

    10,000:1 (Full on/off, with Dynamic Contrast Mode set to "3" )

  • Resolution

    1,280 x 800 pixels

  • Scanning frequency: SDI

    SD-SDI: SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480i(525i), 576i(625i)
    HD-SDI: SMPTE ST 292 compliant, [YPBPR 4:2:2 10-bit] 720(750)/60p, 720(750)/50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p
    3G-SDI: SMPTE ST 424 compliant, [RGB 4:4:4 12-bit/10-bit] 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, [YPBPR 4:2:2 10-bit] 1080(1125)/60p, 1080(1125)/50p

  • Scanning freq.: HDMI/DVI-D/DIGITAL LINK

    480i (525i), 576i (625i), 480p (525p), 576p (625p), 720 (750)/60p, 720 (750)/50p, 1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/25p, 1080 (1125)/24p, 1080 (1125)/24sF, 1080 (1125)/30p, 1080 (1125)/60p, 1080 (1125)/50p, VGA (640 x 480) WUXGA (1920 x 1200) (compatible with non-interlaced signals only)
    Dot clock: 25 162 MHz

  • Scanning frequency: RGB

    fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 20-162 MHz

  • Scanning frequency: YPBPR (YCBCR)

    fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
    fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
    fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
    fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
    fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
    fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
    fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
    fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]

  • Scanning frequency: YPBPR (YCBCR)(cont.)

    fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
    fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
    fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
    fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
    fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
    fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
    fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]

  • Scanning frequency: Video/YC

    fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
    fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]

  • Optical axis shift: Vertical

    +60 %, -16 % (powered)

  • Optical axis shift: Horizontal

    +30 %, -10 % (+28 %, -10 % with ET-DLE085) (powered)

  • Keystone correction range

    Vertical: +/-40 deg. (+/-22 deg. with ET-DLE085/DLE055, +5 deg. with ET-DLE030)
    Horizontal: +/-15 deg. (cannot be operated with ET-DLE030)

    With Optional upgrade kit ET-UK20:
    Vertical: +/-45 deg. (+/-40 deg. with the ET-DLE150/ET-DLE250/ supplied lens, +/-22 deg. with the ET-DLE085/ET-DLE055)
    Horizontal: +/-40 deg. (+/-15 deg. with ET-DLE085/ET-DLE055)
    Up to a total of +/-55 deg. during simultaneous horizontal and vertical correction.

  • Installation

    Ceiling/floor, front /rear, free 360-degree installation

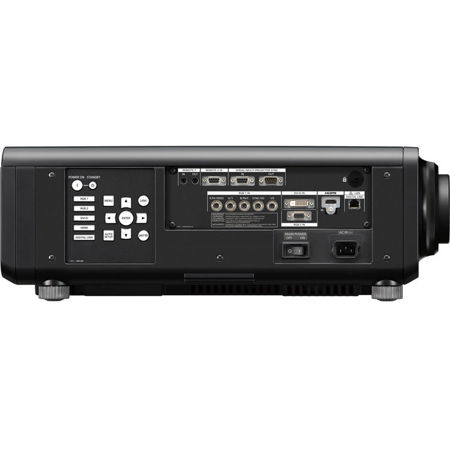

  • Terminals

    SDI IN: 1x BNC (3G/HD/SD-SDI)
    HDMI IN: 1x HDMI 19-pin (Deep Color, compatible with HDCP)
    DVI-D IN: 1x DVI-D 24-pin (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
    RGB 1 IN: 5x BNC (1x RGB/YPBPR/YCBCR/YC/Video)
    RGB 2 IN: 1x D-Sub HD 15-pin (female) (1x RGB/YPBPR/YCBCR)

  • Terminals (cont.)

    SERIAL/ MULTI PROJECTOR SYNC IN: 1x D-sub 9-pin (female) for external control (RS-232C compliant)
    SERIAL/ MULTI PROJECTOR SYNC OUT: 1x D-sub 9-pin (male) for link control
    REMOTE 1 IN: M3 x 1 for wired remote control
    REMOTE 1 OUT: M3 x 1 for link control (for wired remote control)
    REMOTE 2 IN: 1x D-sub 9-pin (female) for external control (parallel)
    LAN/DIGITAL LINK: 1x RJ-45 (for network, DIGITAL LINK connection, 100Base-TX, compatible with Art-Net, PJLink)

  • Cabinet materials

    Molded plastic

  • Noise level

    35 dB

  • Power supply

    100-240 V AC, 10.4-5.0 A, 50/60 Hz

  • Power consumption

    700 W,
    (499 W with OPERATING MODE set to NORMAL,
    428 W with OPERATING MODE set to ECO,
    287-402 W with OPERATING MODE set to LONG LIFE 1,
    262-402 W with OPERATING MODE set to LONG LIFE 2,
    238-402 W with OPERATING MODE set to LONG LIFE 3,
    69 W with OPERATING MODE set to SHUTTER)
    (0.2 W with STANDBY MODE set to ECO,
    3 W with STANDBY MODE set to NORMAL,
    85 W with QUICK STARTUP set to ON.)

  • Operating environment

    Operating temperature: 0 to 45 deg. C / 32 to 113 deg. F
    Operating humidity: 10-80 % (no condensation)

  • Applicable software

    Logo Transfer Software
    Multi Monitoring & Control Software
    Early Warning Software
    Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10 Auto Screen Adjustment Kit)

  • Dimensions (W x H x D)

    498 x 200 x 538mm (19.61 x 7.87 x 21.18")

  • Weight

    Approx. 22.3kg (49.16lbs)

  • UPC Code

    00885170289079

12 Accessories for Panasonic PT-RW620LBU WXGA Solid Shine 1-Chip DLP Laser Projector, 1280x800, 6200 Lumens, Lens Not Included, Black

  • All Accessories (12)
  • Brackets & Mounts (1)
  • Projection Screen (4)
  • Laptop Stand (1)
  • Lenses (4)
  • Cables & Adapters (2)

About Panasonic PT-RW620LBU

Designed for intensive usage and long lasting brightness in education, museums, exhibitions and digital signage applications.

• High brightness and excellent image quality with laser light source
• Maintenance free up to 20,000 hours with dust-resistant optical block and long lasting laser engine
• Free 360 degrees installation and Geometric Manager Pro function

Wide spectrum color with up to 7.200 lm (center) brightness
With the next generation of the DLP technology the RZ660 series is delivering high resolution in detail and the dual laser modules outputting a brightness of up to 7.200 lm (center). Due to the quartet color harmonizer the energy loss of the light source is reduced and the robust and heat resistant phosphor wheel the of PT-RZ660 solid shine laser series produces scintillating images with unfailing reliability.

Outstanding white balance and color reproduction
The quartet color harmonizer wheel mechanism captures a wider color space than comparable laser projectors, which allows white to be reproduced realistically on the screen. With conventional projectors it's difficult to achieve an accurate white balance causing images to appear with a distracting greenish tint. Panasonic's quartet color harmonizer eliminates this negative impact by adding an additional yellow segment to the color wheel to produce whites with unparalleled accuracy for natural and realistic picture quality.

Maintain image quality for longer use
Thanks to the long lasting dual solid state laser modules, there are no lamps which needs to be replaced. The image colors and brightness degrades very gradually in consistent, linear fashion. As well as reducing maintenance hassle, out-of-the-box picture quality preserves longer.

Dependable 24/7 operation with failover protection
With the dual drive laser optical engine the laser diodes are grouped into two discrete modules. A failsafe redundancy circuit works to minimize the brightness- and color uniformity loss if a laser diode fails. In combination with the 20.000 hours maintenance-free projection period the PT-RZ660 series is ideal for mission critical applications.

Dynamic light control delivers better contrast
The PT-RZ660 series directly modulates laser power output to achieve a high contrast with low power consumption. A digitally controlled frame-by-frame scene-linking modulation ensures highly precise output adjustment, while the accurate 10.000:1 contrast ratio is delivered even when bright and dark scenes are frequently interchanging.

Vivid images in bright environments
Panasonics premium system daylight view 3 prevents images from washing cut in well-lit environments and enhances brightness perception in multi-projector mapping applications by adjusting sharpness and gamma curves and correcting colors. The result is a greater visual impact even in challenging conditions.

Detail clarity processor 3 - Sharpness in the finest details
This unique Panasonic circuit optimizes the sharpness of each image based on the super high, high, medium and low frequency components of the extracted image information. The resulting images are expressed with natural and convincing realism.

Dust-resistant airtight optical block
The optical block of the PT-RZ660 series is airtight, ensuring consistent, long-lasting image quality for up to 20.000 hours without maintenance. The optical block design passed stringent testing to assure utmost reliability in environments with up to 0,15mg of particulate matter per cubic meter . The structure prevents brightness degradation from dust intrusion.

Select a mode to maintain image quality for longer

Approximately 20.000 hours of continuous operation
In Normal Mode, the PT-RZ660 series can operate continuously for about 20.000 hours. In Eco Mode, this is extended to around 24.000 hours. These modes enhance suitability for education and signage application.

Long Life mode offers up to 10 years maintenance free
In environments where full brightness is not necessary, such as surveillance, control- and simulation-rooms, constant operation modes extend light-source replacement up to 87.600 hours in Long Life Mode 3 - about 10 years of 24/7 operation with consistent brightness and color.

User operation modes
In addition to present operation modes, the PT-RZ660 series can be customized to achieve your preferred balance of brightness performance or extended life.

Original Contrast Sync and Shutter Sync functions
The PT-RZ660 series is among the world's first to feature contrast and shutter sync functions for multi-screen and mapping applications. Contrast Sync allows the projector's digitally modulated contrast function to be synchronized over the network for consistent picture quality across the screens, while Shutter Sync incorporates a master/slave principle to synchronize shutter on/off timing between all networked projectors. It includes simultaneous face-in and fade-out functions.

Geometric Adjustment adapts special projection surfaces
Geo Adjustment adapts the image for projection into spherical, cylindrical and other special shaped screens. Fine-tuning is performed with the remote control with no external equipment needed. paired with Multi-Screen support system, highly creative mapping presentations are possible in variety of event and staging applications.

Single-cable Digital Link control and video connection
Upward HDBaseT compatible Digital Link supports transmission of uncompressed Full HD video and control commands through a single CAT 5e or higher STP cable for distances of up to 150m. Add an optional Digital Link switcher (ET-YFB200) or Digital Interface Box (ET-YFB100) to further simplify installation in large venues while reducing cost and improving reliability at the same time.

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience stunning visuals with 6200 Lumens brightness, perfect for large venues.
  • Enjoy a long-lasting performance with a 20,000-hour laser lamp life in normal mode.
  • Achieve crisp images with WXGA resolution, ideal for detailed presentations.
  • Easily connect devices via HDMI, DVI-D, and DIGITAL LINK connectivity options.
  • Utilize keystone correction for a perfectly aligned image, even in challenging spaces.
  • Benefit from 360-degree installation, offering flexible placement in any environment.

What's in the box:

  • Panasonic PT-RW620LBU WXGA Solid Shine 1-Chip DLP Laser Projector
  • Power Cord with Secure Lock
  • Wireless/Wired Remote Control Unit
  • 2x R03/AAA Battery
  • Software CD-ROM (Logo Transfer
  • Multi Monitoring & Control Software)
  • Panasonic Warranty
