Review Summary
AC 100-240 V, 50/60 Hz
1200 W (0.3 W with Standby Mode set to Eco, 4 W with Standby Mode set to Normal) Normal Mode: 800 W, Eco Mode: 680 W, Long Life 1 Mode: 620 W, Long Life 2 Mode: 590 W, Long Life 3 Mode: 550 W (Operating temperature: 25 Degree C, Altitude: 700 m, IEC62087: 2008 Broadcast Content, Image Mode: Dynamic, Dynamic Contrast Mode: 3)
24.4 mm (0.96 inches) diagonal (16:10 aspect ratio)
DLP chip x 3, DLP projection system
6,912,000 (1920 x 1200 x 3) pixels
120 Hz
Optional (no lens included with this model)
Laser diodes laser Class 1 (Class 3R for US models)
Light source life: 20,000 hours (Normal Mode) / 24,000 hours (Eco Mode), At this time the brightness will have decreased to approximately half of its original level.
1.78-25.4 m (70-1000 in) with 16:10 aspect ratio
1.78-15.24 m (70-600 in) with the ET-D75LE8, 16:10 aspect ratio
3.05-15.24 m (120-600 in) with the ET-D75LE90, 16:10 aspect ratio
12,000 lm
90%
20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
1920 x 1200 pixels
SMPTE ST 259 compliant, [YCBC 4:2:2 10-bit] 480i, 576i
SMPTE ST 292 compliant, [YPBPR 4:2:2 10-bit] 720/60p, 720/50p, 1035/60i, 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
SMPTE ST 372 compliant, [RGB 4:4:4 12-bit/10-bit] 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 2048 x 1080/24p, 2048 x 1080/24sF, [X"Y"Z" 4:4:4 12-bit] 2048 x 1080/24p, 2048 x 1080/24sF
SMPTE ST 424 compliant, [RGB 4:4:4 12-bit/10-bit] 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, [YPBPR 4:2:2 10-bit] 1080/60p, 1080/50p
SMPTE ST 425 compliant, [YPBPR 4:4:4 12-bit/10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p, [RGB 4:4:4 12-bit/10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p
Compatible with HDCP, 480i, 576i, 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, 640 x 480-WUXGA (1920 x 1200) (compatible with non-interlaced signals only), dot clock: 25-162 MHz
fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 162 MHz or lower
fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)], fH: 15.63 kHz, fV: 50 Hz [576i (625i)], fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)], fH: 31.25 kHz, fV: 50 Hz [576p (625p)], fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p], fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p], fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i], fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i], fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p], fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p], fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF], fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p], fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p], fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
H: 15.75 kHz, fV: 60 Hz (NTSC/NTSC4.43/PAL-M/PAL60), fH: 15.63 kHz, fV: 50 Hz (PAL/PAL-N/SECAM)
+/-55 % (+/-44 % with the ET-D75LE6, +73 % - +78 % with the ET-D75LE90) (powered)
+/-20 % (+/-15 % with the ET-D75LE6, +/-6 % with the ET-D75LE90) (powered)
Vertical: +/-40 Degree (+/- 22 Degree with ET-D75LE50, +/-28 Degree with ET-D75LE6, +5 Degree with ET-D75LE90), horizontal: +/-15 Degree (0 Degree with ET-D75LE90)
Vertical: +/-45 Degree (+/- 40 Degree with ET-D75LE10/20, +/-22 Degree with ET-D75LE50, +/-28 Degree with ET-D75LE6, +5 Degree with ET-D75LE90), horizontal: +/-40 Degree (+/-15 Degree with ET-D75LE50/6, 0 Degree with ET-D75LE90), Up to a total of +/-55 Degree during simultaneous horizontal and vertical correction.
Horizontal/vertical, free 360-degree installation
BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (LINK-A), Dual-link 3G-SDI (LINK 1)
BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (LINK-B), Dual-link 3G-SDI (LINK 2)
HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only
RGB x 1 (BNC x 5): RGB/YPBPR/YCBCR/YC/VIDEO
D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBCR
BNC x 1: 3D timing signal
BNC x 1: 3D timing signal
D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
D-sub 9-pin (male) x 1 for link control
M3 x 1 for wired remote control, link control
M3 x 1 for wired remote control, link control
D-sub 9-pin (female) x 1 for external control (parallel)
RJ-45 x 1 for network, DIGITAL LINK connection, 100Base-TX, compatible with Art-Net, PJLink (class 1), Deep Color, HDCP
Molded plastic
43 dB
Operating temperature: 0-50 Degree C (32-122 Degree F), operating humidity: 10- 80 % (no condensation)
When operational mode is set to Eco or Long Life 1/2/3, operating temperature is from 0 Degree C (32 Degree F) to 45 Degree C (113 Degree F). When used with Smoke Cut Filter, operating temperature is from 0 Degree C (32 Degree F) to 40 Degree C (104 Degree F). Projector cannot be used in locations over 2,700 m (8,858 ft) with operational mode set to Eco or Long Life 1/2/3.
Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10 Auto Screen Adjustment Upgrade Kit) (Available worldwide except in the United States)
578 x 270 x 725 mm (22 3/4" x 10 5/8" x 28 17/32" ) (Not including legs or protruding parts)
578 x 323.5 x 740 mm (22 3/4" x 12 23/32" x 29 1/8" ) (Including legs at shortest position and protruding parts)
97 lbs (Approx. 44 kg) (optional lens not included)
885170246683

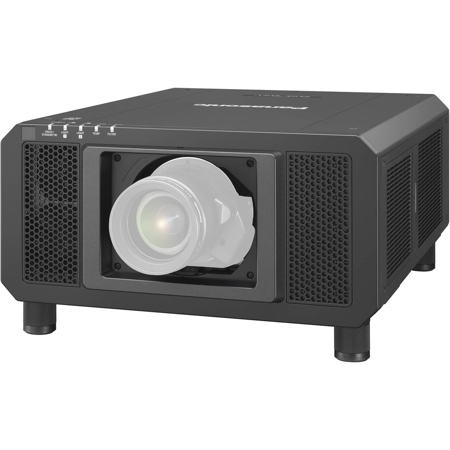

An epitome of high-quality projection, the PT-RZ12KU 12,000 Lumens 3DLP WUXGA Laser Projector from Panasonic is a powerhouse of advanced visual technology, designed for professional environments that demand powerful, clear, and reliable large-scale image projection. With its impressive WUXGA (1920 x 1200) resolution, this projector delivers exceptionally detailed and vibrant images, making it an ideal choice for large venues such as conference rooms, auditoriums, and outdoor events.
Crafted with innovative SOLID SHINE Laser Technology, the PT-RZ12KU ensures minimal picture quality degradation even during extended periods of continuous use. Its 20,000-hour maintenance-free operation and flexible installation options underscore its durable and user-friendly design. The projector's dual-laser optical engine provides failsafe reliability, with a redundancy circuit that minimizes any loss in brightness or color uniformity, should a laser diode fail.
The PT-RZ12KU's 3-Chip DLP imaging is complemented by Panasonic's original SOLID SHINE Laser Phosphor technology, producing images with true color accuracy and high contrast. The solid-state laser light sources, heat-resistant phosphor wheels, and discrete DLP modules (R/G/B) work in harmony to achieve high brightness and a wide color gamut, ensuring white-balance accuracy and precision color reproduction.
Dustproof optics and a refined air-intake system contribute to the projector's longevity and consistent picture quality, even in dusty environments. The efficient cooling system, featuring a liquid cooling mechanism and solid aluminum radiator, allows for stable operation in various temperature conditions while also reducing operational noise.
The PT-RZ12KU is not only robust but also eco-friendly, with an Eco Filter that boasts a 20,000-hour replacement cycle. The electrostatic Micro Cut Filter captures minute dust particles, and its washable design supports long-term use and sustainability.
In terms of image quality, the projector's lightweight design does not compromise on brightness. The 120 Hz Real Motion Processor reduces motion blur, ensuring smooth and fluid motion for all types of content. The Detail Clarity Processor 5 sharpens and clarifies fine details, enhancing the overall image texture and reducing noise.
For dynamic scenes, the projector's Dynamic Contrast Function delivers a high contrast ratio of 20,000:1, modulating laser power output to achieve precise adjustment and energy efficiency. Panasonic's System Daylight View 3 enhances image quality in bright conditions, optimizing sharpness and color to suit on-site lighting.
Installation flexibility is paramount with the PT-RZ12KU. Its free 360-degree installation capability, powered lens shift, and compatibility with a range of optional lenses allow for versatile mounting options without image distortion. The DIGITAL LINK feature simplifies connectivity, allowing for long-distance transmission of video, audio, and control commands through a single cable.
For added reliability, the projector includes a backup input setting to ensure continuous image display. The Geometry Manager Pro software and available upgrade kits facilitate complex multi-screen setups and adjustments, streamlining the calibration process for multi-screen and curved-screen displays.
Finally, the PT-RZ12KU supports active 3D projection capability, compatible with both active-shutter and passive glasses, making it a comprehensive solution for immersive 3D presentations.
In summary, the PT-RZ12KU 12,000 Lumens 3DLP WUXGA Laser Projector is a testament to Panasonic's commitment to providing durable, innovative, and high-performance projection solutions for demanding professional applications.
