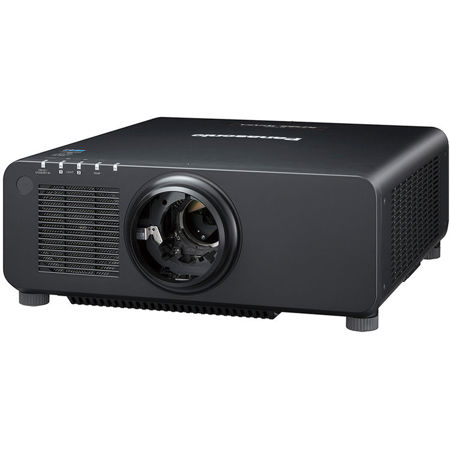

Panasonic PT-RZ660LBU WUXGA Solid Shine DLP Laser Projector without Lens, Black
Panasonic PT-RZ660LBU: Picture 1 thumbnail
Panasonic PT-RZ660LBU: Picture 2 thumbnail
Panasonic PT-RZ660LBU: Picture 3 thumbnail
Panasonic PT-RZ660LBU: Picture 4 thumbnail
Panasonic PT-RZ660LBU: Picture 5 thumbnail
Panasonic PT-RZ660LBU: Picture 6 thumbnail
See all Panasonic items
55% Off

Panasonic PT-RZ660LBU WUXGA Solid Shine 1-Chip DLP Laser Projector, 1920x1200, 6200 Lumens, Lens Not Included, Black

SKU: PCPTRZ660LBU MFR: PT-RZ660LBU
Be the first to review this itemAsk a Question
$6,949.99
$15,599.00
Save: $8649.01 (55%)
OR
$580/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience stunning visuals with 6200 Lumens brightness, perfect for large venues.
  • Enjoy long-lasting performance with a 20,000-hour lamp life, reducing maintenance.
  • Achieve crisp, detailed images with WUXGA resolution for impactful presentations.
  • Versatile connectivity options, including HDMI and DIGITAL LINK, simplify setup.
  • Easily correct image distortion with vertical and horizontal keystone correction.
  • Install this portable projector in any orientation with its flexible 360-degree design.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Panasonic PT-RZ660LBU Specifications

  • DLP chip: Panel size

    17.0mm (0.67") diagonal (16:10 aspect ratio)

  • DLP chip: Display method

    DLP chip x 1, DLP projection system

  • DLP chip: Pixels

    2,304,000 (1,920 x 1,200) pixels

  • Light source

    Laser diodes laser Class 1 (Class 3R for US models), light source life: 20,000 hours (Normal Mode) / 24,000 hours (Eco Mode)
    At this time the brightness will have decreased to approximately half of its original level

  • Screen size (diagonal)

    1.27-15.24m (50-600")
    1.27-5.08m (50-200") with the ET-DLE055
    2.54-8.89m (100-350") with the ET-DLE030
    16:10 aspect ratio

  • Brightness

    6,200 lm (Center)/6,000 lm

  • Center-to-corner uniformity

    90%

  • Contrast

    10,000:1 (Full on/off, with Dynamic Contrast Mode set to "3" )

  • Resolution

    1,920 x 1,200 pixels

  • Scanning frequency: SDI

    SD-SDI: SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480i(525i), 576i(625i)
    HD-SDI: SMPTE ST 292 compliant, [YPBPR 4:2:2 10-bit] 720(750)/60p, 720(750)/50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p
    3G-SDI: SMPTE ST 424 compliant, [RGB 4:4:4 12-bit/10-bit] 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, [YPBPR 4:2:2 10-bit] 1080(1125)/60p, 1080(1125)/50p

  • Scanning freq.: HDMI/DVI-D/DIGITAL LINK

    480i (525i), 576i (625i), 480p (525p), 576p (625p), 720 (750)/60p, 720 (750)/50p, 1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/25p, 1080 (1125)/24p, 1080 (1125)/24sF, 1080 (1125)/30p, 1080 (1125)/60p, 1080 (1125)/50p, VGA (640 x 480) WUXGA (1920 x 1200) (compatible with non-interlaced signals only)
    Dot clock: 25 162 MHz

  • Scanning frequency: RGB

    fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 20-162 MHz

  • Scanning frequency: YPBPR (YCBCR)

    fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
    fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
    fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
    fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
    fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
    fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
    fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
    fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]

  • Scanning frequency: YPBPR (YCBCR)(cont.)

    fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
    fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
    fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
    fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
    fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
    fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
    fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]

  • Scanning frequency: Video/YC

    fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
    fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]

  • Optical axis shift: Vertical

    +50 %, -16 % (powered)

  • Optical axis shift: Horizontal

    +30 %, -10 % (+28 %, -10 % with ET-DLE085) (powered)

  • Keystone correction range

    Vertical: +/-40 deg. (+/-22 deg. with ET-DLE085/DLE055, +5 deg. with ET-DLE030)
    Horizontal: +/-15 deg. (cannot be operated with ET-DLE030)

    With Optional upgrade kit ET-UK20:
    Vertical: +/-45 deg. (+/-40 deg. with the ET-DLE150/ET-DLE250/ supplied lens, +/-22 deg. with the ET-DLE085/ET-DLE055)
    Horizontal: +/-40 deg. (+/-15 deg. with ET-DLE085/ET-DLE055)
    Up to a total of +/-55 deg. during simultaneous horizontal and vertical correction.

  • Installation

    Ceiling/floor, front /rear, free 360-degree installation

  • Terminals

    SDI IN: 1x BNC (3G/HD/SD-SDI)
    HDMI IN: 1x HDMI 19-pin (Deep Color, compatible with HDCP)
    DVI-D IN: 1x DVI-D 24-pin (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
    RGB 1 IN: 5x BNC (1x RGB/YPBPR/YCBCR/YC/Video)
    RGB 2 IN: 1x D-Sub HD 15-pin (female) (1x RGB/YPBPR/YCBCR)

  • Terminals (cont.)

    SERIAL/ MULTI PROJECTOR SYNC IN: 1x D-sub 9-pin (female) for external control (RS-232C compliant)
    SERIAL/ MULTI PROJECTOR SYNC OUT: 1x D-sub 9-pin (male) for link control
    REMOTE 1 IN: M3 x 1 for wired remote control
    REMOTE 1 OUT: M3 x 1 for link control (for wired remote control)
    REMOTE 2 IN: 1x D-sub 9-pin (female) for external control (parallel)
    LAN/DIGITAL LINK: 1x RJ-45 (for network, DIGITAL LINK connection, 100Base-TX, compatible with Art-Net, PJLink)

  • Cabinet materials

    Molded plastic

  • Noise level

    35 dB

  • Operating environment

    Operating temperature: 0 to 45 deg. C / 32 to 113 deg. F
    Operating humidity: 10-80 % (no condensation)

  • Power supply

    100-240 V AC, 10.4-5.0 A, 50/60 Hz

  • Power consumption

    700 W,
    (499 W with OPERATING MODE set to NORMAL,
    428 W with OPERATING MODE set to ECO,
    287-402 W with OPERATING MODE set to LONG LIFE 1,
    262-402 W with OPERATING MODE set to LONG LIFE 2,
    238-402 W with OPERATING MODE set to LONG LIFE 3,
    69 W with OPERATING MODE set to SHUTTER)
    (0.2 W with STANDBY MODE set to ECO,
    3 W with STANDBY MODE set to NORMAL,
    85 W with QUICK STARTUP set to ON.)

  • Applicable software

    Logo Transfer Software
    Multi Monitoring & Control Software
    Early Warning Software
    Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10 Auto Screen Adjustment Kit)

  • Dimensions (W x H x D)

    498 x 200 x 538mm (19.61 x 7.87 x 21.18")

  • Weight

    Approx. 22.3 kg (49.2 lbs)

  • UPC Code

    00705377213298

1 Accessories for Panasonic PT-RZ660LBU WUXGA Solid Shine 1-Chip DLP Laser Projector, 1920x1200, 6200 Lumens, Lens Not Included, Black

  • All Accessories (1)
  • Stands (1)
Flashpoint Laptop Stand and Accessory Tray
Flashpoint Laptop Stand and Accessory Tray
$69.00
Recommended

About Panasonic PT-RZ660LBU

What sets the PT-RZ660LBU WUXGA Solid Shine 1-Chip DLP Laser Projector apart is its high-quality, powerful, and reliable performance. This innovative projector is designed for intensive usage in various settings such as education, museums, exhibitions, and digital signage applications. With a high lumens rating of 6200, it ensures bright and clear images, even in well-lit environments.

The PT-RZ660LBU projector boasts a native resolution of WUXGA (1920x1200), delivering high-quality images with a high level of detail and clarity. Its next-generation DLP technology and dual laser modules output a brightness of up to 7200 lm (center), ensuring scintillating images with unfailing reliability.

This projector features a quartet color harmonizer that captures a wider color space than comparable laser projectors. This allows for the realistic reproduction of white on the screen, eliminating the distracting greenish tint often seen in conventional projectors.

The PT-RZ660LBU projector is equipped with a dust-resistant optical block and long-lasting laser engine, ensuring consistent, long-lasting image quality for up to 20,000 hours without maintenance. Its dual drive laser optical engine and failsafe redundancy circuit minimize brightness and color uniformity loss if a laser diode fails, making it ideal for mission-critical applications.

With its dynamic light control, this projector delivers a high contrast with low power consumption. It also features a detail clarity processor that optimizes the sharpness of each image, resulting in images expressed with natural and convincing realism.

The PT-RZ660LBU projector offers various operation modes to achieve your preferred balance of brightness performance or extended life. Its geometric adjustment feature adapts the image for projection onto spherical, cylindrical, and other special-shaped screens, making it possible to create highly creative mapping presentations in a variety of event and staging applications.

This projector supports transmission of uncompressed Full HD video and control commands through a single CAT 5e or higher STP cable for distances of up to 150m. This feature simplifies installation in large venues while reducing cost and improving reliability.

In summary, the PT-RZ660LBU WUXGA Solid Shine 1-Chip DLP Laser Projector is a durable, high-performance solution for your projection needs, offering bright, high-resolution images and reliable 24/7 operation.

Panasonic PT-RZ660LBU Features

  • High-quality WUXGA (1920x1200) resolution for detailed and clear images
  • Powerful 6200 Lumens rating for bright display in well-lit environments
  • Innovative quartet color harmonizer for realistic white reproduction and wide color space
  • Reliable and durable with dust-resistant optical block and long-lasting laser engine
  • Dynamic light control for high contrast and low power consumption
  • Geometric adjustment feature for creative mapping presentations on various screen shapes

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience stunning visuals with 6200 Lumens brightness, perfect for large venues.
  • Enjoy long-lasting performance with a 20,000-hour lamp life, reducing maintenance.
  • Achieve crisp, detailed images with WUXGA resolution for impactful presentations.
  • Versatile connectivity options, including HDMI and DIGITAL LINK, simplify setup.
  • Easily correct image distortion with vertical and horizontal keystone correction.
  • Install this portable projector in any orientation with its flexible 360-degree design.

What's in the box:

  • Panasonic PT-RZ660LBU WUXGA Solid Shine 1-Chip DLP Laser Projector
  • Power Cord with Secure Lock
  • Wireless/Wired Remote Control Unit
  • 2x R03/AAA Battery
  • Software CD-ROM (Logo Transfer
  • Multi Monitoring & Control Software)
  • Panasonic Warranty
