Panasonic PT-RZ660WU WUXGA Solid Shine 1-Chip DLP Laser Projector, 1920x1200, 6200 Lumens, White

SKU: PCPTRZ660WU MFR: PT-RZ660WU
Be the first to review this itemAsk a Question
$7,514.99
OR
$627/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience vibrant visuals with 6200 lumens brightness, perfect for well-lit rooms.
  • Enjoy detailed WUXGA resolution (1920x1200) for crisp, clear presentations and images.
  • The Solid Shine laser projector provides up to 24,000 hours of reliable performance.
  • Flexible connectivity options include HDMI, DVI-D, and DIGITAL LINK for easy setup.
  • Achieve optimal image alignment with vertical and horizontal keystone correction.
  • Project onto large screens, from 50 to 600 inches, ideal for various venue sizes.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Panasonic PT-RZ660WU Specifications

  • DLP chip: Panel size

    17.0mm (0.67") diagonal (16:10 aspect ratio)

  • DLP chip: Display method

    DLP chip x 1, DLP projection system

  • DLP chip: Pixels

    2,304,000 (1,920 x 1,200) pixels

  • Lens

    Powered zoom (throw ratio 1.7-2.4:1), powered focus F 1.7-1.9, f 25.6-35.7mm

  • Light source

    Laser diodes laser Class 1 (Class 3R for US models), light source life: 20,000 hours (Normal Mode) / 24,000 hours (Eco Mode)
    At this time the brightness will have decreased to approximately half of its original level

  • Screen size (diagonal)

    1.27-15.24m (50-600")
    1.27-5.08m (50-200") with the ET-DLE055
    2.54-8.89m (100-350") with the ET-DLE030
    16:10 aspect ratio

  • Brightness

    6,200 lm (Center)/6,000 lm

  • Center-to-corner uniformity

    90%

  • Contrast

    10,000:1 (Full on/off, with Dynamic Contrast Mode set to "3" )

  • Resolution

    1,920 x 1,200 pixels

  • Scanning frequency: SDI

    SD-SDI: SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480i(525i), 576i(625i)
    HD-SDI: SMPTE ST 292 compliant, [YPBPR 4:2:2 10-bit] 720(750)/60p, 720(750)/50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p
    3G-SDI: SMPTE ST 424 compliant, [RGB 4:4:4 12-bit/10-bit] 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, [YPBPR 4:2:2 10-bit] 1080(1125)/60p, 1080(1125)/50p

  • Scanning freq.: HDMI/DVI-D/DIGITAL LINK

    480i (525i), 576i (625i), 480p (525p), 576p (625p), 720 (750)/60p, 720 (750)/50p, 1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/25p, 1080 (1125)/24p, 1080 (1125)/24sF, 1080 (1125)/30p, 1080 (1125)/60p, 1080 (1125)/50p, VGA (640 x 480) WUXGA (1920 x 1200) (compatible with non-interlaced signals only)
    Dot clock: 25 162 MHz

  • Scanning frequency: RGB

    fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 20-162 MHz

  • Scanning frequency: YPBPR (YCBCR)

    fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
    fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
    fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
    fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
    fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
    fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
    fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
    fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]

  • Scanning frequency: YPBPR (YCBCR)(cont.)

    fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
    fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
    fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
    fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
    fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
    fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
    fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]

  • Scanning frequency: Video/YC

    fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
    fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]

  • Optical axis shift: Vertical

    +50 %, -16 % (powered)

  • Optical axis shift: Horizontal

    +30 %, -10 % (+28 %, -10 % with ET-DLE085) (powered)

  • Keystone correction range

    Vertical: +/-40 deg. (+/-22 deg. with ET-DLE085/DLE055, +5 deg. with ET-DLE030)
    Horizontal: +/-15 deg. (cannot be operated with ET-DLE030)

    With Optional upgrade kit ET-UK20:
    Vertical: +/-45 deg. (+/-40 deg. with the ET-DLE150/ET-DLE250/ supplied lens, +/-22 deg. with the ET-DLE085/ET-DLE055)
    Horizontal: +/-40 deg. (+/-15 deg. with ET-DLE085/ET-DLE055)
    Up to a total of +/-55 deg. during simultaneous horizontal and vertical correction.

  • Installation

    Ceiling/floor, front /rear, free 360-degree installation

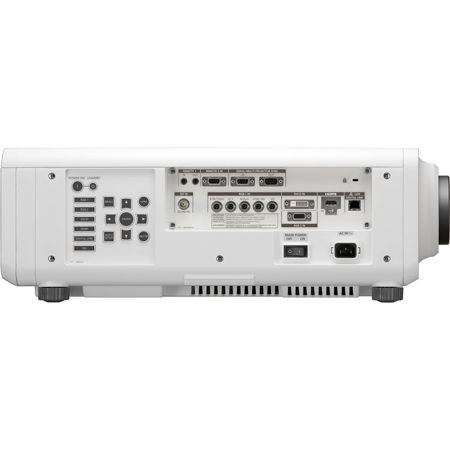

  • Terminals

    SDI IN: 1x BNC (3G/HD/SD-SDI)
    HDMI IN: 1x HDMI 19-pin (Deep Color, compatible with HDCP)
    DVI-D IN: 1x DVI-D 24-pin (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
    RGB 1 IN: 5x BNC (1x RGB/YPBPR/YCBCR/YC/Video)
    RGB 2 IN: 1x D-Sub HD 15-pin (female) (1x RGB/YPBPR/YCBCR)

  • Terminals (cont.)

    SERIAL/ MULTI PROJECTOR SYNC IN: 1x D-sub 9-pin (female) for external control (RS-232C compliant)
    SERIAL/ MULTI PROJECTOR SYNC OUT: 1x D-sub 9-pin (male) for link control
    REMOTE 1 IN: M3 x 1 for wired remote control
    REMOTE 1 OUT: M3 x 1 for link control (for wired remote control)
    REMOTE 2 IN: 1x D-sub 9-pin (female) for external control (parallel)
    LAN/DIGITAL LINK: 1x RJ-45 (for network, DIGITAL LINK connection, 100Base-TX, compatible with Art-Net, PJLink)

  • Cabinet materials

    Molded plastic

  • Noise level

    35 dB

  • Operating environment

    Operating temperature: 0 to 45 deg. C / 32 to 113 deg. F
    Operating humidity: 10-80 % (no condensation)

  • Power supply

    100-240 V AC, 10.4-5.0 A, 50/60 Hz

  • Power consumption

    700 W,
    (499 W with OPERATING MODE set to NORMAL,
    428 W with OPERATING MODE set to ECO,
    287-402 W with OPERATING MODE set to LONG LIFE 1,
    262-402 W with OPERATING MODE set to LONG LIFE 2,
    238-402 W with OPERATING MODE set to LONG LIFE 3,
    69 W with OPERATING MODE set to SHUTTER)
    (0.2 W with STANDBY MODE set to ECO,
    3 W with STANDBY MODE set to NORMAL,
    85 W with QUICK STARTUP set to ON.)

  • Applicable software

    Logo Transfer Software
    Multi Monitoring & Control Software
    Early Warning Software
    Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10 Auto Screen Adjustment Kit)

  • Dimensions (W x H x D)

    498 x 200 x 581mm (19.61 x 7.87 x 22.87")

  • Weight

    Approx. 23.1 kg (50.9 lbs)

1 Accessories for Panasonic PT-RZ660WU WUXGA Solid Shine 1-Chip DLP Laser Projector, 1920x1200, 6200 Lumens, White

  • All Accessories (1)
  • Stands (1)
Flashpoint Laptop Stand and Accessory Tray
Flashpoint Laptop Stand and Accessory Tray
$69.00
Recommended

About Panasonic PT-RZ660WU

Discover the PT-RZ660WU WUXGA Solid Shine 1-Chip DLP Laser Projector, a cutting-edge solution designed for high-intensity usage in education, museums, exhibitions, and digital signage applications. This projector offers high brightness and superior image quality, thanks to its laser light source.

Engineered with a dust-resistant optical block and a long-lasting laser engine, this projector offers up to 20,000 hours of maintenance-free operation. It also features a 360-degree installation capability and a Geometric Manager Pro function, ensuring versatility in various settings.

Experience the next generation of DLP technology with the RZ660 series, which delivers high-resolution detail. The dual laser modules output a brightness of up to 7,200 lm (center), ensuring vibrant and clear images. The PT-RZ660WU's Quartet Color Harmonizer reduces energy loss from the light source, while its robust and heat-resistant phosphor wheel produces scintillating images with unfailing reliability.

The Quartet Color Harmonizer wheel mechanism captures a wider color space than comparable laser projectors, allowing for realistic white reproduction on screen. This eliminates the greenish tint often seen with conventional projectors, resulting in natural and realistic picture quality.

With the PT-RZ660WU, image quality is maintained for longer use. The dual solid-state laser modules eliminate the need for lamp replacement, and the image colors and brightness degrade very gradually in a consistent, linear fashion.

This projector is designed for dependable 24/7 operation with failover protection. The dual drive laser optical engine groups the laser diodes into two discrete modules, and a failsafe redundancy circuit minimizes brightness and color uniformity loss if a laser diode fails.

The PT-RZ660WU also features dynamic light control for better contrast, delivering a high contrast ratio even when bright and dark scenes frequently interchange. Panasonic's premium system daylight view 3 enhances brightness perception in multi-projector mapping applications by adjusting sharpness, gamma curves, and correcting colors, resulting in greater visual impact even in challenging conditions.

The PT-RZ660WU also boasts a dust-resistant airtight optical block, ensuring consistent, long-lasting image quality for up to 20,000 hours without maintenance. This projector also offers various modes to maintain image quality for longer, including Normal Mode, Eco Mode, and Long Life Mode.

The PT-RZ660WU is among the world's first to feature contrast and shutter sync functions for multi-screen and mapping applications. It also includes a Geometric Adjustment feature for special projection surfaces, and a single-cable Digital Link control and video connection for simplified installation in large venues.

Experience the future of projection technology with the PT-RZ660WU WUXGA Solid Shine 1-Chip DLP Laser Projector.

Panasonic PT-RZ660WU Features

  • High-intensity DLP laser projector ideal for education, museums, exhibitions, and digital signage applications
  • Features a dust-resistant optical block and long-lasting laser engine for up to 20,000 hours of maintenance-free operation
  • Next-generation DLP technology with dual laser modules for high-resolution detail and brightness up to 7,200 lm (center)
  • Quartet Color Harmonizer for wider color space capture and realistic white reproduction on screen
  • Dependable 24/7 operation with failover protection and dynamic light control for better contrast
  • Includes Geometric Adjustment feature for special projection surfaces and single-cable Digital Link control for simplified installation

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience vibrant visuals with 6200 lumens brightness, perfect for well-lit rooms.
  • Enjoy detailed WUXGA resolution (1920x1200) for crisp, clear presentations and images.
  • The Solid Shine laser projector provides up to 24,000 hours of reliable performance.
  • Flexible connectivity options include HDMI, DVI-D, and DIGITAL LINK for easy setup.
  • Achieve optimal image alignment with vertical and horizontal keystone correction.
  • Project onto large screens, from 50 to 600 inches, ideal for various venue sizes.

What's in the box:

  • Panasonic PT-RZ660WU WUXGA Solid Shine 1-Chip DLP Laser Projector
  • Power Cord with Secure Lock
  • Wireless/Wired Remote Control Unit
  • 2x R03/AAA Battery
  • Software CD-ROM (Logo Transfer
  • Multi Monitoring & Control Software)
  • Panasonic Warranty
