Panasonic PT-RZ670BU Specifications

  • Projection Method

    Front
    Rear
    Ceiling

  • Minimum Diagonal Image Size

    50" / 1270mm

  • Maximum Diagonal Image Size

    50' / 15.24m

  • Zoom Type

    Manual Zoom

  • Optical Zoom

    1.4x

  • Minimum Lens Aperture

    F/1.7

  • Maximum Lens Aperture

    F/1.9

  • Number of Lamps

    1

  • Lamp Type

    Laser

  • Standard Mode Brightness

    6500 lm

  • Native Resolution

    1920 x 1200

  • Graphic Mode

    WUXGA

  • Native Aspect Ratio

    16:10

  • Contrast Ratio

    10,000:1

  • Throw Ratio

    1.7 to 2.4:1

  • Uniformity

    90%

  • Vertical Keystone Correction

    -40 Degree /+40 Degree

  • Horizontal Keystone Correction

    -15 Degree /+15 Degree

  • Maximum Vertical Sync

    120 Hz

  • Maximum Horizontal Sync

    100 kHz

  • Video Signal Format

    NTSC
    PAL
    SECAM

  • Video Signal Standard

    HDTV

  • Input Scan Format

    1125p

  • Output Scan Format

    1125p

  • Ethernet Technology

    Fast Ethernet

  • Number of HDMI Ports

    1

  • HDMI

    Yes

  • DVI

    Yes

  • Component Video

    Yes

  • Network (RJ-45)

    Yes

  • Input Voltage

    120 V AC
    230 V AC

  • Operating Power Consumption

    720 W

  • Standby Power Consumption

    400 mW

  • Form Factor

    Ceiling Mountable
    Floor Mountable

  • Dimensions (H x W x D)

    7.9 x 19.6 x 22.9" / 200.66 x 497.84 x 581.66mm

  • Weight

    50.70lbs / 23.00kg (Approx)

8 Accessories for Panasonic PT-RZ670BU 6500 Lumens WUXGA 1-Chip DLP Projector with Lens, 16:10 Aspect Ratio, 1125p Input Scan Format, Black

  • All Accessories (8)
  • Lenses (3)
  • Laptop Stand (1)
  • Adapters & Mounts (3)
  • Screens (1)

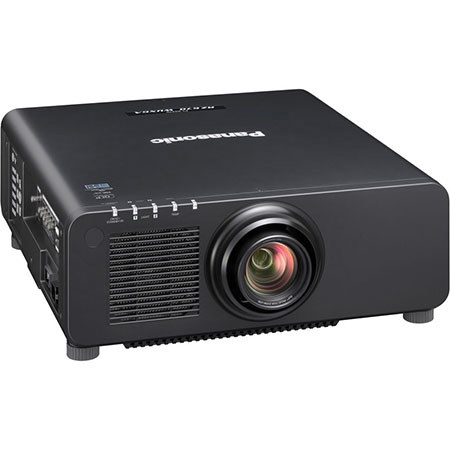

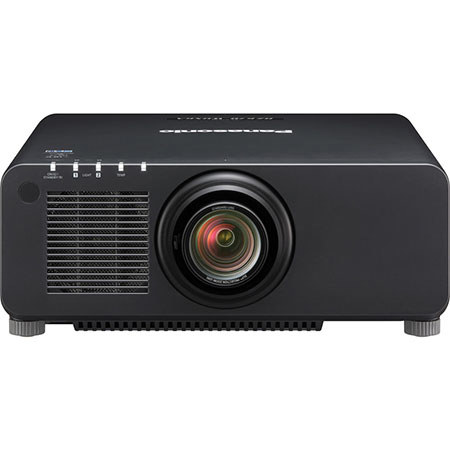

About Panasonic PT-RZ670BU

The Panasonic PT-RZ670 Series projectors are the next generation in projection technology. These lamp-free WUXGA and WXGA 1-Chip DLP projectors utilize a laser light source and filter-less design for 20, 000 hours or more of 24/7/365 continuous and maintenance-free operation. With no lamp to replace, these projectors maintain a much more stable light output over a much longer period of time. Projectors with lamps to replace will go through more frequent cycles of brightness and dimming while the laser technology will remain steady and brilliant during the same period. The laser engine is designed such that if anything were to go wrong with a single laser module, the Panasonic projector would not only remain running but continue operation at up to 93% brightness.

The laser light engine combines unique technology to produce spectacular image quality in not only the primary red/green/blue colors but also in the yellow/magenta/cyan secondary colors delivering an incredible 10, 000:1 contrast ratio with near pure white which some competitors struggle to achieve. Panasonic technology appears 20-30% brighter than a traditional lamp-based projector with the PT-RZ670 Series measuring in at 6, 500 ANSI Lumens comparing quite well in overall brightness to 8, 500 ANSI lumen lamp based 1-Chip DLPs. The improvement lies in the overall color brightness as the full power of the projector is used to make color without giving up some of the power to produce white for brightness. These projectors also feature an array of professional features for applications where features such as edge blending, pixel mapping, horizontal / vertical / 360 Degree rotational mounting and geometry control are required. The new laser light source combined with an onboard sensor enables for much more precise color and brightness control when blending 2 or more projectors over longer periods of time.

The PT-RZ670 Series also works with all the current 1-Chip DLP lenses available from Panasonic including the ultra short-throw ET-DLE030 lens. These projectors also come with 3 standard digital inputs including HDMI, DVI and Digital link. Digital link is based on the HD Base T spec for delivering 1080p audio and video content over 328' of Cat6e cable while Panasonic adds its control protocol for complete integration with many of the top control and networking products in the industry. These models have VGA and RGB video inputs, as well as a standard 3G HD-SDI input in the PT-RZ670BU WUXGA model. So regardless of the application, be it a current Higher Education or Corporate customer looking to upgrade its campus to a more maintenance-free projector, a retail or sports bar chain looking for digital signage and digital entertainment with extremely long life, a museum that may need color accuracy and flexibility of installation, or even a rental house that is looking to get longer life with less maintenance out of its rental pool of projectors, the new PT-RZ670 Series is the right solution for today's maintenance-free demands.

Long Lasting Reliability and High Picture Quality

• The world's first1 6,500 lm brightness laser light source 1-Chip DLP projector
• Bright, beautiful picture quality:
• Dynamic light control for high 10, 000:1 contrast ratio
• Detail Clarity Processor gives natural clarity to even the finest details
• System Daylight View enhances color perception with no need to turn off the lights
• Advanced technologies for excellent image quality including full 10-bit signal processing
• Reliable drive system enables continuous 24/7 operation, with no downtime

Expanding Installation Flexibility

• Multi-Screen Support System seamlessly connects multiple screens
• Edge blending, Color matching and Multi-screen processor
• Multi-Unit Brightness Control function
• Lens-centered design
• Geometric Adjustment for specially shaped screens (PT-RZ670BU model)
• Optional Upgrade Kit ET-UK20 featuring Geometry Manager Pro for more flexible geometric adjustment and modified masking functions (PT-RZ670BU model)

Professional System Integration

• The Digital Link Single Cable Solution allows transmission of digital signals (HDMI, uncompressed HD video and control signals) up to 328 ft. with a single CAT5e cable or higher
• The optional ET-YFB100G Digital Interface Box makes setup easy for ceiling-mounted and other permanent installations
• Art-Net compatibility simplifies system integration
• Abundant terminals, including SDI (3G/HD/SD), DVI-D and HDMI inputs
• Multi Projector Monitoring and Control Software allow multiple projectors to be managed together over a wired LAN
• Web Browser Control
• Optional Early Warning Software ET-SWA100 Series compatible

What's in the box:

  • Panasonic PT-RZ670BU 6500 Lumens WUXGA 1-Chip DLP Projector with Lens
  • Power Cord with Secure Lock
  • Wireless/wired Remote Control Unit
  • 2x Batteries (R03/AAA Type)
  • Software CD-ROM (Logo Transfer Software & Multi Projector Monitoring & Control Software)
  • Panasonic Warranty
