What is the native resolution of the PT-RZ770WU WUXGA Solid Shine 1-Chip DLP Laser Projector?

The native resolution of the PT-RZ770WU WUXGA Solid Shine 1-Chip DLP Laser Projector is WUXGA (1920x1200), allowing it to display high-definition images with remarkable clarity.

How bright is the PT-RZ770WU WUXGA Solid Shine 1-Chip DLP Laser Projector?

The PT-RZ770WU WUXGA Solid Shine 1-Chip DLP Laser Projector has a high lumens rating of 7200, ensuring bright and clear images even in well-lit environments.

What is the maintenance period of the PT-RZ770WU WUXGA Solid Shine 1-Chip DLP Laser Projector?

The PT-RZ770WU WUXGA Solid Shine 1-Chip DLP Laser Projector offers a maintenance-free operation for up to 20,000 hours, thanks to its dust-resistant optical block and long-lasting laser engine.

What is the Quartet Color Harmonizer in the PT-RZ770WU WUXGA Solid Shine 1-Chip DLP Laser Projector?

The Quartet Color Harmonizer in the PT-RZ770WU WUXGA Solid Shine 1-Chip DLP Laser Projector captures a wider color space than comparable laser projectors, allowing for realistic reproduction of whites on the screen and eliminating the greenish tint often seen in images projected by conventional projectors.

Is the PT-RZ770WU WUXGA Solid Shine 1-Chip DLP Laser Projector suitable for 24/7 operation?

Yes, the PT-RZ770WU WUXGA Solid Shine 1-Chip DLP Laser Projector is built for dependable 24/7 operation with failover protection. Its dual drive laser optical engine groups the laser diodes into two discrete modules, ensuring minimal brightness and color uniformity loss if a laser diode fails.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Panasonic PT-RZ770WU Specifications

  • DLP chip: Panel size

    17.0mm (0.67") diagonal (16:10 aspect ratio)

  • DLP chip: Display method

    DLP chip x 1, DLP projection system

  • DLP chip: Pixels

    2,304,000 (1,920 x 1,200) pixels

  • Lens

    Powered zoom (throw ratio 1.7-2.4:1), powered focus F 1.7-1.9, f 25.6-35.7mm

  • Light source

    Laser diodes laser Class 1 (Class 3R for US models), light source life: 20,000 hours (Normal Mode) / 24,000 hours (Eco Mode)
    At this time the brightness will have decreased to approximately half of its original level

  • Screen size (diagonal)

    1.27-15.24m (50-600")
    1.27-5.08m (50-200") with the ET-DLE055
    2.54-8.89m (100-350") with the ET-DLE030
    16:10 aspect ratio

  • Brightness

    7,200 lm (Center)/7,000 lm

  • Center-to-corner uniformity

    90%

  • Contrast

    10,000:1 (Full on/off, with Dynamic Contrast Mode set to "3" )

  • Resolution

    1,920 x 1,200 pixels

  • Scanning frequency: SDI

    SD-SDI: SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480i(525i), 576i(625i)
    HD-SDI: SMPTE ST 292 compliant, [YPBPR 4:2:2 10-bit] 720(750)/60p, 720(750)/50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p
    3G-SDI: SMPTE ST 424 compliant, [RGB 4:4:4 12-bit/10-bit] 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, [YPBPR 4:2:2 10-bit] 1080(1125)/60p, 1080(1125)/50p

  • Scanning freq.: HDMI/DVI-D/DIGITAL LINK

    480i (525i), 576i (625i), 480p (525p), 576p (625p), 720 (750)/60p, 720 (750)/50p, 1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/25p, 1080 (1125)/24p, 1080 (1125)/24sF, 1080 (1125)/30p, 1080 (1125)/60p, 1080 (1125)/50p, VGA (640 x 480) WUXGA (1920 x 1200) (compatible with non-interlaced signals only)
    Dot clock: 25 162 MHz

  • Scanning frequency: RGB

    fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 20-162 MHz

  • Scanning frequency: YPBPR (YCBCR)

    fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
    fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
    fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
    fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
    fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
    fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
    fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
    fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]

  • Scanning frequency: YPBPR (YCBCR)(cont.)

    fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
    fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
    fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
    fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
    fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
    fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
    fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]

  • Scanning frequency: Video/YC

    fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
    fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]

  • Optical axis shift: Vertical

    +50 %, -16 % (powered)

  • Optical axis shift: Horizontal

    +30 %, -10 % (+28 %, -10 % with ET-DLE085) (powered)

  • Keystone correction range

    Vertical: +/-40 deg. (+/-22 deg. with ET-DLE085/DLE055, +5 deg. with ET-DLE030)
    Horizontal: +/-15 deg. (cannot be operated with ET-DLE030)

    With Optional upgrade kit ET-UK20:
    Vertical: +/-45 deg. (+/-40 deg. with the ET-DLE150/ET-DLE250/ supplied lens, +/-22 deg. with the ET-DLE085/ET-DLE055)
    Horizontal: +/-40 deg. (+/-15 deg. with ET-DLE085/ET-DLE055)
    Up to a total of +/-55 deg. during simultaneous horizontal and vertical correction.

  • Installation

    Ceiling/floor, front /rear, free 360-degree installation

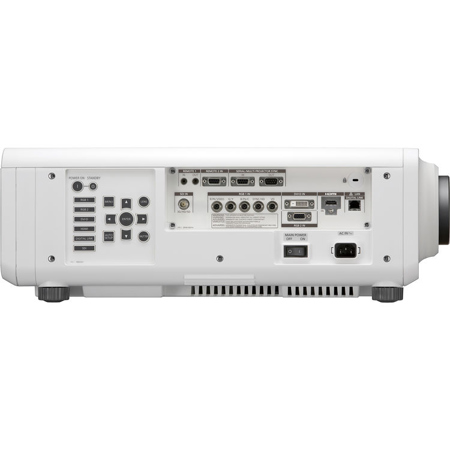

  • Terminals

    SDI IN: 1x BNC (3G/HD/SD-SDI)
    HDMI IN: 1x HDMI 19-pin (Deep Color, compatible with HDCP)
    DVI-D IN: 1x DVI-D 24-pin (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
    RGB 1 IN: 5x BNC (1x RGB/YPBPR/YCBCR/YC/Video)
    RGB 2 IN: 1x D-Sub HD 15-pin (female) (1x RGB/YPBPR/YCBCR)

  • Terminals (cont.)

    SERIAL/ MULTI PROJECTOR SYNC IN: 1x D-sub 9-pin (female) for external control (RS-232C compliant)
    SERIAL/ MULTI PROJECTOR SYNC OUT: 1x D-sub 9-pin (male) for link control
    REMOTE 1 IN: M3 x 1 for wired remote control
    REMOTE 1 OUT: M3 x 1 for link control (for wired remote control)
    REMOTE 2 IN: 1x D-sub 9-pin (female) for external control (parallel)
    LAN/DIGITAL LINK: 1x RJ-45 (for network, DIGITAL LINK connection, 100Base-TX, compatible with Art-Net, PJLink)

  • Cabinet materials

    Molded plastic

  • Noise level

    37 dB

  • Operating environment

    Operating temperature: 0 to 45 deg. C / 32 to 113 deg. F
    Operating humidity: 10-80 % (no condensation)

  • Power supply

    100-240 V AC, 10.4-5.0 A, 50/60 Hz

  • Power consumption

    825 W
    (593 W with OPERATING MODE set to NORMAL,
    508 W with OPERATING MODE set to ECO,
    333-477 W with OPERATING MODE set to LONG LIFE 1,
    310-477 W with OPERATING MODE set to LONG LIFE 2,
    286-477 W with OPERATING MODE set to LONG LIFE 3,
    72 W with OPERATING MODE set to SHUTTER)
    (0.2 W with STANDBY MODE set to ECO,
    3 W with STANDBY MODE set to NORMAL,
    85 W with QUICK STARTUP set to ON.)

  • Applicable software

    Logo Transfer Software
    Multi Monitoring & Control Software
    Early Warning Software
    Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10 Auto Screen Adjustment Kit)

  • Dimensions (W x H x D)

    498 x 200 x 538mm (19.61 x 7.87 x 21.18")

  • Weight

    Approx. 23.2kg (51.15lbs)

  • UPC Code

    00641753213547

2 Accessories for Panasonic PT-RZ770WU WUXGA Solid Shine 1-Chip DLP Laser Projector, 1920x1200, 7200 Lumens, White

  • All Accessories (2)
  • Stands (1)
  • Brackets & Mounts (1)

About Panasonic PT-RZ770WU

It's time to elevate your visual presentations with the PT-RZ770WU WUXGA Solid Shine 1-Chip DLP Laser Projector. This high-quality projector is designed for intensive usage in various settings such as education, museums, exhibitions, and digital signage applications. It boasts a powerful laser light source that ensures high brightness and excellent image quality, making it ideal for displaying detailed and vibrant visuals.

The PT-RZ770WU projector is equipped with a native resolution of WUXGA (1920x1200), allowing it to display high-definition images with remarkable clarity. Its high lumens rating of 7200 ensures bright and clear images, even in well-lit environments. This makes it a reliable choice for presentations and other visual displays.

One of the standout features of this projector is its maintenance-free operation for up to 20,000 hours. This is made possible by its dust-resistant optical block and long-lasting laser engine. The projector also offers a free 360-degree installation and Geometric Manager Pro function, providing flexibility in setup and use.

The PT-RZ770WU projector utilizes the next generation of DLP technology, delivering high resolution in detail. Its dual laser modules output a brightness of up to 7200 lm (center), ensuring that your images are always bright and clear. The quartet color harmonizer reduces energy loss from the light source and produces scintillating images with unfailing reliability.

This projector also offers outstanding white balance and color reproduction. The quartet color harmonizer wheel mechanism captures a wider color space than comparable laser projectors, allowing for realistic reproduction of whites on the screen. This eliminates the greenish tint often seen in images projected by conventional projectors.

The PT-RZ770WU projector is built for dependable 24/7 operation with failover protection. Its dual drive laser optical engine groups the laser diodes into two discrete modules, ensuring minimal brightness and color uniformity loss if a laser diode fails. This, combined with the 20,000-hour maintenance-free projection period, makes the PT-RZ770WU projector ideal for mission-critical applications.

The projector's dynamic light control delivers better contrast, modulating laser power output to achieve a high contrast with low power consumption. It also features Panasonic's premium system daylight view 3, which prevents images from washing out in well-lit environments and enhances brightness perception in multi-projector mapping applications.

The PT-RZ770WU projector is more than just a powerful visual tool. It's a durable, reliable, and high-quality solution for all your projection needs. Whether you're presenting in a classroom, a museum, an exhibition, or a digital signage application, this projector is designed to deliver superior performance every time.

Panasonic PT-RZ770WU Features

  • WUXGA (1920x1200) resolution for high-definition, detailed visuals
  • Bright 7200 lumens output for clear images in well-lit environments
  • Maintenance-free up to 20,000 hours with dust-resistant optical block
  • 360-degree installation flexibility with Geometric Manager Pro function
  • Quartet Color Harmonizer for realistic white balance and vibrant color reproduction
  • Dual laser modules with failover protection for reliable 24/7 operation

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience vibrant visuals with 7200 Lumens brightness, perfect for large venues.
  • Enjoy a sharp, detailed picture with WUXGA resolution (1920x1200) for crisp images.
  • Benefit from a long-lasting lamp life of up to 24,000 hours in Eco Mode, saving costs.
  • Connect easily with HDMI, DVI-D, and DIGITAL LINK for versatile connectivity options.
  • Project from any angle with 360-degree installation, offering flexible placement.
  • Achieve superior image quality with a 10,000:1 contrast ratio for deep blacks.

What's in the box:

  • Panasonic PT-RZ770WU WUXGA Solid Shine 1-Chip DLP Laser Projector
  • Power Cord with Secure Lock
  • Wireless/Wired Remote Control Unit
  • 2x R03/AAA Battery
  • Software CD-ROM (Logo Transfer
  • Multi Monitoring & Control Software)
  • Panasonic Warranty
