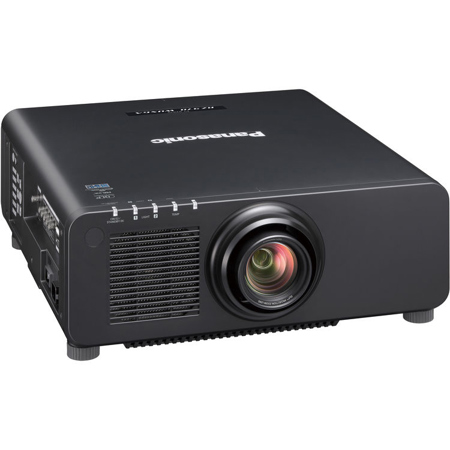

Panasonic PT-RZ970U WUXGA Solid Shine 1-Chip DLP Fixed Installation Laser Projector with 1.7 to 2.4:1 Lens, 10000 Lumens, Black

For High-Impact Images in Any Space, We Have the Answer
Applications for our 8500-10000-lumen RZ970 Series laser projector lineup extend from education, exhibition, and signage through to events and staging. With a shared design philosophy, these compact 1-Chip DLP projectors deliver picture quality approaching that of our 3-Chip DLP models while retaining flexibility for a stress-free installation. The series not only leads the field in outright image quality; it also provides the stable, consistent, low-maintenance performance that professional users demand.

SOLID SHINE Laser Technology

Reproducing Full-Spectrum Color with 1-Chip DLP SOLID SHINE Laser
With next-generation DLP technology delivering high-resolution detail, dual laser modules for high brightness, Quartet Color Harmonizer to reduce energy loss from the light source, and robust heat-resistant phosphor wheel, Panasonic's 1-Chip DLP SOLID SHINE Laser system produces scintillating images with unfailing reliability.

Superior White Balance and Color Reproduction
Quartet Color Harmonizer wheel mechanism captures a wider color space than comparable projectors, allowing white to be reproduced more realistically on screen. Conventional projectors can't achieve an accurate white balance, so images can appear with a distracting greenish cast. Not the case with the Panasonic 1-Chip DLP SOLID SHINE Laser projectors.

SOLID SHINE Laser Maintains Picture Quality for Longer
Thanks to two long-lasting solid-state laser modules, there are no lamps to replace, and image color/brightness degrades very gradually in consistent, linear fashion. As well as reducing maintenance hassle, out-of-the-box picture quality is preserved for longer.

Dual-Laser Optical Engine Assures Failsafe Reliability
Dual-Drive Laser Optical Engine groups laser diodes into two discrete modules. A redundancy circuit works to minimize brightness- and color-uniformity loss should a laser diode fail, making supported products ideal for applications where picture presentation must be maintained.

Lasting Picture Quality

Dustproof Optics Extend Longevity
Hermetically sealed laser modules and a refined air-intake system work to extend life and maintain picture quality in dusty locations. SOLID SHINE Laser products are tested against more severe guidelines than other projectors for stable operation in dusty environments containing 0.150 mg of particulate matter per cubic meter.

Note: Dustproof tests are conducted to confirm operational effectiveness under conditions with 0.15 mg/m3 of particulate matter (based on tests by the American Society of Heating, Refrigerating, and Air-Conditioning Engineers [ASHRAE], and the Japanese Building Maintenance Association). Measurements are made using acceleration tests.

Selectable Operational Modes
Select your preferred operational mode to balance control brightness decline with brightness output according to the specific requirements of individual applications.

Dynamic Light Control for High Contrast
Dynamic Light Control directly modulates laser output to achieve high contrast with less power consumption. Digitally controlled frame-by-frame scene-linking modulation ensures highly precise adjustment of light output, while accurate contrast is delivered even when bright and dark scenes frequently interchange.

Detail Clarity Processor 3
This unique Panasonic circuitry optimizes the sharpness of each image based on information gathered from four frequency bands of the video signal. The resulting images are expressed with natural, convincing realism.

System Daylight View 3
Panasonic's premium System Daylight View 3 stops pictures washing out in bright light and enhances impact in mapping and multi-projector applications. It uses sensor information to adjust sharpness, manipulate gamma curves, and correct colors to suit on-site conditions.

Easy System Flexibility

Free 360-degree Installation
SOLID SHINE Laser technology enables free 360-degree installation through any axis. Together with powered lens shift and a wide range of optional lenses, the projector can be mounted in any way desired without picture distortion temporarily or in permanent applications.

Contrast Sync and Shutter Sync Function
Contrast Sync function, designed for multi-screen applications, allows dynamic contrast control to be synchronized for consistent picture quality across screens. Shutter Sync, meanwhile, synchronizes shutter on/off timing.

Note: Includes fade-in and fade-out effects. Projector shutter functions can be set to operate individually if desired.

Single-Cable DIGITAL LINK Connection
DIGITAL LINK transmits uncompressed video, audio, and control commands through a single CAT 5e or higher STP cable for distances of up to 150 m (492 ft). Optional DIGITAL LINK Switcher or Digital Interface Box further simplifies installation, reduces cabling and associated costs, and enhances reliability.

Backup Input Setting Assures Picture Display
Projectors switch instantaneously to a backup input signal should the primary input signal be disrupted, assuring image display is maintained at all times in venues such as control rooms and adding insurance at events where projection must not be interrupted.

Note: Combination of primary/secondary input terminals is fixed. Switching to secondary input (or primary input) occurs automatically when the input signal for primary input (or secondary input) is disrupted. The Backup Input Setting is enabled only when the input signal to primary and secondary terminals is the same.

Geometry Manager Pro Software and Upgrade Kits
Download free Geometry Manager Pro software to expand geometric and multi-screen setup and calibration capabilities via PC. The suite includes two upgrade kits that can be optionally unlocked with paid key codes. ET-UK20 adds uniformity correction and extensive creative masking capabilities. ET-CUK10 features Auto Screen Adjustment which enables simultaneous setup (including curved-screen correction) of multiple projectors for multi-screen applications using a compatible camera. This streamlines edge-blending, color-matching, black-level, stacking, and brightness uniformity calibration.

Early Warning Software ET-SWA100 Series (Optional)
Early Warning Software monitors the status of projectors and displays connected to an intranet, and informs the operator when an abnormality is detected or predicted, or when there are symptoms of trouble. This minimizes downtime to provide more stable operation.

Common Lenses for Panasonic 1-Chip DLP Projectors
Panasonic 1-Chip DLP projectors share a family of optional lenses, including ultra-short-throw lens and zoom lens for long throw distances, reducing cost of ownership for staging and event companies with large projector inventories.
