Panasonic PT-TW250 WXGA Short Throw 3LCD Widescreen Multimedia Projector with Fixed Lens, 1280x800, 2800 Lumens

SKU: PCPTTW250U

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Panasonic PT-TW250 Specifications

  • Power supply

    100-240 V AC, 50/60Hz

  • Power consumption

    300W (0.5W when STANDBY MODE set to ECO, 6.0W when STANDBY MODE set to NORMAL.)

  • Panel size

    0.59" / 14.99mm (16:10 aspect ratio)

  • Display method

    Transparent LCD panel (x 3, R/G/B)

  • Drive method

    Active matrix method

  • Pixels

    1,024,000 (1,280 x 800) pixels

  • Lens

    Fixed (0.46:1 throw ratio), manual focus F = 1.8, f = 6.08 mm

  • Lamp

    1x 230W, lamp replacement cycle (lamp control: Normal/Eco1/Eco2): 5,000 hours/6,000 hours/8,000 hours

  • Screen size (diagonal)

    50 - 100" / 1270.00 - 2540.01mm, 16:10 aspect ratio

  • Brightness (Lamp power: Normal)

    2,800 lm

  • Center-to-corner uniformity

    90%

  • Contrast

    10,000:1 (full on/off) (RGB signal input, Color mode: Dynamic, Lamp power: Normal)

  • Resolution

    1,280 x 800 pixels (Input signals that exceed this resolution will be converted to 1,280 x 800 pixels.)

  • HDMI

    fH: 15-91 kHz, fV: 24-85 Hz, dot clock: 162 MHz or lower

  • RGB (analog)

    fH: 15-91 kHz, fV: 24-85 Hz, dot clock: 162 MHz or lower

  • YPB PR(YCB CR)

    fH: 15.73kHz, fV: 59.94Hz [480i (525i)]
    fH: 15.63kHz, fV: 50Hz [576i (625i)]
    fH: 45.00kHz, fV: 60Hz [720 (750)/60p]
    fH: 33.75kHz, fV: 60Hz [1080 (1125)/60i]
    fH: 28.13kHz, fV: 25Hz [1080 (1125)/25p]
    fH: 27.00kHz, fV: 48Hz [1080 (1125)/24sF]
    fH: 67.50kHz, fV: 60Hz [1080 (1125)/60p]
    fH: 31.47kHz, fV: 59.94Hz [480p (525p)]
    fH: 31.25kHz, fV: 50Hz [576p (625p)]
    fH: 37.50kHz, fV: 50Hz [720 (750)/50p]

  • YPB PR(YCB CR) 1


    fH: 28.13kHz, fV: 50Hz [1080 (1125)/50i]
    fH: 27.00kHz, fV: 24Hz [1080 (1125)/24p]
    fH: 33.75kHz, fV: 30Hz [1080 (1125)/30p]
    fH: 56.25kHz, fV: 50Hz [1080 (1125)/50p]

  • Video/S-Video

    fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
    fH: 15.63 kHz, fV: 50 Hz [PAL/SECAM/PAL-N]

  • Optical axis shift

    7.2:-1 (fixed)

  • Keystone correction range

    Vertical +/-50 deg. (Auto, Manual), horizontal +/-15 deg. (Manual)

  • Installation

    Ceiling/floor, front/rear

  • Built-in speaker

    1x 10W (monaural)

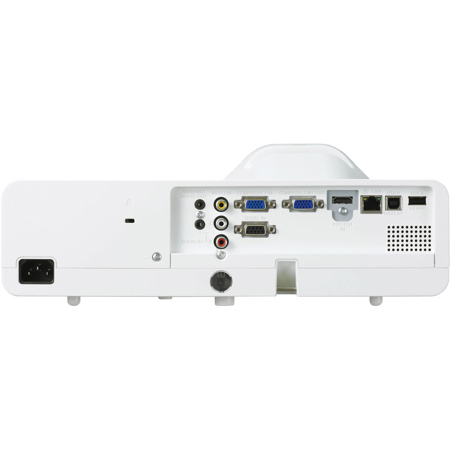

  • HDMI In

    1x HDMI 19-pin (compatible with HDCP, Deep Color)
    480i, 480p, 576i, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/30p, 1080/25p, 1080/24p, 1080/24sF, VGA (640 x 480)-WUXGA (1,920 x 1,200)
    Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)

  • Computer 1 In

    1x D-sub HD 15-pin (female) (RGB/YPBPR/YCBCR /S-VIDEO x 1)
    (The D-Sub/S-VIDEO conversion cable ET-ADSV is required for inputting S-VIDEO signals.)

  • Computer 2 In/Monitor Out

    1x D-sub HD 15-pin (female) (RGB x 1), (input/output selectable using on-screen menu)

  • Video In

    1x Pin jack

  • Audio 1 In

    1x M3 (1x L-R)

  • Audio 2 In

    2x Pin jack (1x L, R)

  • Audio Out

    1x M3 (L-R x 1) for output (variable)

  • LAN

    1x RJ-45 (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink (class 1))

  • Serial In

    1x D-sub 9-pin (female) for external control (RS-232C compliant)

  • USB A

    1x USB type-A (for the Memory Viewer)

  • USB B

    1x USB type-B (for the USB Display)

  • Operation noise

    37 dB (Lamp power: Normal), 33 dB (Lamp power: Eco1), 28 dB (Lamp power: Eco2)

  • Cabinet materials

    Molded plastic (PC)

  • Operating Temperature

    5 to -40 deg. C / 41 to -40 deg. F (less than 1,400 m [4,593'] above sea level)
    5 to -35 deg. C / 41 to -31 deg. F (between 1,400 m and 2,700 m [4,593' and 8,858'] above sea level)

  • Operating Humidity

    20-80 % (no condensation)

  • Dimensions (W x H x D)

    335 x 134.1 x 329mm / 13.19 x 5.28 x 12.95"

  • Weight

    Approximately 8.4lbs / 3.81kg

About Panasonic PT-TW250

Compact Exterior, Superior Projection
Offering large-screen projection at a short distance, ideal for small or short spaces. Its interactive function contributes to more effective presentations. 2,800 lm, WXGA.

Superior Performance

High Brightness and High Contrast
With a brightness of 2,800 lm and 10,000:1 contrast, expect bright and clear images which enhances viewing situations and applications; all in a compact and mobile body.

A Maximum 8,000-Hour Lamp Replacement Cycle
It enables to operate for up to 8,000 hour without needing to be replaced. This also helps reduce maintenance and operating costs.

A Long-Life Filter with a Maximum 5,000-Hour Replacement Cycle
A long-life air filter has a replacement cycle of 5,000 hours. This reduces maintenance hassles for long periods of use and helps to lower maintenance costs.

Quiet 28-dB Design Helps to Hold Viewers' Attention
The noise level is as low as 28 dB. This helps your audience to keep their attention on the discussion or on the screen images during quiet scenes.

Daylight View Lite
The Daylight View Lite function can be activated from the remote control for easy and comfortable viewing during presentations and lectures in a bright-lit room.

Easy Installation

Short Projection Distance, 80-inch Screen Images
With close range projection, shadows of the presenter and the glare from the projector light is greatly reduced, enhancing presentation and viewing experience.

Corner Keystone Correction For Angled Protection
Designate four points as the corners of the projected image to easily carry out horizontal and vertical keystone correction.

Curved Screen Correction
Barrel and pincushion distortions are easily fixed when projected onto a curved screen.
Convenient Features

Memory Viewer Function
In addition to JPEG/BMP image and text files, PDF files can be projected by inserting a USB memory device containing the data into the USB memory port, thus presentations can be done without connecting to a computer.

USB Display Function and HDMI Input Terminal
Without the need to install any software, the USB display is able to output images and sounds from the computer. Presentations can be done by connecting a single USB cable to a USB port. Also, the projector supports a wide range of system architectures.

A Wide Variety of Functions for Easy Setup
The Auto Input Signal Search function automatically detects the input signal and selects the input channel based on the signal. This function lets you start a presentation without any complicated setup required. Color-board and Blackboard (Green) modes adjust the colors to provide high-quality projection possible in rooms that don't have a screen.

Eco-Friendly Design

Easy Recycling
The ecology-conscious design consists of no halogenated flame retardants, lead-free glass for the lens and coating-free cabinet for easy recycling.

Low Power Consumption
The lamp power switching mode further reduces power consumption.

What's in the box:

  • Panasonic PT-TW250 WXGA Short Throw 3LCD Multimedia Projector with Fixed Lens
  • Power Cord
  • Wireless Remote Control Unit
  • 2x Batteries (AAA/R03/LR03 Type)
  • 1.5m Computer Cable for VGA
  • Software CD-ROM (Multi Projector Monitoring & Control Software)
  • Panasonic 1 Year Warranty (90 Days on Lamp)
