Panasonic PT-TW340U WXGA Short Throw 3LCD Multimedia Projector, 1280x800, 3200 Lumens

SKU: PCPTTW340U MFR: PT-TW340U
Earn VIP Reward Points

Key Features

  • Experience vibrant visuals with 3200 Lumens, perfect for well-lit meeting rooms.
  • WXGA resolution (1280x800) delivers clear images, ideal for detailed presentations.
  • Enjoy a long lamp life up to 8000 hours, reducing maintenance and costs.
  • Short throw lens projects large images from a short distance, saving space.
  • HDMI connectivity ensures seamless integration with laptops and media devices.
  • Use the USB Display function to project directly from your USB storage device.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$149.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Panasonic PT-TW340U Specifications

  • LCD panel

    Display method: Transparent LCD panel (x 3, R/G/B)
    Drive method: Active matrix method
    Panel size: 15mm / 0.59" (16:10 aspect ratio)
    Pixels: 1024000 (1280 x 800) pixels

  • Lens

    Fixed (0.46:1 throw ratio)
    Manual focus F = 1.8, f = 6.08mm

  • Lamp

    1x 230W, Lamp replacement cycle (lamp control: Normal/Eco1/Eco2): 5000 hours/6000 hours/8000 hours

  • Screen size (diagonal)

    1.27 to 2.54m / 50 to 100", 16:10 aspect ratio

  • Brightness

    3200lm (Lamp power: Normal)

  • Center-to-corner uniformity

    80%

  • Contrast

    10000:1 (full on/off)
    (RGB signal input, Color mode: Dynamic, Lamp power: Normal)

  • Resolution

    1280 x 800 pixels
    (Input signals that exceed this resolution will be converted to 1280 x 800 pixels.)

  • Scanning frequency: HDMI

    fH: 15 to 91kHz
    fV: 24 to 85Hz
    dot clock: 162MHz or lower

  • Scanning frequency: RGB (analog)

    fH: 15 to 91kHz
    fV: 24 to 85Hz
    dot clock: 162MHz or lower

  • Scanning frequency: YPBPR(YCBCR) - 1

    fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)]
    fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
    fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
    fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
    fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
    fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
    fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
    fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)]
    fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
    fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]

  • Scanning frequency: YPBPR(YCBCR) - 2

    fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
    fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
    fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
    fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]

  • Scanning frequency: Video/S-Video

    fH: 15.73kHz, fV: 59.94Hz [NTSC/NTSC4.43/PAL-M/PAL60]
    fH: 15.63kHz, fV: 50Hz [PAL/SECAM/PAL-N]

  • Optical axis shift

    7.2: -1 (fixed)

  • Keystone correction range

    Vertical: +/-15 deg.(Auto, Manual)
    Horizontal: +/-15 deg. (Manual)

  • Installation

    Ceiling/floor, front/rear

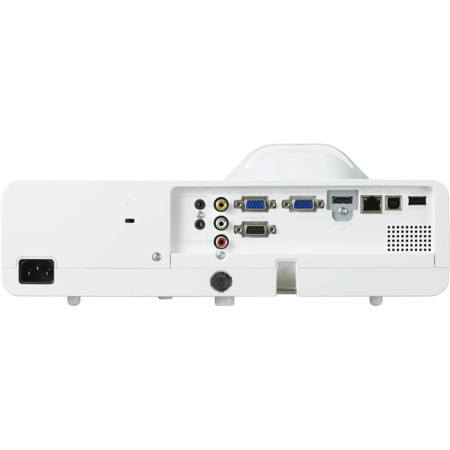

  • Terminals: HDMI IN

    HDMI IN: HDMI 19-pin x1 (compatible with HDCP, Deep Color) 480i, 480p, 576i, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/30p, 1080/25p, 1080/24p, 1080/24sF, VGA (640 x 480)-WUXGA (1920 x 1200), audio signal: linear PCM (sampling frequencies: 48kHz, 44.1kHz, 32kHz)

  • Terminals: COMPUTER 1 IN

    D-sub HD 15-pin (female) x1 (RGB/YPBPR/YCBCR /S-VIDEO x1)
    (The D-Sub/S-VIDEO conversion cable ET-ADSV is required for inputting S-VIDEO signals.)

  • Terminals: COMPUTER 2 IN/MONITOR OUT

    D-sub HD 15-pin (female) x1 (RGB x1), (input/output selectable using on-screen menu)

  • Terminals: VIDEO IN

    Pin jack x1

  • Terminals: AUDIO 1 IN

    M3 x1 (L-R x1)

  • Terminals: AUDIO 2 IN

    Pin jack x2 (L, R x1)

  • Terminals: AUDIO OUT

    M3 x1 (L-R x1) for output (variable)

  • Terminals: LAN

    RJ-45 x1
    (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink (class 1))

  • Terminals: SERIAL IN

    D-sub 9-pin (female) x1 for external control (RS-232C compliant)

  • Terminals: USB A

    USB type-A (for the Memory Viewer) x1

  • Terminals: USB B

    USB type-B (for the USB Display) x1

  • Built-in speaker

    10W (monaural) x1

  • Cabinet Material

    Molded plastic (PC)

  • Operation noise

    37dB (Lamp power: Normal)
    33dB (Lamp power: Eco1)
    28dB (Lamp power: Eco2)

  • Power supply

    100 to 240V AC, 50/60Hz

  • Power consumption

    300W (0.5W when Standby Mode set to ECO, 6.0W when Standby Mode set to Normal.)

  • Operating temperature

    5 to 40 deg. C / 41 to 104 deg. F (less than 4593.18 '/ 1400m above sea level)
    5 to 35 deg. C / 41 to 95 deg. F (between 1400m and 2700m / 4593.18' and 8858.27'] above sea level)

  • Operating humidity

    20 to 80% (no condensation)

  • Dimensions (W x H x D)

    335 x 134.16 x 329mm / 13.19 x 5.28 x 12.95"

  • Weight

    Approx. 8.4lbs / 3.81kg

  • UPC Code

    00885170196872

27 Accessories for Panasonic PT-TW340U WXGA Short Throw 3LCD Multimedia Projector, 1280x800, 3200 Lumens

  • All Accessories (27)
  • Brackets & Mounts (2)
  • Subwoofers (1)
  • Amplifiers (1)
  • Speakers (9)
  • Stands (1)
  • Screens (5)
  • Bags & Cases (1)
  • Cables & Adapters (5)
  • Cameras (2)

About Panasonic PT-TW340U

Are you seeking a high-quality, advanced projector that delivers powerful and reliable performance Look no further than the PT-TW340U WXGA Short Throw 3LCD Multimedia Projector. This durable projector boasts a native resolution of 1280x800, ensuring detailed and clear image and video display.

With a superior brightness of 3200 lumens, this projector outshines many alternatives on the market. Its high contrast ratio of 10000:1 enhances viewing situations and applications, making it perfect for multimedia presentations in business meetings, classrooms, and home theaters.

The PT-TW340U projector is designed with a compact exterior but offers large-screen projection even at a short distance, making it ideal for small or short spaces. Its interactive function contributes to more effective presentations, and the quiet 28-dB design ensures your audience's attention remains on the screen images during quiet scenes.

One of the standout features of this projector is its long-life lamp and filter. The lamp has a maximum replacement cycle of 8000 hours, while the air filter can last up to 5000 hours before needing replacement. This not only reduces maintenance hassles but also helps lower operating costs.

The projector's Daylight View Lite function can be activated from the remote control for comfortable viewing in bright-lit rooms. It also features a short projection distance, reducing shadows and glare for an enhanced presentation and viewing experience.

The PT-TW340U projector is equipped with corner keystone correction for angled projection and curved screen correction for projecting onto a curved screen. It also offers a memory viewer function, allowing you to project JPEG/BMP images, text files, and PDF files by inserting a USB memory device into the USB memory port.

The projector's USB display function and HDMI input terminal enable easy connection to a computer, supporting a wide range of system architectures. The Auto Input Signal Search function automatically detects the input signal and selects the input channel, simplifying setup.

Designed with eco-conscious users in mind, the PT-TW340U projector features a low power consumption mode and an eco-friendly design that includes no halogenated flame retardants, lead-free glass for the lens, and a coating-free cabinet for easy recycling.

In summary, the PT-TW340U WXGA Short Throw 3LCD Multimedia Projector offers a blend of advanced features, high-quality performance, and eco-friendly design, making it a top choice for your projection needs.

Panasonic PT-TW340U Features

  • High-resolution 3LCD Multimedia Projector with 1280x800 native resolution for detailed image display
  • Powerful 3200 lumens brightness for clear projections in well-lit environments
  • Long-life lamp and air filter with 8000 and 5000 hours replacement cycles respectively, reducing maintenance costs
  • Quiet 28-dB design for undisturbed presentations and viewing experiences
  • Advanced features including corner keystone correction, curved screen correction, and memory viewer function for versatile use
  • Eco-friendly design with low power consumption mode, lead-free glass lens, and coating-free cabinet for easy recycling

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience vibrant visuals with 3200 Lumens, perfect for well-lit meeting rooms.
  • WXGA resolution (1280x800) delivers clear images, ideal for detailed presentations.
  • Enjoy a long lamp life up to 8000 hours, reducing maintenance and costs.
  • Short throw lens projects large images from a short distance, saving space.
  • HDMI connectivity ensures seamless integration with laptops and media devices.
  • Use the USB Display function to project directly from your USB storage device.

What's in the box:

  • Panasonic PT-TW340U WXGA Short Throw 3LCD Multimedia Projector
  • Power Cord
  • Wireless Remote Control Unit
  • 2x Batteries (AAA/R03/LR03 Type)
  • 1.5m Computer Cable for VGA
  • Software CD-ROM (Multi Projector Monitoring and Control Software)
  • Panasonic Warranty
