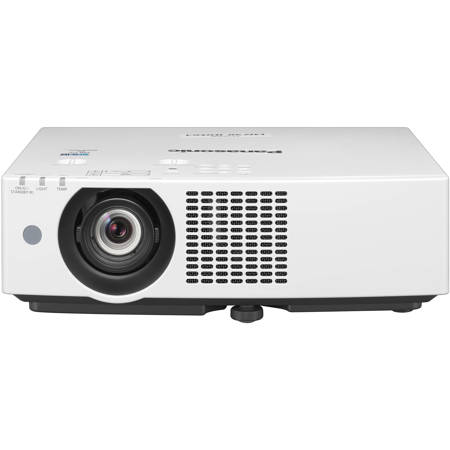

Panasonic PT-VMZ40U 3LCD WUXGA Portable Laser Projector, 4500 Lumens, White
See all Panasonic items

Panasonic PT-VMZ40U 3LCD WUXGA Portable Laser Projector, 1920x1200, 4500 Lumens, White

SKU: PCPTVMZ40U
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Panasonic PT-VMZ40U Specifications

  • Light output

    4500 lumens

  • Technology

    Laser LCD

  • Panel size

    LCD Panel: 0.64" (16mm) diagonal (16:10 aspect ratio)

  • Display method

    LCD Panel: Transparent LCD panel (x 3, R/G/B)

  • Drive method

    LCD Panel: Active matrix

  • Pixels

    LCD Panel: 2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels

  • LENS

    LCD Panel: 1.6 x Manual zoom (throw ratio 1.09-1.77 :1), F = 1.60-2.12, f = 15.30-24.64 mm

  • Light source

    Laser diode

  • Screen size (diagonal)

    30 - 300" (0.76 - 7.62m) (16:10 aspect ratio)

  • Center-to-corner uniformity

    0.85%

  • Contrast

    3,000,000:1 (all white/all black) (Input signals:PC,LIGHT POWER:NORMAL,PICTURE MODE:DYNAMIC,DAYLIGHT WIEW:OFF,DYNAMIC CONTRAST:1,AUTO POWER SAVE:OFF)

  • Resolution

    1920 x 1200 pixels

  • Optical axis shift - Vertical

    0 % - +44 % (Manual) (from center of screen)

  • Optical axis shift - Horizontal

    +/- 20% (Manual) (from center of screen)

  • Keystone correction range

    Vertical: +/-25 Degree , Horizontal: +/-35 Degree

  • Installation

    Horizontal/Vertical, free 360-degree installation

  • HDMI 1/2 In

    Terminals: HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p signal input)

  • Computer 1 In

    Terminals: D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)

  • Computer 2 In / Monitor Out

    Terminals: D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) (input/output switching)

  • Video In

    Terminals: Pin jack x 1

  • Audio 1/2 In

    Terminals: M3 stereo mini-jack x 2

  • Audio 3 In

    Terminals: Pin jack (L/R) x 1

  • Variable Audio Out

    Terminals: M3 stereo mini-jack x 1

  • Serial In

    Terminals: D-sub 9-pin x 1 for computer control (RS-232C compliant)

  • LAN

    Terminals: RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink (Class 2)

  • USB Connector

    Terminals: USB connector (Type A) x 1 for Memory Viewer function, power supply (DC5V, maximum 2A 3), optional wireless module AJ-WM50

  • Power supply

    AC 100-240 V AC, 50/60 Hz

  • Power consumption

    TBD

  • Built-in Speaker

    10 W (monaural)

  • Operating noise

    Normal: 37dB, Quiet: 29dB

  • Cabinet materials

    Molded plastic

  • Filter

    Included (Filter replacement cycle: TBD)

  • Applicable software/application

    Logo Transfer Software, Multi Monitoring & Control Software, Presenter Light for Windows, Wireless Projector Apps for iOS/Android

  • Operating environment

    Operating temperature: 32 Degree F - 113 Degree F (0 Degree C - 45 Degree C)
    Operating humidity: 20 %-80 % (no condensation)

  • Dimensions (W x H x D)

    15.71 x 4.53 x 13.68" (399 x 115 x 348mm) (Not including protruding parts)
    15.71 x 5.25 x 13.68" (399 x 133 x 348mm) (With feet at shortest position)

  • Weight

    < 15.87 lb (< 7.2kg)

About Panasonic PT-VMZ40U

Designed for Long-Lasting brightness and easy installation for education and corporate environments.

Panasonic PT-VMZ40U Features

  • Laser LCD, 4500 lumens, WUXGA
  • Compact and lightweight body bringing high brightness dynamic image
  • Long lasting laser light source provide consistent brightness
  • 1.6x zoom and wide horizontal and vertical lens shift for flexible installation
  • Wireless projection capability (optional)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Laser LCD, 4500 lumens, WUXGA
  • Compact and lightweight body bringing high brightness dynamic image
  • Long lasting laser light source provide consistent brightness
  • 1.6x zoom and wide horizontal and vertical lens shift for flexible installation
  • Wireless projection capability (optional)

What's in the box:

  • PT-VMZ40U 3LCD WUXGA Portable Laser Projector
  • Panasonic 3 Year Limited Warranty
