Panasonic PT-VW350U WXGA LCD Projector, 4000 Lumens
See all Panasonic items

Panasonic PT-VW350U WXGA LCD Projector, 1280x800, 4000 Lumens

SKU: PCPTVW350U
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Panasonic PT-VW350U Specifications

  • Power supply

    AC 100-240V, 50 Hz/60Hz

  • Power consumption

    100-120V: 310W, 220-240V: 290W (0.4W when Standby mode set to ECO, 1.3W when Standby mode set to Network, 9W when Standby mode set to Normal)

  • LCD panel

    Panel size: 15.0mm (0.59") (16:10 aspect ratio)
    Display method: 3x Transparent LCD panel (R/G/B)
    Pixels: 1024000 (1280 x 800) pixels

  • Lens

    Manual zoom (1.6x) (throw ratio: 1.2-1.9:1), manual focus, F 1.60-2.12, f 15.30-24.64mm

  • Screen size (diagonal)

    0.76-7.62m (30-300"), 16:10 aspect ratio

  • Resolution

    1280 x 800 pixels (Input signals that exceed this resolution will be converted to 1280 x 800 pixels.)

  • Brightness

    4000lm (input signals: PC, lamp power: Normal, picture mode: Dynamic)

  • Lamp

    90%230W lamp (240W driven)

  • Lamp replacement cycle

    Normal: 5000 h / Eco: 7000 h

  • Center-to-corner uniformity

    85%

  • Contrast

    10000:1 (Full On/Off) (input signals: PC, lamp power: Normal, picture mode: Dynamic, IRIS: On)

  • Scanning frequency: HDMI IN

    fH: 15-80kHz
    fV: 50-85Hz
    dot clock: 162MHz or lower

  • Scanning frequency: RGB (analog)

    fH: 15-100kHz
    fV: 50-100Hz
    dot clock: 162MHz or lower (Signals exceeding the dot clock rate of 140MHz are down sampled.)

  • Scanning frequency: YPBPR (YCBCR) 1

    fH: 15.75kHz
    fV: 60Hz [525i (480i)]
    fH: 15.63kHz
    fV: 50Hz [625i (576i)]
    fH: 31.50kHz
    fV: 60Hz [525p (480p)]
    fH: 31.25kHz
    fV: 50Hz [625p (576p)]
    fH: 45.00kHz
    fV: 60Hz [750p (720)/60p]
    fH: 37.50kHz
    fV: 50Hz [750p (720)/50p]
    fH: 33.75kHz
    fV: 60Hz [1125 (1080)/60i]
    fH: 28.13kHz
    fV: 50Hz [1125 (1080)/50i]

  • Scanning frequency: YPBPR (YCBCR) 2

    fH: 28.13kHz
    fV: 25Hz [1125 (1080)/25p]
    fH: 27.00kHz
    fV: 24Hz [1125 (1080)/24p]
    fH: 27.00kHz
    fV: 48Hz [1125 (1080)/24sF]
    fH: 33.75kHz
    fV: 30Hz [1125 (1080)/30p]
    fH: 67.50kHz
    fV: 60Hz [1125 (1080)/60p]
    fH: 56.25kHz
    fV: 50Hz [1125 (1080)/50p]

  • Scanning frequency: Video/S-Video

    fH: 15.75kHz
    fV: 60Hz [NTSC/NTSC4.43/PAL-M/PAL60]
    fH: 15.63kHz
    fV: 50Hz [PAL/SECAM/PAL-N]

  • Optical axis shift

    49:1 (fixed)

  • Keystone correction range

    Vertical: +/-40 deg.(+/-30 deg. when using AUTO)(maximum value of WXGA input)
    horizontal: +/-30 deg. (maximum value of WXGA input)

  • Installation

    Ceiling/floor, front/rear

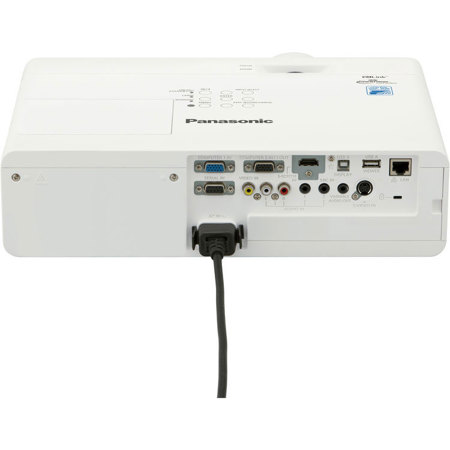

  • Terminals: HDMI IN

    HDMI 19-pin (compatible with HDCP, Deep Color) 480i, 480p, 576i, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 1080/60p, 1080/50p
    VGA (640 x 480)-WUXGA (1,920,200)
    Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)

  • Terminals: COMPUTER 1 IN

    D-sub HD 15-pin (female) (RGB/YPBPR/YCBCR)

  • Terminals: COMPUTER 2 IN /MONITOR OUT

    D-sub HD 15-pin (female) (RGB), (input/output selectable using on-screen menu)

  • Terminals: VIDEO IN

    Pin jack (Composite VIDEO)

  • Terminals: S-VIDEO IN

    Mini DIN 4-pin (S-VIDEO)

  • Terminals: AUDIO IN 1

    M3 (L-R)

  • Terminals: AUDIO IN 2 (MIC IN)

    M3 (L-R) for audio input or for microphone connection (variable)

  • Terminals: AUDIO IN 3

    2x Pin jack (L, R)

  • Terminals: AUDIO OUT

    M3 (L-R) for output (variable)

  • Terminals: LAN

    RJ-45 (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink)

  • Terminals: SERIAL IN

    D-sub 9-pin (female) for external control (RS-232C compliant)

  • Built-in speaker

    4.0cm (1 9/16") round shape, output power: 10.0W (monaural)

  • Operation noise

    37 dB (lamp power: Normal), 29 dB (lamp power: Eco)

  • Cabinet materials

    Molded plastic

  • Operating environment

    Operating temperature: 0 to 40 deg. C / 32 to 104 deg. F (less than 1400m [4593'] above sea level, HIGH ALTITUDE MODE: OFF)
    Operating humidity: 10-80% (no condensation)

  • Dimensions (W x H x D)

    13.84 x 3.841 x 11" / 351.54 x 97.54 x 279.4 mm

  • Weight

    Approx. 3.31kg / 7.3lbs

1 Accessories for Panasonic PT-VW350U WXGA LCD Projector, 1280x800, 4000 Lumens

  • All Accessories (1)
  • Laptop Stand (1)
Flashpoint Laptop Stand and Accessory Tray
Flashpoint Laptop Stand and Accessory Tray
$69.00
Recommended

About Panasonic PT-VW350U

Superb Imaging Performance from a Lightweight Body
• Smallest, Lightest and Easiest-to-Carry Projector in Its Class1
• 4500 lm Brightness in XGA Resolution(4000 lm in WXGA)
• High 10000:1 Contrast Ratio for Sharp, Detailed Pictures
• Quiet 37 dB Operation in Normal Mode (29 dB in Eco Mode)
• Extended Lamp Replacement of 5000 Hours in Normal (7000 Hours in Eco Mode)
• Daylight View Basic Function for Clear and Bright Images in Well-Lit Rooms

Convenient Functions for Greater Versatility
• 1.6x Zoom Lens Provides Installation and Setup Flexibility
• Vertical, Horizontal and Corner Keystone Correction for Angled Projection
• Side-By-Side and Picture-in-Picture Function (VW350 and VW355N Only)
• Auto Input Signal Search Function Automatically Detects Input Signals
• Memory Viewer and USB Display Function (VX425N and VW355N Only)
• HDMI, 2x D-sub, Monitor Out Terminals
• Built-in 10 W Monaural Speaker

Next-Generation Wireless Connectivity (VX425N and VW355N)
• Fast, Stable and Secure Wireless Transmission from Compatible PCs (Intel Pro WiDi to be Supported)
• High-Bandwidth Miracast Connectivity for Compatible Android Devices
• Supports Panasonic Applications for iOS, Android and Windows/Mac PCs with Multi-Live Split-screen Mode
• Compatible with ET-UW100 Easy Wireless Stick2 for Plug-and-Project Wireless PC Connectivity

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Panasonic PT-VW350U WXGA LCD Projector
  • Wireless Remote Control Unit
  • Power Cord (2x for UK and Asia only)
  • Batteries for Remote Control (2x R03/LR03/AAA Type Battery)
  • RGB Signal Cable
  • Lens Cap
  • Software CD-ROM (Logo Transfer Software & Multi Projector Monitoring & Control Software)
  • Panasonic Warranty
