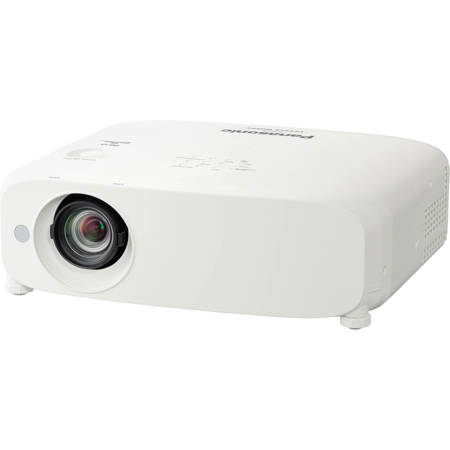

Panasonic PT-VW530U WXGA LCD Projector
See all Panasonic items

Panasonic PT-VW530U WXGA LCD Projector, 5000 Lumens, 16:10 Aspect Ratio, 5000 Hours UHM Lamp, 10W Speaker, HDMI /VGA, Microphone Input

SKU: PCPTVW530U
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Panasonic PT-VW530U Specifications

  • Display System

    3-Chip 0.59" / 15 mm RGB Liquid Crystal Shutter Projection System LCD

  • Native Resolution

    WXGA - 1280 x 800

  • Supported Resolutions

    VGA - 640 x 480
    WUXGA - 1920 x 1200

  • Format

    NTSC
    NTSC 4.43
    PAL
    PAL M
    PAL N
    PAL 60
    SECAM

  • HDTV Compatibility

    1080p at 60 fps
    1080i at 60 fps
    1080p at 50 fps
    1080i at 50 fps
    720p at 60 fps
    720p at 50 fps
    576p
    480p

  • Pixels

    3,072,000

  • Brightness

    5000 Lumens

  • Uniformity

    85%

  • Aspect Ratio

    Native: 16:10

  • Contrast Ratio

    5000:1

  • Scan

    Horizontal: 15 - 91 kHz
    Vertical: 24 - 100 Hz

  • Focus

    Manual

  • Lens

    F 1.6 - 1.9 (f = 15.31 - 24.64 mm)

  • Zoom

    Manual: 1.6x

  • Throw Ratio

    1.2 - 1.9:1

  • Projection Size

    30 - 300" / 76.20 - 762.00 cm

  • Keystone Correction

    Vertical: +/- 35 deg.
    Horizontal: +/- 35 deg.

  • Ceiling Mountable

    Yes

  • Rear Screen Projection

    Yes

  • Built-in Speaker

    10 W (Mono)

  • Inputs/Outputs

    1x HDMI Audio/Video (Input)
    1x 15-pin VGA Video (Input)
    1x 15-pin VGA Video (Input/Output)
    1x RCA Composite Video (Input)
    1x RCA Stereo (L/R) Audio (Input)
    2x M3 Audio (Input)
    1x M3 Audio (Output)
    1x RS-232C Control
    1x Ethernet LAN

  • Lamp (Bulb)

    1x UHM

  • Lamp Watts

    270 W

  • Lamp Life

    Normal Mode: 5000 Hours
    Eco Mode: 7000 Hours

  • Fan Noise

    Normal Mode: 37 dB
    Eco Mode: 29 dB

  • Maximum Pixel Clock

    162 MHz

  • Security

    Cable Lock Slot
    Password Protection

  • Power Requirements

    100-240 VAC, 50/60 Hz

  • Power Consumption

    Standby Mode (Network on): 8 W
    Standby Mode: .48 W

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Operating Humidity

    20 - 80%

  • Dimensions (W x H x D)

    15.3 x 4.9 x 13.1" / 388.62 x 124.46 x 332.74mm

  • Weight

    10.80lbs / 4.90kg

  • UPC Code

    885170204782

About Panasonic PT-VW530U

• Auto input signal search and on-screen guide
• 10 Watt speakers and MIC input
• HDMI IN and various interfaces
• LAN enabled remote control monitoring
• Easy lamp replacement (top panel)
• Colour-board and Blackboard colour adjustment mode
• Direct power off
• Anti-theft and security functions with customizable start up logo
• Projector ID for remote control allocation (up to 6 projectors)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Panasonic PT-VW530U WXGA LCD Projector
  • Wireless Remote Control
  • 2x AAA Batteries (for Remote Control)
  • RGB Cable
  • 6.6' (2m) Power Cord with Cord Holder
  • Lens Cap
  • Software CD-ROM (User Manual / Multi Projector Monitoring & Control Software / Logo Transfer Software)
  • Panasonic 3 Year Limited Warranty
