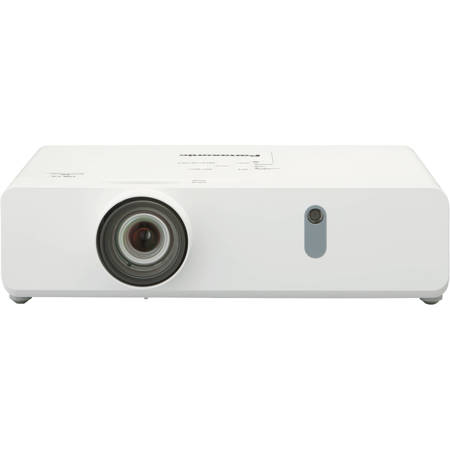

Panasonic PT-VX415NZU XGA LCD Projector, 4200 Lumens, 4:3 Aspect Ratio, Miracast Wireless, 1.6x Manual Zoom, 10W Speaker, 230W Lamp, HDMI/USB

SKU: PCPTVX415NZU

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Panasonic PT-VX415NZU Specifications

  • Power supply

    100-240 V AC, 50/60 Hz

  • Power consumption

    100-120 V AC: 300 W,220-240 V AC: 280 W (0.4 W when STANDBY MODE set to ECO, 5 W when STANDBY MODE set to Network, 14 W when STANDBY MODE set to Normal.)

  • Panel size

    16.0 mm (0.63") (4:3 aspect ratio)

  • Display method

    Transparent LCD panel (x 3, R/G/B)

  • Pixels

    786,432 (1,024 x 768) x 3, total of 2,359,296 pixels

  • Lens

    1.6x manual zoom (throw ratio: 1.2-1.9:1), manual focus, F 1.60-2.12, f 15.30-24.64 mm

  • Lamp

    230 W x 1,
    lamp replacement cycle (lamp power: Normal/Eco1/Eco2): 4,000 hours/5,000 hours/6,000 hours

  • Screen size (diagonal)

    0.76-7.62 m (30-300 in), 4:3 aspect ratio

  • Brightness

    4,200 lm
    (input signals: PC, lamp power: Normal, picture mode: Dynamic)

  • Center-to-corner uniformity

    85 %

  • Contrast

    4,000:1 (full on/off)
    (input signals: PC, lamp power: Normal, picture mode: Dynamic, IRIS: On)

  • Resolution

    1,024 x 768 pixels

  • Scanning frequency: HDMI

    fH: 15-80 kHz, fV: 50-85 Hz, dot clock: 162 MHz or lower

  • Scanning frequency: RGB (analog)

    fH: 15-100 kHz, fV: 50-100 Hz, dot clock: 162 MHz or lower
    (Signals exceeding the dot clock rate of 140 MHz are down sampled.)

  • Scanning frequency: YPBPR (YCBCR) 1

    fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
    fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
    fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
    fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
    fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
    fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
    fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
    fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
    fH: 31.25 kHz, fV: 50 Hz [576p (625p)]

  • Scanning frequency: YPBPR (YCBCR) 2

    fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
    fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
    fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
    fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
    fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] [1080 (1125)/30p]
    fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]

  • Scanning frequency: Video/S-Video

    fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
    fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]

  • Optical axis shift

    9:1 (fixed)

  • Keystone correction range

    Vertical: +/-40deg. (+/-30deg. when using Easy Setting) (maximum value of XGA input),
    horizontal: +/-30deg.(+/-20deg. when using Easy Setting) (maximum value of XGA input)

  • Installation

    Ceiling/floor, front/rear

  • Terminals: HDMI IN

    HDMI 19-pin x 1 (compatible with HDCP, Deep Color)
    480i, 480p, 576i, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i,
    1080/25p, 1080/24p, 1080/24sF, 1080/30p,
    1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200),
    audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)

  • Terminals: COMPUTER 1 IN

    D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)

  • Terminals: COMPUTER 2 IN /MONITOR OUT

    D-sub HD 15-pin (female) x 1 (RGB x 1), (input/output selectable using on-screen menu)

  • Terminals: VIDEO IN

    Pin jack x 1 (Composite VIDEO)

  • Terminals: S-VIDEO IN

    Mini DIN 4-pin x 1 (S-VIDEO)

  • Terminals: AUDIO 1 IN

    M3 x 1 (L-R x 1)

  • Terminals: AUDIO 2 IN (MIC IN)

    M3 x 1 (L-R x 1) for audio input or for microphone connection (variable)

  • Terminals: AUDIO 3 IN

    Pin jack x 2 (L, R x 1)

  • Terminals: AUDIO OUT

    M3 x 1 (L-R x 1) for output (variable)

  • Terminals: SERIAL IN

    D-sub 9-pin (female) x 1 for external control (RS-232C compliant)

  • Terminals: LAN

    RJ-45 x 1
    (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink)

  • Terminals: USB A

    USB type-A
    (for the USB Memory Viewer) x 1

  • Terminals: USB B

    USB type-B
    (for the USB Display) x 1

  • Built-in speaker

    4.0 cm (1-9/16") round shape x 1, output power: 10.0 W (monaural)

  • Noise level

    35 dB (lamp power: Normal), 29 dB (lamp power: Eco1, Eco2)

  • Cabinet materials

    Molded plastic

  • Wireless: Standard

    2.4 GHz: IEEE802.11b/g/n,
    5.0 GHz: IEEE802.11a/n

  • Wireless: Infrastructure mode

    WPA-PSK (TKIP/AES),
    WPA2-PSK (TKIP/AES),
    128 bit/64 bit WEP,
    WPA-EAP/WPA2-EAP
    (PEAP [MS-CHAPv2/GTC],
    EAP-FAST [MS-CHAPv2/GTC],
    EAP-TTLS [MD5/MS-CHAPv2])
    128bit/64bit

  • Operating temperature

    0deg.C-40deg.C [32deg.F-104deg.F]
    (less than 1,400 m [4,593 ft] above sea level, HIGH ALTITUDE MODE: OFF),
    0deg.C-30deg.C [32deg.F-86deg.F]
    (between 1,400 m and 2,000 m [4,593 ft and 6,562 ft] above sea level,
    HIGH ALTITUDE MODE: HIGH 1),
    0deg.C-30deg.C [32deg.F-86deg.F]
    (between 2,000 m and 2,700 m [6,562 ft and 8,858 ft] above sea level,
    HIGH ALTITUDE MODE: HIGH 2)

  • Operating humidity

    10-80 % (no condensation)

  • Dimensions (W x H x D)

    352 x 98.0 x 279.4mm (13.85 x 3.85 x 11")

  • Weight

    Approx. 3.4 kg (7.5 lbs)

1 Accessories for Panasonic PT-VX415NZU XGA LCD Projector, 4200 Lumens, 4:3 Aspect Ratio, Miracast Wireless, 1.6x Manual Zoom, 10W Speaker, 230W Lamp, HDMI/USB

  • All Accessories (1)
  • Laptop Stand (1)

About Panasonic PT-VX415NZU

Panasonic's PT-VX415NZU LCD projector is a smaller, lighter, smarter way to share your ideas - with multi-device wireless projection with Miracast support. Now you can connect and collaborate by linking with people, devices and the world. Simply connect a Miracast-compatible PC, tablet or Android phone and instantly mirror whatever is on your screen - from Full-HD video to websites, online video streams and PowerPoint documents. You can connect tested Miracast-compatible devices directly to the projector, without having to access a Wi-Fi network. This makes the next generation of high-quality wireless projection even easier to use.

The PT-VX415 Series ranks high in the portable projector category with a high brightness ranging from 4,200 lumens and also incorporates a variable iris that produces a high contrast of 3,000:1 - all of which combines to provide brighter, sharper projection for versatile situations. The PT-VX415 Series has a maximum lamp replacement cycle of 6,000 hours.

Panasonic PT-VX415NZU Features

  • 1.6x Zoom Lens Allows Flexible Installation: When projecting onto a 100-inch wide screen, the 1.6x zoom lens lets the PT-VX415NZU support a wide range of projection distances, from 2.5 to 4.1 meters (8.2 to 13.5 feet)
  • Corner Keystone Correction Enables Angled Projection: All you need to do is designate four points as the corners of the projected image and this function easily carries out horizontal and vertical keystone correction
  • Auto Input Signal Search: The Auto Input Signal Search function automatically detects the input signal and selects the input channel based on the signal. This function lets you start a presentation without any complicated setup required
  • Input Guidance Function: If the input signal cannot be detected, the Input Guidance function will display connection instructions on the projector screen, for easy setup
  • Color-board and Blackboard modes: Color-board and Blackboard modes adjust the colors to make high-quality projection possible in rooms that don't have a screen
  • Side-by-Side and P-in-P Function for Effective Presentations and Lectures: Two different image sources can be simultaneously displayed onto a single screen. You can also switch to P-in-P (Picture-in-Picture) mode and display a sub-window onto the main screen
  • 10-Watt Speakers and a Microphone Input Enables Audio Playback Directly from the Projector: This portable projector features high-output 10-watt speakers that produce a high sound volume without requiring external speakers
  • HDMI Input Terminal and Abundant Interfaces: Extensive interfaces include an HDMI input terminal, 2 sets of computer (RGB) input terminals, a wired LAN terminal and a serial (RS-232C) terminal for external control
  • Easy Remote Monitoring and Control over a LAN: Web browser on a computer connected through a wired LAN system lets you remotely operate projectors and check their status. An e-mail messaging function can also notify you when a lamp needs replacement and indicate the overall projector status
  • Easy Lamp and Air Filter Replacement: For easier maintenance, you can replace the lamp from the top and the air filter from the side, even after the projector is installed on the ceiling. This eliminates the need to detach the projector from its mounting bracket in ceiling-mounted applications
  • Direct Power Off right after use
  • Effective theft prevention with the startup logo
  • Projector identification system for remote control allocation of up to six projectors
  • Built-in closed caption decoder
  • Supporting Early Warning Software

Key Features

  • Direct Power Off right after use
  • Effective theft prevention with the startup logo
  • Built-in closed caption decoder
  • Supporting Early Warning Software

What's in the box:

  • Panasonic PT-VX415NZU XGA LCD Projector
  • Power Cord
  • Wireless Remote Control Unit
  • Batteries (AAA/R03/LR03 Type x 2)
  • Computer Cable
  • Software CD-ROM (Logo Transfer Software & Multi Projector Monitoring & Control Software & Wireless Manager ME 6.0)
  • Panasonic Warranty
