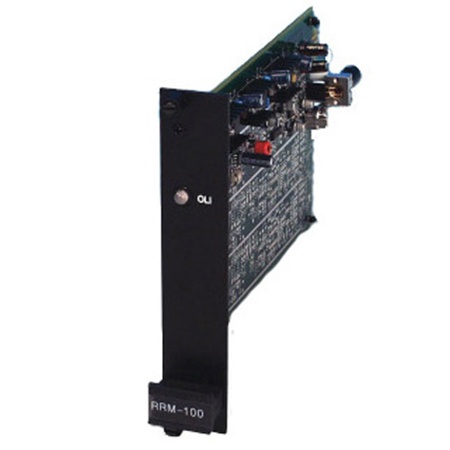

Panasonic RRM100 FM Video Rack Card Receiver, Multimode

The RRM-100 operates as half of a transmitter / receiver pair for the transmission of baseband NTSC, PAL, RS170 or RS343 video signals over a single multimode fiber optic cable. It is designed to operate with the MTM-100, RTM-100 or RTM-30 video transmitter. The RTM-30 contains the electronics and optics of three RTM-100 units mounted on one printed circuit board to save space and reduce cost. The RRM-100 converts a single FM modulated optical input into a single video output using an 850 nm wavelength detector. The M100 Series product is designed to operate over an optical loss budget range of 0 to 12 dB with a maximum distance of up to 2.5 km. The RRM-100 operates on 50 um or 62.5 um multimode fiber. Refer to the data sheets for detailed performance specifications.

This unit is designed for rack mounting in any of the three American Fibertek subracks available. The subrack model numbers are SR-20/1, SR-20R/1 and SR-20/2. Slide in rack mounting and a LED indicator provide for easy installation and monitoring of video and power. The RRM-100 is designed for rack mounting only.
