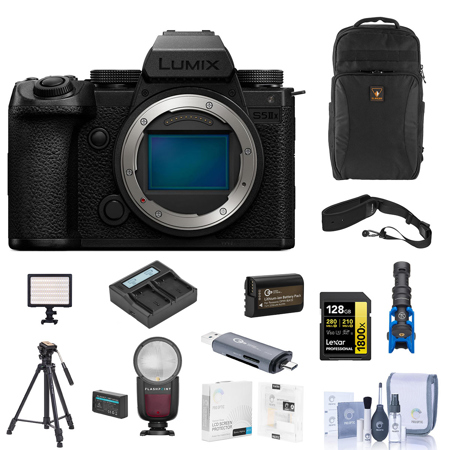

Panasonic Lumix S5 IIX Mirrorless Camera, Bundle with Complete Kit
See all Panasonic items

Panasonic Lumix S5 IIX Mirrorless Camera, Bundle with Zoom Li-on X R2 Flash, Video Tripod, 2x Battery and 128GB Memory Card

SKU: PCS5M2XCK
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Panasonic LUMIX FZ80D 18.1MP Point & Shoot Digital Camera, Bundle w/Complete Kit
$807.72
$707.72
undefined undefined: Picture 1 regular
Panasonic LUMIX GH5II Camera with Leica 12-60mm f/2.8-4.0 Lens
$2,097.99
$1,797.99
undefined undefined: Picture 1 regular
Panasonic LUMIX GH5II Mirrorless Camera with 12-60mm Lens with Accessories Kit
$2,097.99
$1,797.99
undefined undefined: Picture 1 regular
Panasonic LUMIX GH5II Mirrorless Camera with 12-60mm Lens, Complete Acc. Kit
$2,269.99
$1,969.99
undefined undefined: Picture 1 regular
Panasonic LUMIX GH5II Mirrorless Camera with 12-60mm Lens with Essential Kit
$2,147.98
$1,847.98
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What kind of autofocus system does the Lumix S5 IIX Mirrorless Camera have?

The Lumix S5 IIX Mirrorless Camera features a fast and accurate phase hybrid autofocus system with 779 points of autofocus. This ensures clear images even in challenging scenes.

What is the High Resolution Mode on the Lumix S5 IIX Mirrorless Camera?

The High Resolution Mode on the Lumix S5 IIX Mirrorless Camera automatically captures eight consecutive images while shifting the sensor. These images are then synthesized into a 96-megapixel equivalent image.

Does the Lumix S5 IIX Mirrorless Camera support live streaming?

Yes, the Lumix S5 IIX Mirrorless Camera supports both wireless live streaming (RTMP/RTMPS) for outdoor use and highly stable wired live streaming (RTP/RTSP) for indoor use.

What does the Lumix S5 IIX Mirrorless Camera bundle include?

The Lumix S5 IIX Mirrorless Camera bundle includes a Zoom Li-on X R2 Flash, Video Tripod, 2x Battery, and a 128GB Memory Card.

What is the Active I.S. feature on the Lumix S5 IIX Mirrorless Camera?

The Active I.S. feature on the Lumix S5 IIX Mirrorless Camera compensates for significant camera shake, allowing you to walk and shoot with the smoothness of a gimbal.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Panasonic Lumix S5 IIX Specifications

Type

Type

Jump to...

  • Type

    Digital Single Lens Mirrorless camera

  • Lens mount

    L-Mount

Image Sensor

Jump to...

  • Type

    35mm full-frame (35.6 x 23.8mm) CMOS sensor

  • Camera effective pixels / Total pixels

    24.20 megapixels / 25.28 megapixels

  • AR (Anti Reflection) coating

    Yes

  • Aspect ratio / Color filter

    3:2 / Primary color filter

  • Dust reduction system

    Image sensor shift type

Latitude

Jump to...

  • Latitude

    14+ stops (V-Log)

Still Image

Jump to...

  • Recording file format

    JPEG (DCF, Exif 2.31), RAW

  • Aspect ratio

    4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1

  • File size (When using Full-frame lenses)

    3:2: 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL) / 8496x5664(LL)
    4:3: 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL) / 7552x5664(LL)
    16:9: 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL) / 8496x4784(LL)
    1:1: 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL) / 5664x5664(LL)
    65:24: 6000x2208(L)
    2:1: 6000x3000(L)

  • File size (When using APS-C/Super35)

    3:2: 3984x2656(L) / 2880x1920(M) / 2064x1376(S)
    4:3: 3536x2656(L) / 2560x1920(M) / 1840x1376(S)
    16:9: 3984x2240(L) / 2880x1624(M) / 1920x1080(S)
    1:1: 2656x2656(L) / 1920x1920(M) / 1376x1376(S)

  • Image quality

    RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine)

  • Color space

    sRGB, AdobeRGB

Motion Picture

Jump to...

  • Recording file format

    MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes
    MP4: H.264/MPEG-4 AVC, H.265/HEVC

  • Audio format

    MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit) (4ch 48kHz/24-bit, 96kHz/24-bit)
    MP4: AAC (2ch 48kHz/16-bit)

  • System frequency

    59.94Hz / 50.00Hz / 24.00Hz

  • Image area of video

    Full / APS-C / PIXEL/PIXEL

  • MOV 59.94Hz Full

    (6K) 5952x3968 (3:2):
    29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

    (6K) 5952x3136 (17:9):
    29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

    (5.9K) 5888x3312 (16:9)
    29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 59.94Hz Full (Contd.)

    (C4K) 4096x2160:
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 59.94Hz Full (Contd..)

    (4K) 3840x2160:
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 59.94Hz Full (Contd...)

    (FHD) 1920x1080:
    119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 59.94Hz Full (Contd....)

    47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 59.94Hz Full (Contd.....)

    23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 59.94Hz APS-C/Pixel

    (C4K) 4096x2160:
    59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)

  • MOV 59.94Hz APS-C/Pixel (Contd.)

    47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 59.94Hz APS-C/Pixel (Contd..)

    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 59.94Hz APS-C/Pixel (Contd...)

    (4K) 3840x2160:
    59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)

  • MOV 59.94Hz APS-C/Pixel (Contd....)

    47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)

  • MOV 59.94Hz APS-C/Pixel (Contd.....)

    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 59.94Hz APS-C/Pixel (Contd......)

    (3.3K) 3328x2496 (4:3):
    47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)

  • MOV 59.94Hz APS-C/Pixel (Contd.......)

    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 59.94Hz APS-C/Pixel (Contd........)

    (FHD) 1920x1080:
    119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 59.94Hz APS-C/Pixel (Contd.........)

    47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)

  • MOV 59.94HzAPS-C/Pixel (Contd..........)

    29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 50Hz Full

    (6K) 5952x3968 (3:2): 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

    (6K) 5952x3136 (17:9): 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

    (5.9K) 5888x3312 (16:9): 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 50Hz Full (Contd.)

    (C4K) 4096x2160: 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

    (4K) 3840x2160: 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 50Hz Full (Contd..)

    (FHD) 1920x1080:
    100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    50.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 50Hz Full (Contd...)

    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

    (C4K) 4096x2160:
    50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)

  • MOV 50Hz APS-C/Pixel

    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 50Hz APS-C/Pixel (Contd.)

    (4K) 3840x2160:
    50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)

  • MOV 50Hz APS-C/Pixel (Contd..)

    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

    (3.3K) 3328x2496 (4:3):
    50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)

  • MOV 50Hz APS-C/Pixel (Contd...)

    50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 50Hz APS-C/Pixel (Contd....)

    (FHD) 1920x1080:
    100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)

  • MOV 50Hz APS-C/Pixel (Contd.....)

    50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 24Hz Full

    (6K) 5952x3968 (3:2): 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

    (6K) 5952x3136 (17:9): 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

    (5.9K) 5888x3312 (16:9): 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 24Hz Full (Contd.)

    (C4K) 4096x2160: 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 24Hz Full (Contd..)

    (4K) 3840x2160:
    24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 24Hz Full (Contd...)

    (FHD) 1920x1080:
    48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 24Hz APS-C/Pixel

    (C4K) 4096x2160:
    48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)

  • MOV 24Hz APS-C/Pixel (Contd.)

    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

    (4K) 3840x2160:
    48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)

  • MOV 24Hz APS-C/Pixel (Contd..)

    48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 24Hz APS-C/Pixel (Contd...)

    (3.3K) 3328x2496 (4:3):
    48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 24Hz APS-C/Pixel (Contd....)

    24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 24Hz APS-C/Pixel (Contd.....)

    (FHD) 1920x1080:
    48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • ProRes 59.94Hz Full

    (5.8K) 5776x3056 (17:9):
    29.97p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 1.6Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes 59.94Hz Full (Contd.)

    (C4K) 4096x2160:
    29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes 59.94Hz Full (Contd..)

    (FHD) 1920x1080:
    59.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes 59.94Hz APS-C/Pixel

    (C4K) 4096x2160:
    59.94p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes 59.94Hz APS-C/Pixel (Contd.)

    (3.3K) 3328x2496 (4:3):
    29.97p, 913Mbps (ProRes 422 HQ) / 609Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 730Mbps (ProRes 422 HQ) / 487Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes 59.94Hz APS-C/Pixel (Contd..)

    (FHD) 1920x1080:
    59.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes 50Hz Full

    (5.8K) 5776x3056 (17:9): 25.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes 50Hz Full (Contd.)

    (C4K) 4096x2160: 25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes 50Hz Full (Contd..)

    (FHD) 1920x1080:
    50.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes 50Hz APS-C/Pixel

    (C4K) 4096x2160:
    50.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes 50Hz APS-C/Pixel (Contd.)

    (3.3K) 3328x2496 (4:3):
    50.00p, 1.5Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 761Mbps (ProRes 422 HQ) / 508Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes 50Hz APS-C/Pixel (Contd..)

    (FHD) 1920x1080:
    50.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes 24Hz Full

    (5.8K) 5776x3056 (17:9): 24.00p, 1.6Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes 24Hz Full (Contd.)

    (C4K) 4096x216024.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes 24Hz Full (Contd..)

    (FHD) 1920x1080: 24.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes 24Hz APS-C/Pixel

    (C4K) 4096x2160: 24.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes 24Hz APS-C/Pixel (Contd.)

    (3.3K) 3328x2496 (4:3): 24.00p, 731Mbps (ProRes 422 HQ) / 487Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes 24Hz APS-C/Pixel (Contd..)

    (FHD) 1920x1080: 24.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • MP4 59.94Hz Full

    (4K) 3840x2160: 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

  • MP4 59.94Hz Full (Contd.)

    (FHD) 1920x1080:
    59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

  • MP4 59.94Hz APS-C/Pixel

    (4K) 3840x2160:
    59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

  • MP4 59.94Hz APS-C/Pixel (Contd.)

    (FHD) 1920x1080:
    59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

  • MP4 50Hz Full

    (4K) 3840x2160:
    25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

  • MP4 50Hz Full (Contd.)

    (FHD) 1920x1080:
    50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

  • MP4 50Hz APS-C/Pixel

    (4K) 3840x2160:
    50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

  • MP4 50Hz APS-C/Pixel (Contd.)

    (FHD) 1920x1080:
    50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

Slow & Quick

Jump to...

  • MOV 59.94Hz Full

    (FHD) 1920x1080:
    59.94p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 59.94Hz Full (Contd.)

    23.98p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 59.94Hz APS-C

    (C4K) 4096x2160:
    29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 59.94Hz APS-C (Contd.)

    (4K) 3840x2160:
    29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 59.94Hz APS-C (Contd..)

    (FHD) 1920x1080:
    59.94p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)

  • MOV 59.94Hz APS-C (Contd...)

    29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 50Hz Full

    (FHD) 1920x1080:
    50.00p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 50Hz APS-C

    (C4K) 4096x2160:
    25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 50Hz APS-C (Contd.)

    (4K) 3840x2160:
    25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 50Hz APS-C (Contd..)

    (FHD) 1920x1080:
    50.00p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 24Hz Full

    (FHD) 1920x1080:
    24.00p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 24Hz APS-C

    (C4K) 4096x2160:
    24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 24Hz APS-C (Contd.)

    (4K) 3840x2160:
    24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV 24Hz APS-C (Contd..)

    (FHD) 1920x1080:
    24.00p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

External USB-SSD Recording

Jump to...

  • External USB-SSD Recording

    Yes (ON / OFF)

HDMI Raw Data Output

Jump to...

  • Compatible external devices

    ATOMOS HDMI field monitor/recorder "Ninja V+"

  • Rec quality 59.94Hz Full

    (5.9K) 5888x3312 (16:9):
    29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)

  • Rec quality 59.94Hz APS-C

    (4.1K) 4128x2176 (17:9):
    59.94p, 12-bit (LPCM)
    29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)

    (3.5K) 3536x2656 (4:3):
    29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)

  • Rec quality 50Hz Full

    (5.9K) 5888x3312 (16:9): 25.00p, 12-bit (LPCM)

  • Rec quality 50Hz APS-C

    (4.1K) 4128x2176 (17:9):
    50.00p, 12-bit (LPCM)
    25.00p, 12-bit (LPCM)

    (3.5K) 3536x2656 (4:3):
    50.00p, 12-bit (LPCM)
    25.00p, 12-bit (LPCM)

  • Audio format

    LPCM (2ch 48kHz/24-bit, 96kHz/24-bit) (4ch 48kHz/24-bit, 96kHz/24-bit)

Streaming

Jump to...

  • Wi-Fi 59.94Hz RTMP / RTMPS

    (FHD) 1920x1080:
    59.94p, 16Mbps / 8Mbps (H.264)
    29.97p, 6Mbps / 3Mbps (H.264)

  • Wi-Fi 59.94Hz RTMP / RTMPS (Contd.)

    (HD) 1280x720:
    59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)

  • Wi-Fi 50Hz RTMP / RTMPS

    (FHD) 1920x1080:
    50.00p, 16Mbps / 8Mbps (H.264)
    25.00p, 6Mbps / 3Mbps (H.264)

  • Wi-Fi 50Hz RTMP / RTMPS (Contd.)

    (HD) 1280x720:
    50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)

  • USB 59.94Hz RTMP / RTMPS

    (4K) 3840x2160: 29.97p, 12.5Mbps (H.264)

  • USB 59.94Hz RTMP / RTMPS (Contd.)

    (FHD) 1920x1080:
    59.94p, 16Mbps / 8Mbps (H.264)
    29.97p, 6Mbps / 3Mbps (H.264)

  • USB 59.94Hz RTMP / RTMPS (Contd..)

    (HD) 1280x720:
    59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)

  • USB 50Hz RTMP / RTMPS

    (4K) 3840x2160: 25.00, 12.5Mbps (H.264)

  • USB 50Hz RTMP / RTMPS (Contd.)

    (FHD) 1920x1080:
    50.00p, 16Mbps / 8Mbps (H.264)
    25.00p, 6Mbps / 3Mbps (H.264)

  • USB 50Hz RTMP / RTMPS (Contd..)

    (HD) 1280x720:
    50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)

  • Wired LAN 59.94Hz RTP / RTSP

    (4K) 3840x2160:
    59.94p, 50Mbps / 25Mbps (H.265)
    59.94p, 50Mbps / 25Mbps (H.264)
    29.97p, 25Mbps / 12.5Mbps (H.265)
    29.97p, 25Mbps / 12.5Mbps (H.264)

    (FHD) 1920x1080:
    59.94p, 20Mbps / 16Mbps (H.265)
    59.94p, 16Mbps / 8Mbps (H.264)
    29.97p, 12Mbps / 6Mbps (H.265)
    29.97p, 6Mbps / 3Mbps (H.264)

    (HD) 1280x720:
    59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)

  • Wired LAN 50Hz RTP / RTSP

    (4K) 3840x2160:
    50.00p, 50Mbps / 25Mbps (H.265)
    50.00p, 50Mbps / 25Mbps (H.264)
    25.00p, 25Mbps / 12.5Mbps (H.265)
    25.00p, 25Mbps / 12.5Mbps (H.264)

    (FHD) 1920x1080:
    50.00p, 20Mbps / 16Mbps (H.265)
    50.00p, 16Mbps / 8Mbps (H.264)
    25.00p, 12Mbps / 6Mbps (H.265)
    25.00p, 6Mbps / 3Mbps (H.264)

    (HD) 1280x720:
    50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)

Viewfinder

Jump to...

  • Type

    OLED Live View Finder

  • Pixels

    Approx. 3.68 million dots

  • Field of view / Magnification

    Approx. 100% / Approx. 0.78x with 50mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2

  • Eye point / Diopter adjustment

    Approx. 21mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)

  • Eye sensor

    Yes

  • Display speed

    120fps / 60fps

Rear Monitor

Jump to...

  • Type

    TFT LCD monitor with static touch control

  • Monitor size

    Free-angle, 3.0-inch, 3:2 aspect

  • Pixels

    Approx. 1.84 million dots

  • Field of view

    Approx. 100%

Focus

Jump to...

  • Type

    Phase Detection AF system / Contrast AF system

  • DFD technology

    Yes

  • Focus mode

    AFS (Single) / AFC (Continuous) / MF

  • AF mode

    Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint

  • AF detective range

    EV -6 - 18 (F1.4, ISO100 equivalent, AFS)

  • AF custom setting

    AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction

  • AF assist light

    Yes

  • AF lock

    Set the Fn button in custom menu to AF lock

  • Focus ring control

    Nonlinear / Linear (90 Degree / 120 Degree / 150 Degree / 180 Degree / 210 Degree / 240 Degree / 270 Degree / 300 Degree / 330 Degree / 360 Degree / 720 Degree / 1080 Degree / Maximum)

  • Others

    AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock

  • Others (Contd.)

    Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume

Exposure Control

Jump to...

  • Light metering system

    1,728-zone multi-pattern sensing system

  • Light metering mode

    Multiple / Center Weighted / Spot / Highlight Weighted

  • Metering range

    EV0-18 (F2.0 lens, ISO100 equivalent)

  • Mode dial

    Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M) / Slow & Quick / Custom 1, 2, 3 / Intelligent Auto

  • Exposure compensation

    1/3 EV step +/-5EV ( +/-3EV for motion picture)

  • ISO sensitivity (Standard output)

    (Normal): Auto / 50 / 100-51200 / 102400 / 204800 (1/3 or 1 EV step)
    (V-Log): Auto / 320 / 640-51200 (1/3 or 1 EV step)
    (HLG): Auto / 400-51200 / 102400 / 204800 (1/3 or 1 EV step)

  • Dual Native ISO

    (Normal)
    Native ISO: 100, 640
    Auto: Auto / 50 / 100-51200 / 102400 / 204800
    Low: Auto / 50 / 100-800
    High: Auto / 320 / 640-51200 / 102400 / 204800

    (V-Log)
    Native ISO: 640, 4000
    Auto: Auto / 320 / 640-51200
    Low: Auto / 320 / 640-5000
    High: Auto / 2000 / 4000-51200

  • Dual Native ISO (Contd.)

    (HLG)
    Native ISO: 400, 2500
    Auto: Auto / 400-51200 / 102400 / 204800
    Low: Auto / 400-3200
    High: Auto / 2500-51200 / 102400 / 204800

    (Cinelike D2 / Cinelike V2)
    Native ISO: 200, 1250
    Auto: Auto / 100 / 200-51200 / 102400 / 204800
    Low: Auto /100 / 200-1600
    High: Auto / 640 / 1250-51200 / 102400 / 204800

  • AE lock

    Set the Fn button in custom menu to AE lock

Flash

Jump to...

  • Built-in Flash

    No

Battery

Jump to...

  • Battery Info

    Required, included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    3

Physical

Jump to...

  • Dimensions (W x H x D)

    Without Protrusions: 5.29 x 4.03 x 3.55" (13.44 x 10.24 x 9.02cm)

Other

Jump to...

  • UPC Code

    192223242913

7 Accessories for Panasonic Lumix S5 IIX Mirrorless Camera, Bundle with Zoom Li-on X R2 Flash, Video Tripod, 2x Battery and 128GB Memory Card

  • All Accessories (7)
  • Lenses (1)
  • Transmitters & Receivers (1)
  • Flash & Lighting (4)
  • Flash Accessories (1)
Flashpoint Zoom Li-Ion X PRO R2 TTL Round Flash for Olympus and Panasonic , Godox V1Pro O
Flashpoint Zoom Li-Ion X PRO R2 TTL Round Flash for Olympus and Panasonic , Godox V1Pro O
$329.00
Recommended
Flashpoint Zoom Li-Ion V480O TTL R2 On Camera Flash For Olympus and Panasonic , Godox Ving V480O
Flashpoint Zoom Li-Ion V480O TTL R2 On Camera Flash For Olympus and Panasonic , Godox Ving V480O
$169.00
Recommended
Panasonic LUMIX S 26mm f/8 Lens
Panasonic LUMIX S 26mm f/8 Lens
$297.99
Flashpoint iT22 TTL Portable iFlash for Olympus & Panasonic (Black), Godox iT22 O
Flashpoint iT22 TTL Portable iFlash for Olympus & Panasonic (Black), Godox iT22 O
$39.90
Flashpoint TTL Hot Shoe Riser for Olympus & Panasonic, Godox TR-O
Flashpoint TTL Hot Shoe Riser for Olympus & Panasonic, Godox TR-O
$13.90
Flashpoint Wave Commander II Wireless Shutter Kit for Select Panasonic Cameras
Flashpoint Wave Commander II Wireless Shutter Kit for Select Panasonic Cameras
$49.00
Flashpoint X100 TTL R2 On Camera Li-on Round Head Flash For Panasonic & Olympus, Godox V100 O
Flashpoint X100 TTL R2 On Camera Li-on Round Head Flash For Panasonic & Olympus, Godox V100 O
$349.00

About Panasonic Lumix S5 IIX

Lumix S5 II & S5 IIx Firmware V2.0 Announced

Listening to creators’ needs, S5II Firmware V3.0 and S5IIX Firmware V2.0 deliver efficiency in both production and post-production workflows.

Available to download for free from LUMIX Global Customer Support website on April 21st, 2024 at 9:00 pm ETC.

Learn More

Firmware V2.0 Updates:

  • Compatibility with Adobe Camera to Cloud: By connecting the camera to the internet via Wi-Fi or USB tethering, you can upload still images and proxy videos directly to the Frame.io platform.* *This does not guarantee all of the functions of “Adobe Camera to Cloud”
  • Proxy recording: Simultaneously record a low-bit-rate proxy video with a during video recording, for easier editing and post-production (rough cutting, editing on less powerful devices, or collaborating over the internet)
  • Pre-burst shooting mode: The addition of the [SH PRE] function enables recording of images from the moment the shooter half-presses the shutter button, allowing retroactive burst shooting up to the moment the shutter button is pressed down fully
  • Enhancement of automatic detection function: More accurate human body recognition; and the separate detection for animal eyes; cars and motorcycles have been added to automatic detection
  • Enhancement of Image Stabilizer performance: [HIGH] mode has been added to the E-Stabilization (Video) function, which electronically corrects large shakes when shooting on the move; perspective distortion correction remedies the issues that tend to occur during video recording when using a wide-angle lens

Panasonic LUMIX S5IIX

LUMIX S5IIX is a groundbreaking introduction to the camera industry—hosting an extraordinary amount of value but priced to be accessible to creators at every level. With a new engine, powerful sensor, updated stabilization system and new phase hybrid auto-focus, the LUMIX S5IIX series offers unparalleled flexibility and reliability in both photo and video.

Panasonic LUMIX S5IIX

POINTS OF AUTOFOCUS


The first Phase Detection Autofocus system from LUMIX delivers speed and accuracy to help you capture your target subject even in the most challenging scenes were multiple subjects are involved, as well as in backlit or low-light environments.

IMAGE STABILIZATION

Stability where it counts.

New Active I.S. lets you walk and shoot with the smoothness of a gimbal. By determining the status of camera shake and optimizing horizontal, vertical and rotational correctional ratios, Active I.S. can compensate for even significant camera shake.

S5IIX | Pro Video Powerhouse

The stealthy LUMIX S5IIX will be an industry game-changer for professional video creators. Including all the features of the S5II, but with additional Pro Video additions including ProRes RAW, 800Mbs (USB-SSD) ALL-Intra recording and wired/wireless live streaming.

lumix

New October 2025 Firmware Updates Available

LUMIX Lab App Ver. 2.0
• A new feature, Magic LUT allows users to experience the freedom of creating their own color. Select an image, and in an instant, AI will transform any photo to match the same colors, tones, and overall mood, creating your very own photo style as LUT
• Magic LUT supports JPEG, HEIF and MP4 files taken on not only LUMIX camera but also cameras and smartphones from other brands
• Users can fine-tune the colors before saving it as a LUT for editing and shooting, and even adjust the intensity or opacity in camera

LUMIX Flow App Ver 1.3
LUMIX Flow is now available on LUMIX S5II, S5IIX, and GH7.

New features and enhancements for all compatible models:
• Mirroring feature improvements and support for multiple devices. Up to 4 devices can be connected
• Vertical UI support for external monitors
• Improved cut addition feature. A blank shot can be added as a sub-shot of a selected take or at the very end of the storyboard

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Request a Callback

Chat one-on-one with an expert

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 24.2MP 35mm full-frame CMOS sensor with fast, accurate phase hybrid autofocus
  • High-resolution imaging engine for superior photo and video quality
  • Supports 5.8K Pro-Res, Pro-Res internal, RAW over HDMI, and Wireless/Wired IP streaming
  • Features 779 points of autofocus for clear images in challenging scenes
  • Active I.S. compensates for significant camera shake, offering gimbal-like smoothness

What's in the box:

  • Panasonic Lumix S5 IIX Mirrorless Camera
  • Body Cap
  • Hot Shoe Cover
  • Cover (Battery Grip Connector)
  • Shoulder Strap
  • DMW-BLK22 Battery Pack
  • AC Adapter
  • USB Type-A to Type-C Cable
  • Panasonic 1 Year Limited Warranty
  • Bundle Includes:
  • Zoom Li-on X R2 Flash
  • Video Tripod with Head
  • LED Light
  • 128GB SDXC Card
  • TASC300 Mic
  • Dual Smart Charger
  • 2x DMW-BLK22 Battery
  • Card Reader
  • 2x Charger Plate
  • Cleaning Kit
  • Screen Protector
  • Camera Strap
  • Alpine 190 Backpack
