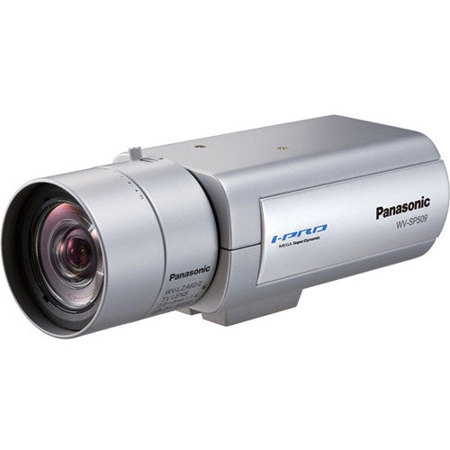

Panasonic WV-SP509 3.1MP 1080p Fixed Network Camera with 5-50mm Auto-Iris Lens
See all Panasonic items

Panasonic WV-SP509 3.1MP 1080p Day/Night Super Dynamic Fixed Network Camera with 5-50mm Auto-Iris Lens, 30 fps, H.264, JPEG, PoE

SKU: PCSP509LMP05

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Panasonic WV-SP509 Specifications

  • Image sensor

    1/3-type MOS sensor

  • Effective Pixels

    Approx. 3.1MP

  • Scanning Mode

    Progressive scan

  • Scanning Area

    Horizontal x Vertical: 0.18 x 0.13" / 4.51 x 3.38mm

  • Minimum Illumination

    Color: 0.5 lux, B/W: 0.06 lux (F1.4, auto slow shutter: Off (1/30sec), Gain: On (high))
    Color: 0.03 lux, B/W: 0.004 lux (F1.4, auto slow shutter: Maximum 16/30sec, Gain: On (high))

  • White Balance

    AWC (2,000 to 10,000 K), ATW1 (2,700 to 6,000 K), ATW2 (2,000 to 6,000 K)

  • Light Control Mode

    Outdoor: Automatic integration of ALC and ELC
    Indoor (50Hz): Automatic integration of ALC and ELC (up to 1/100sec)
    Indoor (60Hz): Automatic integration of ALC and ELC (up to 1/120sec)
    ELC: (up to 1/10,000sec)

  • Shutter Speed

    Fix Shutter: 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 (only at super dynamic off)

  • Super Dynamic

    On / off
    Dynamic Range: 52dB type (Super Dynamic: On, Light Control Mode: Indoor)
    Face Super Dynamic: On / off (Only at Super Dynamic: On)
    Adaptive Black Stretch: On / off (Only at Super Dynamic: Off)

  • Dynamic Range

    52 dB typ. (Super Dynamic: ON, Light Control Mode: indoor)

  • Face Super Dynamic

    ON / OFF (Only at Super Dynamic: ON)

  • Adaptive Black Stretch

    ON / OFF (Only at Super Dynamic: OFF)

  • Automatic gain control

    On (low, mid, high) / off

  • Electronic Sensitivity UP

    Off / auto (maximum 2x (2/30sec), 4x (4/30sec), 6x (6/30sec), 10x (10/30sec), 16x (16/30sec))

  • Day/Night

    IR Mode: Auto1 / auto2 / on / off
    Level: High / low, with external control

  • Digital Noise Reduction

    High / low

  • Video Motion Detection

    4 Areas Sensitivity: 15 steps
    Detection Size: 10 steps

  • Privacy Zone

    Up to 2 zones, gray

  • Upside Down

    ON / OFF

  • VIQS

    Up to 2 zones

  • Camera Title (OSD)

    Up to 20 alphanumeric characters

  • Back Focus Adjustment

    ABF / manual, ABF mode upon color / B&W switching: auto / preset / fix

  • Lens Distortion Compensation

    256 steps

  • Cropping

    H.264(2) / JPEG(VGA or 640 x 360) / JPEG(QVGA or 320 x 180) Up to 4 image capture areas can be specified

  • Camera Control

    Brightness, AUX on / off
    Zoom: 1x, 2x 4x

  • Display Mode

    Spot Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only), 20 characters camera title available

  • Digital Zoom

    1x, 2x, 4x controlled by browser GUI

  • Camera Title

    Up to 20 alphanumeric characters

  • Clock Display

    Time: 12 / 24 hour
    Date: 5 formats on the browser, summer time (auto / manual)

  • Alarm Control

    Reset

  • One Shot Capture

    A Still picture will be displayed on a newly opened window

  • Audio

    Mic (line) Input: On / off
    Volume Adjustment: Low / middle / high
    Audio Output: On / off
    Volume Adjustment: Low / middle / high

  • SD Memory Data Download

    Still or motion Images recorded in the SDHC / SD memory card can be downloaded

  • Menu Language

    GUI / Setup: English, Italian, French, German, Spanish, Russian, Chinese, Japanese, Russian

  • System Log

    Up to 100 (internal), up to 4,000 (SDXC / SDHC / SD memory when the recording format is set to JPEG) error logs

  • Supported OS

    Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows XP SP3

  • Supported Web Browsers

    Windows Internet Explorer 9.0 (32-bit)
    Windows Internet Explorer 8.0 (32-bit)
    Windows Internet Explorer 7.0 (32-bit)
    Microsoft Internet Explorer 6.0 SP3

  • Network IF

    10Base-T / 100Base-TX, RJ-45 connector

  • Network: Image Resolution 1

    Image Capture Mode
    2MP (16:9)
    H.264: 1920 x 1080 / 640 x 360 / 320 x 180, up to 30fps
    JPEG (MJPEG): 1920 x 1080 / 640 x 360 / 320 x 180, up to 30fps

    1.3MP (16:9)
    H.264: 1280 x 720 / 640 x 360 / 320 x 180, up to 30fps
    JPEG (MJPEG): 1280 x 720 / 640 x 360 / 320 x 180, up to 30fps

    1.3MP (4:3)
    H.264: 1280 x 960 / VGA (640 x 480) / QVGA (320 x 240), up to 30fps
    JPEG (MJPEG): 1280 x 960 / VGA (640 x 480) / QVGA (320 x 240), up to 30fps

  • Network: Image Resolution 2

    3MP (4:3)
    H.264: 1,280 x 960, up to 15fps
    JPEG (MJPEG): 2048 x 1536, up to 15fps

  • Network: H.264

    Transmission Mode: Constant bit rate / frame rate priority / best effort
    Frame Rate: 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30fps
    Bit Rate / Client: 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 8,192 / 10,240 / 12,288 / 14,336kbps
    Image Quality: Low / normal / fine
    Refresh Interval: 0.2 / 0.25 / 0.33 / 0.5 / 1 / 2 / 3 / 4 / 5sec
    Transmission Type: Unicast / multicast

  • Network: JPEG

    Image Quality: 10 steps
    Refresh Interval 0.1 to 30fps
    Transmission Type: Pull / push

  • Network: Audio Compression

    G.726 (ADPCM) 32 / 16kbps, G.711 64kbps

  • Network: Audio Mode

    Off / mic (line) input / audio output / interactive (half duplex) / interactive (full duplex)

  • Network: Authentication

    Level 1 only / level 2 higher / all users (for audio)

  • Network: Total Bit Rate

    64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192kbps / unlimited

  • Supported Network Protocol

    IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6,ICMP,ARP
    IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP

  • Network: FTP Client

    Alarm image transmission, FTP periodic transmission
    (When the FTP transmission is failed, backUpon an optional SDXC/SDHC/SD memory card is available.)

  • Network: Number of Simultaneous Users

    Up to 14 users (depends on network conditions)

  • Network: Memory Card

    SDXC / SDHC / SD
    H.264 Recording: Manual REC / alarm REC (pre / post) / schedule REC
    JPEG Recording: Manual REC / alarm REC (post) / backup upon network failure compatible
    SD (SDHC / SDXC) Card: Panasonic 1GB, 2GB, 4GB SDHC card, 8GB SDHC card, 16GB SDHC card, 32GB SDHC card, 64GB SDXC card (except miniSD card and microSD card)model

  • Network: Face Detection

    On / off (with XML notification)

  • Network: Compatibility

    Cellular Phone: JPEG image
    Mobile Terminal: iPad, iPhone, iPod touch (iOS 4.2.1 or later), and Android mobile terminals

  • Alarm Source

    3 terminals input, VMD, command alarm

  • Alarm Actions

    SDXC/SDHC/SD memory recording, E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output

  • Alarm Log

    5,000 logs with SDXC / SDHC / SD memory card or 1,000 logs without SDXC / SDHC / SD memory card

  • Alarm Schedule

    Alarm / VMD / access permission / H.264 recording

  • Lens: Size

    1/3"

  • Lens Type

    10x

  • Lens: Focal Length

    5 to 50mm

  • Lens: Aperture

    f1.4

  • Lens: Iris

    Type: Automatic

  • Lens Mount

    CS

  • Output

    Monitor (for adjustment): 1Vpp / 75Ohms composite, RCA jack

  • Input

    Microphone / Line: Mic in and line in are selectable, Dia. 3.5mm stereo mini jack (monaural input) (applicable microphone: plug-in power type)
    Supply Voltage: 2.5 +/- 0.5V
    Input Impedance: Approx. 2kOhms

  • Audio Output

    Dia. 3.5mm stereo mini jack (monaural output) line level

  • External I/O Terminals

    ALARM IN 1 / DAY/NIGHT IN, ALARM IN 2 / ALARM OUT, ALARM IN 3 / AUX OUT

  • Standard

    Safety / EMC: UL (UL60950-1), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60950-1), DOC (ICES003 ClassA)

  • Power Source and Consumption

    12 VDC: 570mA
    PoE (IEEE802.3af compliant) / PoE 48V: 125mA (Class 2 device)

  • Ambient Operating Humidity

    Less than 90% (no condensation)

  • Ambient Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Dimensions (W x H x D)

    75 x 65 x 132.5mm / 2.95 x 2.56 x 5.22"

  • Weight

    420g / 14.82oz

About Panasonic WV-SP509

• Super high resolution at Full HD/1,920 x 1,080 created by 3.1Megapixel high sensitivity MOS Sensor
• 1080p Full HD images up to 30 fps and 360p image up to 30fps simultaneously
• Combining enhanced "UniPhier", Panasonic's proprietary System LSI platform and 2 areas VIQS (Variable Image Quality on Specified area) function can decrease maximum 50%1 network bandwidth
• Cropping function enables to provide whole image (1,920 x 1,080) and the part image (640 x 360) simultaneously. Up to 4 image capture areas can be specified and it is also possible to control the sequence.
• Multiple H.264 (High profile) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording by enhanced "UniPhier"
• Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 128x wider dynamic range compared to conventional cameras
• Face Super Dynamic Range technology ensures clear face image
• High sensitivity with Day & Night (IR) function:0.5 lx (Color), 0.06 lx (B/W) at F1.4 (WV-SP509)
• Using Panasonic distinctive LDC (Lens Distortion Compensation) function, natural image without distortion can be monitored though using wide angle lens
• ABF ensures stable focus in both color and B/W modes. (WV-SP509)
• Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions
• Progressive scan ensures clear images with less motion blur and no tearing even when the subject is moving
• Superior color reproduction by primary (RGB) color filter
• Electronic sensitivity enhancement: Auto (Up to 16x) / OFF
• Selectable light control modes: Outdoor scene / Indoor scene (50 Hz) / Indoor scene (60 Hz) / ELC / Fixed electronic shutter. Outdoor scene: Electronic shutter and ALC lens iris control are automatically controlled depending on the mode and luminance level. Indoor scene (50 Hz / 60 Hz): Flicker caused by fluorescent lightning will be automatically compensated. ELC: Up to 1/10,000 Electronic shutter is automatically applied for a fix iris lens. Fixed electronic shutter: Up to 1/10,000 fixed electronic shutter can be selectable.
• 3x Extra optical zoom at 360p resolution. (Picture Mode: 2 Mega pixel [16:9] )
• VMD (Video Motion Detection) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size
• Privacy Zone can mask up to 2 private areas, such as house windows and entrances/exits
• 2x, 4x digital zoom controlled by browser
• Camera title display: Up to 20 alphanumeric characters on the browser
• Alarm sources including 3 terminal input, VMD and Panasonic alarm command can trigger actions such as SDXC/SDHC/SD memory recording(WV-SP509), FTP image transfer, E-mail notification, Indication on browser, Alarm terminal output and Panasonic alarm protocol output
• Full duplex bi-directional audio allows interactive communication between camera site and monitoring site. (WV-SP509)
• JPEG Image compression ratio can be changed by alarm so that higher quality image can be provided
• Prioritized stream control: One of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate
• SDXC/SDHC/SD Memory card slot for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network failure (JPEG) (WV-SP509)
• H.264 max. bit rate/client and Total bit rate control allows flexible network traffic management. Frame rate priority mode controls bit rate and compression ratio to provide the specified frame rate
• Internet mode: H.264 images can be transmitted over HTTP protocol
• Multi-language: English / Italian / French / German / Spanish / Russian / Chinese / Japanese
• IPv4/IPv6 protocol supported
• Supports SSL, DDNS (viewnetcam, RFC2136)
• Still images (JPEG) can be viewed on mobile phones via the Internet
• Onvif compliant model
• Fog compensation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Panasonic WV-SP509 3.1MP 1080p Day/Night Super Dynamic Fixed Network Camera with 5-50mm Auto-Iris Lens
  • Installation Guide
  • CD-ROM
  • Code Label
  • Power Cord Plug
  • Safety Wire
  • Safety Wire Plate for Ceiling
  • Safety Wire Lug for Wall
  • 2x Wire Lug Fixing Screws (M2.5 x 8) (Includes 1 Spare)
  • Washer
  • Spring Washer
  • Panasonic 3 Year Limited Warranty
