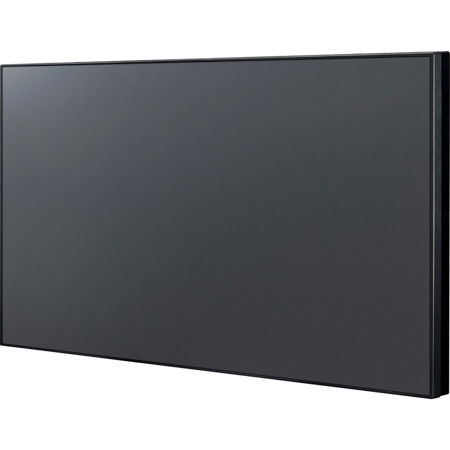

Panasonic TH-55LFV8U 55" Class Full HD Ultra-Narrow Bezel IPS Direct LED Video Wall Display

SKU: PCTH55LFV8U MFR: TH-55LFV8U
Earn VIP Reward Points

Key Features

  • Create stunning video walls with this 55" Panasonic display's ultra-narrow bezel.
  • Enjoy vivid images on this Full HD commercial monitor with a bright 500 cd/m display.
  • Achieve seamless multi-screen setups, up to 10x10, using the display's daisy chain feature.
  • This reliable IPS Direct-LED display panel offers consistent image quality and wide viewing angles.
  • Optimize presentations with versatile connectivity options, including HDMI and DisplayPort inputs.
  • Rely on this Panasonic commercial display for 24/7 operation in demanding environments.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Panasonic TH-55LFV8U Specifications

Display Panel

Display Panel

Jump to...
  • Screen Size (Diagonal)

    54.6" (1386.84mm)

  • Panel Type / Backlight

    IPS / Direct-LED

  • Aspect Ratio

    16:9

  • Effective Display Area (W x H)

    47.6 x 26.7" (1209.04 x 678.18mm)

  • Resolution (H x V)

    1920 x 1080

  • Brightness

    500 cd/m2

  • Contrast Ratio

    1400:1 (typ)

  • Dynamic Contrast Ratio

    500000:1

  • Viewing Angle (H/V)

    178/178 deg. (CR>=10)

  • Max. Display Colors

    Approx. 1.07 Billion

  • Response Time

    12 ms (typ) (G to G)

  • Panel Life

    Approx. 60000 hours (typ)

  • Panel Surface Treatment

    Anti-glare treatment (haze 10%)

Connection Terminal

Jump to...
  • Video In

    1x BNC (shared with component in)

  • Audio In (L/R)

    1x Stereo mini jack (M3) set (shared with component in)
    1x Stereo mini jack (M3) set (shared with video in)
    1x Stereo mini jack (shared with PC in)
    1x Stereo mini jack (shared with DVI-D in)

  • HDMI In

    2x HDMI type A

  • Component (R/G/B)

    1x BNC

  • DVI-D In

    1x DVI-D 24-pin (female)

  • DisplayPort

    In: 1x DisplayPort (Dp1.1a/DP1.2)
    Out: 1x DisplayPort (Dp1.1a/DP1.2)

  • PC Input

    1x Mini D-Sub 15-pin (female)

  • USB

    1 x USB 2.0 Type-A, 5 VDC/500 mA (USB 3.0 is not supported)

  • Serial In/Out

    1 x 2.5 mm Stereo mini jack / 1 x 2.5 mm Stereo mini jack
    RS-232C compatible

  • DVI-I (DVI-D / VGA) OUT

    DVI-I 29-pin x 1 (Female)

  • LAN

    1x RJ45, 10BASE-T / 100BASE-TX, Compatible with PJLink

  • IR

    In/Out: 1 x Stereo mini jack / 1 x Stereo mini jack

  • Audio Out

    1x Stereo Mini Jack (M3) (0.5 V [rms])

  • External Speaker

    8 Ohms, 20 W (10 W + 10 W) / 10% THD

Electrical

Jump to...
  • Power Requirements

    100 to 240 VAC, 50/60 Hz

  • Power Consumption

    320 W

  • Consumption in On Mode

    218 W

  • Power Consumption Stand-By/Sleep

    0.5 W

  • Apparent power

    330 VA

Mechanical

Jump to...
  • Bezel Width

    L/T : approx. 0.089" (2.25 mm), R/B : approx. 0.050" (1.25 mm)

  • Pitch for Wall-Hanging

    VESA Compliant 15.8" x 15.8" (400 x 400 mm)

  • Cabinet Material

    Metal

Installation

Jump to...
  • Orientation

    Landscape/portrait

  • Tilting Angle Adjustment

    Vertical Only

Environmental

Jump to...
  • Operating Environment

    Temperature: 32 to 104 deg. F (0 to 40 deg. C)
    Humidity: 20 to 80% (non-condensation)
    Altitude: 0 to 9186' (0 to 2800 m)

  • Storage Environment

    Temperature: -4 to 140 deg. F (-20 to 60 deg. C)
    Humidity: 5% to 95% (No condensation)
    Altitude: 0 to 29528' (0 to 9000 m)

Certifications

Jump to...
  • Safety Regulations

    UL 60950-1 2nd Edition, CAN/CSA-C22.2 No 60950-1-07

  • Radiation Regulations

    FCC 47 CFR, Part 15, Subpart B Class A ICES-003

Remote Control

Jump to...
  • Power Requirements

    DC 3 V (2 x AAA/R03/UM4 type batteries)

  • Operating distance

    Approx. 23' (7.01m)

Main Functions

Jump to...
  • Daisy Chain

    DisplayPort, DVI-D, VGA - DVI-I, Serial, IR

  • Multi Screen

    NxM, up to 10 x 10

  • Pre Calibration

    Done

  • Operating Time

    24 hours/day

General

Jump to...
  • Dimensions (WxHxD)

    Display: 47.8 x 27 x 3.8" (1213.4 x 684.2 x 95 mm)
    Remote Control: 1.97 x 7.88 x 0.91" (5.00 x 20.02 x 2.31cm)

  • Weight

    Display: approx. 66.1 lbs (29.98kg)
    Remote Control: approx. 0.24 lbs (0.11kg) including batteries

  • UPC Code

    00885170314726

About Panasonic TH-55LFV8U

For professionals seeking a high-performance, 4K video wall solution, the TH-55LFV8U 55" Class Full HD Ultra-Narrow Bezel IPS Direct LED Video Wall Display offers an exceptional viewing experience. This frameless video wall display boasts an ultra-narrow bezel, reducing the bezel-to-bezel distance to a nearly invisible 3.5mm (0.14"). This feature enhances the seamless integration of multiple screens, creating a virtually borderless display that delivers spectacular large-format images.

Equipped with two systems for 4K (3840 x 2160, 30p) output, this video wall display supports both MST (Multi Stream Transport) and SST (Single Stream Transport) configurations. The MST system enables dot-by-dot display of 4K images in a 2 x 2 multi-screen layout, while the SST system allows for enlarged display of 4K images across multiple screens.

The TH-55LFV8U features a high-resolution IPS (In-Plane Switching) panel, ensuring clear visibility from all angles. This is crucial for signage applications and control rooms where clear visibility is paramount. The IPS panel also maintains true color accuracy across a wider proportion of the specified 178-degree viewing angle compared to conventional VA panels.

An Anti-Glare (AG) surface treatment on the LCD Video Wall Series displays scatters reflected light, enhancing visibility and screen clarity. The display also features a highly efficient direct-lit LED backlighting with Local Dimming, delivering a high 500,000:1 contrast performance. This backlight optimization deepens blacks and boosts whites in individual scenes, resulting in a more immersive and realistic picture quality.

Designed for 24/7 reliability, the TH-55LFV8U can be used in either landscape or portrait modes without affecting color, brightness, or operational life. This flexibility allows for maximum utilization of installation space. The display also supports color calibration, with colors pre-calibrated prior to factory shipment to minimize color differences between displays for multi-screen use.

The TH-55LFV8U also features a user memory function, allowing for the storage and retrieval of color-adjusted data, and a multi-display function that can enlarge images up to 100 times their original size. An optional precision video-wall mounting system and optional ET-SWA100 Series Early Warning Software further enhance the efficiency and reliability of this high-impact video wall display.

Panasonic TH-55LFV8U Features

  • 55", 500 cd/m2, 3,5 mm bezel to bezel, anti-glare surface
  • DisplayPort UHD daisy chain functionality
  • A super narrow frame for optimal multi-screen layouts
  • Ideal for installation in standard indoor places, wide color viewing angle and high visibility

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Create stunning video walls with this 55" Panasonic display's ultra-narrow bezel.
  • Enjoy vivid images on this Full HD commercial monitor with a bright 500 cd/m display.
  • Achieve seamless multi-screen setups, up to 10x10, using the display's daisy chain feature.
  • This reliable IPS Direct-LED display panel offers consistent image quality and wide viewing angles.
  • Optimize presentations with versatile connectivity options, including HDMI and DisplayPort inputs.
  • Rely on this Panasonic commercial display for 24/7 operation in demanding environments.

What's in the box:

  • Panasonic TH-55LFV8U 55 " Class Full HD Ultra-Narrow Bezel IPS Direct LED Video Wall Display
  • 78.8 " Power Supply Cord
  • Remote Control Transmitter
  • 2x Batteries (AAA/R03/UM4 Type)
  • 3x Clamper
  • IR Receiver Cable
  • IR Daisy Chain Cable
  • RS232C Convert Cable
  • RS-232C Daisy Chain Cable
  • DisplayPort Cable
  • CD-ROM/User Manual
  • Operating Instructions
  • Panasonic 2 Year Part and Labor Limited Warranty
