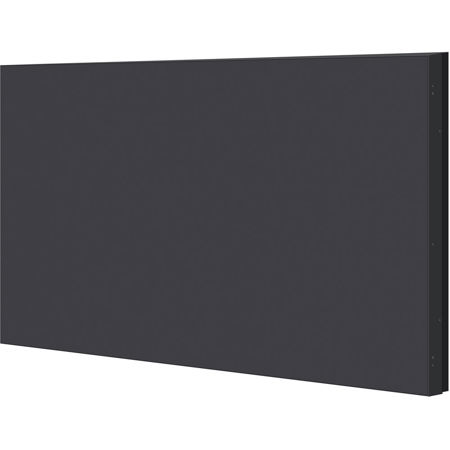

Panasonic TH-55VF1HU 55" Class Full HD Ultra Narrow Bezel IPS Direct LED Video Wall Display with Built-In Speakers

SKU: PCTH55VF1HU MFR: TH-55VF1HU
Earn VIP Reward Points

Key Features

  • Experience seamless video walls with the TH-55VF1HU's ultra-narrow bezel display.
  • Enjoy Full HD resolution and vibrant images on this 55" Panasonic commercial monitor.
  • This display features a bright 700 cd/m2 panel, perfect for high-visibility environments.
  • Rely on the IPS panel for wide viewing angles and consistent color in any video setup.
  • Connect multiple devices using HDMI, DVI-D, and DisplayPort inputs on this reliable display.
  • Built-in speakers enhance presentations, making this Panasonic display ideal for business use.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Panasonic TH-55VF1HU Specifications

Display Panel

Display Panel

Jump to...
  • Screen Size (Diagonal)

    54.6" (1387 mm)

  • Panel

    IPS

  • Backlight

    Direct LED

  • Aspect Ratio

    16:9

  • Effective Display Area (W x H)

    47.6 x 26.7" (1209.04 x 678.18mm)

  • Resolution

    1920 x 1080

  • Brightness

    700 cd/m2 (typ)

  • Contrast Ratio

    1200:1 typical

  • Viewing Angle

    178 x 178 deg. (CR>=10)

  • Response Time

    8 ms (typ) (G to G)

  • Panel Life

    Approximately 60,000 hours typical

  • Panel Surface

    Anti-glare type (Haze 44%)

Connection Terminals

Jump to...
  • HDMI In

    1x HDMI type A connector
    Linear PCM (Sampling Frequency: 48 kHz/44.1 kHz/32 kHz)

  • Component (R/G/B)

    1x BNC set
    Y/G: BNC Contact Plug with sync 1 V p-p, 75 Ohms
    PB/CB/B: BNC Contact Plug without sync 0.7 V p-p, 75 Ohms
    PR/CR/R: BNC Contact Plug without sync 0.7 V p-p, 75 Ohms

  • Audio In

    1 x L/R pin jack (shared with VIDEO IN), 0.5 Vrms
    1 x L/R pin jack (shared with COMPONENT /RGB IN Y/G), 0.5 Vrms
    Stereo mini jack (M3) (shared with PC IN), 0.5 Vrms
    Stereo mini jack (M3) (shared with DVI-D IN), 0.5 Vrms

  • Video In

    1x BNC (shared with COMPONENT/RGB IN Y/G)
    1.0 V p-p (75 Ohms)

  • DVI-D In

    2x DVI-D 24-pin
    Compliance with DVI Revision 1.0
    Compatible with HDCP 1.1

  • PC In Connector

    1x Mini D-sub 15-pin (female)
    Y/G: with sync 1.0 V p-p (75 Ohms)
    Without sync 0.7 V p-p (75 Ohms)
    PB/CB/B: 0.7 V p-p (75 Ohms)
    PR/CR/R: 0.7 V p-p (75 Ohms)
    HD/VD: 1.0 - 5.0 V p-p (high impedance)

  • DisplayPort

    1x DisplayPort (DP1.1, dual mode only)

  • Serial In/Out

    1x Input: D-sub 9-pin, 1x RS-232C compatible

  • Digital Link

    Input: 1 x RJ45, Long Reach Mode (Shared with LAN IN)
    Output: 1 x RJ45 (Shared with LAN OUT)

  • LAN In/Out

    1 x RJ45 in, 1 x RJ45 out 100BASE-TX, compatible with PJLink

  • IR

    1x Mini jack (M3) input
    1x Output

  • Audio Out

    1x pin jack
    Variable (- infinity - 0 dB) (1 kHz 0 dB Input,10 k Ohms load)
    0.5 Vrms

  • USB

    USB 2.0 type-A connector 5 VDC/1 A (USB 3.0 is not supported)

  • Speaker

    8 Ohms, 20W (10W + 10W), 10% THD

Electrical

Jump to...
  • Power Requirements

    110 to 127 VAC 50 Hz / 60 Hz

  • Power Consumption

    300W

  • Consumption in On Mode

    120W

  • Power Off Condition

    Approximately 0W

  • Stand-by Condition

    Approximately 0.5W

  • Apparent Power

    302 VA

Mechanical

Jump to...
  • Bezel Width

    Top/Right/Left/Bottom: 0.036" (0.9 mm)

  • VESA Compliant

    15.8 x 15.8" / 400 x 400 mm (Installed by: M6 screws / Screw Hole Depth 0.4" (10 mm))

  • Cabinet Material

    Metal

Environmental

Jump to...
  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C) for up to 4593' (1400 m) altitude
    32 to 95 deg. F (0 to 35 deg. C) for between 4593' (1400 m) and 9186' (2800 m) altitude

  • Operating Humidity

    10 to 90% (non-condensation)

  • Altitude

    0 to 9186' (0.00 to 2799.93m)

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Storage Humidity

    10 to 90% (no condensation)

Installation

Jump to...
  • Orientation

    Landscape/portrait

  • Tilting Angle

    Vertical Only

Certifications

Jump to...
  • Safety Regulations

    UL 60950-1 2nd Edition, CAN/CSA-C22.2 No. 60950-1-07

  • Radiation Regulations

    FCC 47 CFR, Part 15, Subpart B Class A, ICES-003

Remote Control

Jump to...
  • Power Requirements

    DC 3 V (2 x AAA/R03/UM4 type batteries)

  • Operating distance

    Approx. 23' (7.01m)

Functions

Jump to...
  • Main Functions

    DIGITAL LINK: Yes
    Daisy Chain: DIGITAL LINK, RS-232C, IR
    USB Media Player: Yes
    Failback/Failover: Yes
    Data Cloning: Yes
    Digital ZOOM: Yes
    Multi display settings: Yes
    Power on screen delay: Yes
    Auto setting: Yes
    Screensaver: Yes
    PC/DVI/HDMI/DIGITAL LINK power management: Yes
    Power save: Yes
    6-segment color management: Yes
    Color enhancement: Yes
    Refine enhancer: Yes
    Gradation smoother: Yes

  • Main Functions (Cont.)

    Frame control: Yes
    Reverse scan: Yes
    Multi Dynamic backlight: Yes
    Long life mode / Auto brightness adjustment: Yes
    AMX D.D.: Yes
    Crestron Connected: Yes
    Extron XTP: Yes
    WEB Browser control: Yes
    PJLink: Yes
    Operating Time: 24h/7d
    Pre-calibration: Done
    Early Warning Software compatible: Yes
    Multi Monitoring & Control Software compatible: Yes

General

Jump to...
  • Dimensions (WxHxD)

    Display: 47.7 x 26.9 x 3.9" (121.16 x 68.33 x 9.91cm)
    Remote Control: 1.9 x 5.7 x 1.1" (4.83 x 14.48 x 2.79cm)

  • Weight

    Display: approx. 56 lbs (25.40kg)
    Remote Control: approx. 4.1 oz (116.23g) including batteries

  • UPC Code

    00885170290648

About Panasonic TH-55VF1HU

Under the umbrella of advanced electronics, the TH-55VF1HU 55" Class Full HD Ultra Narrow Bezel IPS Direct LED Video Wall Display with Built-In Speakers stands out as a state-of-the-art solution for video wall installations. This high-end product features a frameless backlight flat panel, delivering brilliant picture quality that's perfect for both signage and corporate applications.

The TH-55VF1HU boasts our thinnest video wall bezel yet, with a reduced bezel-to-bezel distance of a nearly invisible 1.8 mm. This design feature ensures that even when viewed up close, screen borders are virtually undetectable, resulting in large-format images that are truly spectacular.

Equipped with high-resolution IPS (In-Plane Switching) panel technology, this video wall display guarantees clear visibility from all angles. This is a crucial feature for signage applications and control rooms where maintaining clear visibility is paramount at all times.

The TH-55VF1HU also incorporates DIGITAL LINK technology, based on HDBaseT, which simplifies installation while reducing costs. This feature supports audio, video, and control signal transmission over long distances, and can also be used to daisy-chain displays via a single cable.

For digital signage applications, the TH-55VF1HU is highly adaptable. Simply connect USB memory devices to inputs on each display in a 2x2 multi-screen configuration for automatically synchronized 4K (4 x 1080p) images. Additionally, media updates can be easily managed via LAN.

In summary, the TH-55VF1HU 55" Class Full HD Ultra Narrow Bezel IPS Direct LED Video Wall Display with Built-In Speakers is a cutting-edge solution that delivers superior image quality, seamless integration, and user-friendly functionality.

Panasonic TH-55VF1HU Features

  • 55", 700 cd/m2, 1.8 mm bezel to bezel
  • A ultra narrow frame for optimal multi-screen layouts
  • Ideal for installation in bright places thanks to its 700 cd/m2, wide color viewing angle with glossy finish surface
  • Durable failover and failback function with simplified workflow solution

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience seamless video walls with the TH-55VF1HU's ultra-narrow bezel display.
  • Enjoy Full HD resolution and vibrant images on this 55" Panasonic commercial monitor.
  • This display features a bright 700 cd/m2 panel, perfect for high-visibility environments.
  • Rely on the IPS panel for wide viewing angles and consistent color in any video setup.
  • Connect multiple devices using HDMI, DVI-D, and DisplayPort inputs on this reliable display.
  • Built-in speakers enhance presentations, making this Panasonic display ideal for business use.

What's in the box:

  • Panasonic TH-55VF1HU 55 " Class Full HD Ultra Narrow Bezel IPS Direct LED Video Wall Display
  • 79 " AC Cord
  • Remote Control
  • 70.9 " External IR Receiver
  • 79 " LAN Cable (CAT5e)
  • 2x AAA Batteries
  • 3x Clamper
  • CD-ROM/User Manual
  • Operating Instructions
  • Panasonic 2 Year Part and Labor Limited Warranty
